G Mono/Single Screw Pump/ Progressive Cavity Pump for Slurry and Oil

1.Product Show2. Working principleG single screw pump consists of suction, discharge, working part (Rotor and Stator), driving part, universal joint part seal assembly and bearing seat. The working part is composed of rotating eccentric rotor and sta

Technical Feature

  • Shanghai, China
  • 5000 Sets / Year
  • L/C, T/T
  • Single Screw Pump
  • Single Suction
  • Horizontal
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~500

PRIMARY PARAMETERS

Model NO.
G series
Trademark
Xinglong
Transport Package
Plywood Packing
Origin
China
HS Code
8413604090

DETAIL DESCRIPTION

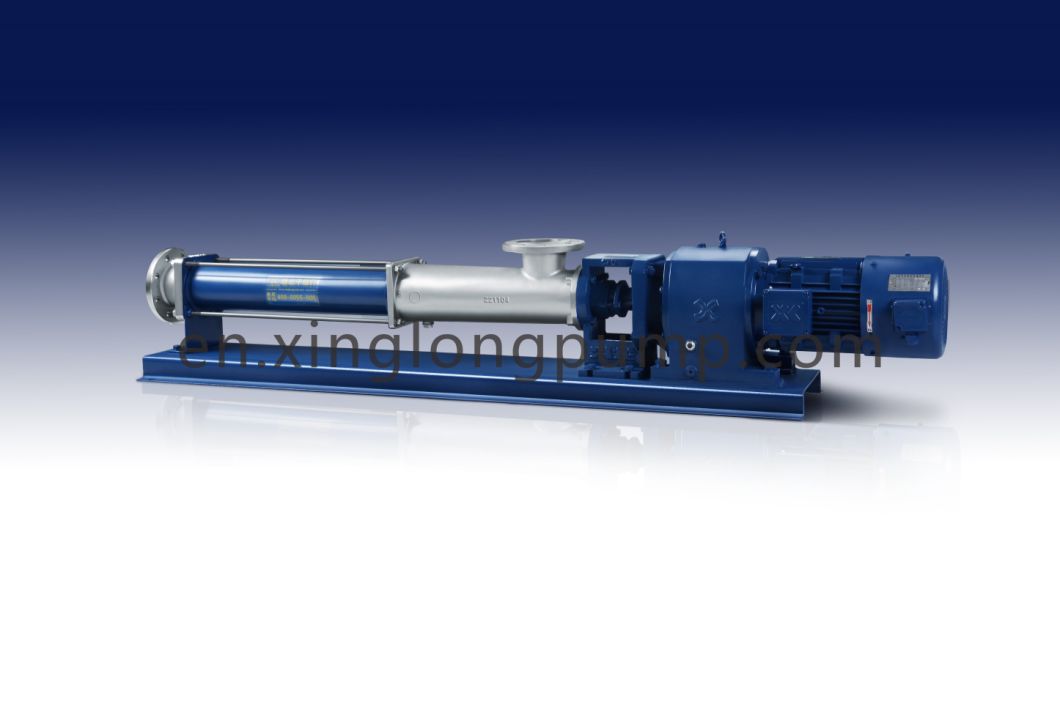

1.Product Show
G Mono/Single Screw Pump/ Progressive Cavity Pump for Slurry and Oil
2. Working principle
G single screw pump consists of suction, discharge, working part (Rotor and Stator), driving part, universal joint part seal assembly and bearing seat. The working part is composed of rotating eccentric rotor and stator. The rotor and stator have two contact points in every transverse section. These contact points from two sealing lines along the working parts of rotor (or stator).Thus comes into one or a few sealing chambers when the rotor rotating. The media entering the sealing chamber remove smoothly from suction end to discharge end along the sealing chamber. During the whole running, the pressure pulsation is very low which has no any effect upon the intrinsic construction of pumped media.

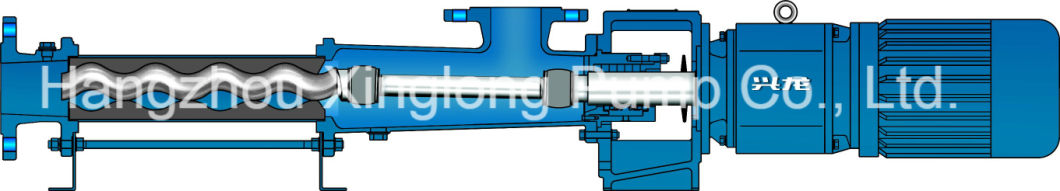

3.Structure
G Mono/Single Screw Pump/ Progressive Cavity Pump for Slurry and Oil
4.Technical parameter
XG serial(1 stage pump)
ModelPressure
(Mpa)
Head
(m)
Speed
(r/min)
Capacity
(m3 /h)
Power
(Kw)
Inlet
(mm)
Outlet
(mm)
XG030B01Z0.66032410.555050
XG035B01Z0.6603241.81.16565
XG040B01Z0.6603243.82.28080
XG050B01Z0.6603247.748080
XG060B01Z0.66032411.65.5100100
XG070B01Z0.66032416.17.5125125
XG085B01Z0.6602923011150150
XG090B01Z0.6602624215150150
XG105B01Z0.6602384715150150
XG135B01Z0.6601968330200200
XG150B01Z0.66019613445250250
XG170B01Z0.66015616655250250
5. Application Area
Environmental engineering: Delivering water and coal slurry,water and coke slurry and slime. Metering dose of flocculation and other chemical compound. Delivery of dewatered sludge ; Delivery of all kind of sewage.
Paper Making Industry: Dregs slurry and waste water treatment; metering for chemical slurry; Spreading and coloring process; Delivery of medium consistency pulp(10-25%)
Oil Industry: Viscous oil delivery; Mixed delivery of oil and air; Separated oil from water and waste oil recovery system; Sewage treatment; Polymer delivery.
Chemical Industry:  Various pasted liquids; Various milky liquids; Various suspending liquid; Liquids which contain air or solid; Liquids which can't be churned or sheared.
Mine Industry: Producing and preparing the titanium white powder,kaolin and carbonate.
Food Industry: Milk products; Fruit juice, mashed fruit, vegetable slurry; meat gruel and flavoring

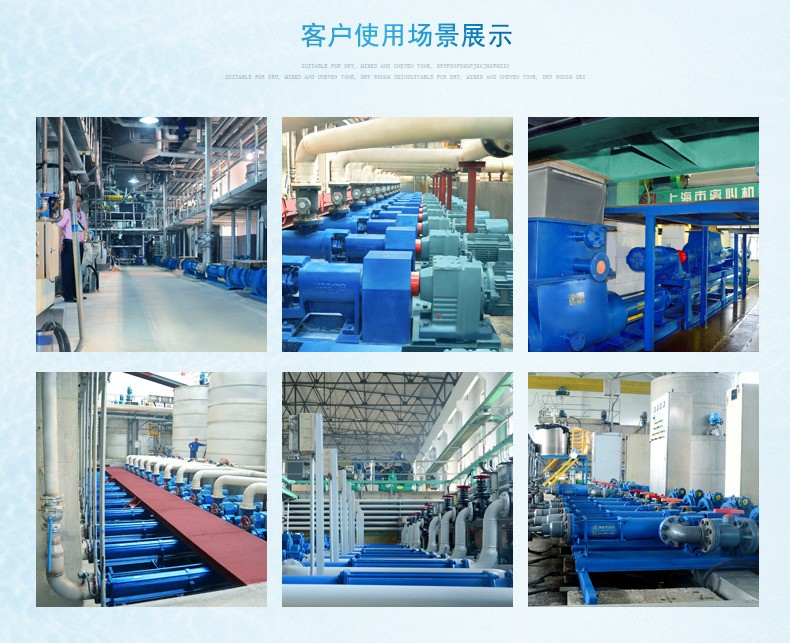

6.Pump on site
G Mono/Single Screw Pump/ Progressive Cavity Pump for Slurry and Oil
7.Certification
G Mono/Single Screw Pump/ Progressive Cavity Pump for Slurry and Oil
8. Contact us
Mobile: (+86 ) 18248497732
Website: http://www.xinglongpump.com
Hangzhou Xinglong Pump Co.,Ltd.
Add : No. 1, Fengcheng Road, Pingyao Town, Yuhang District, Hangzhou
Tell:(86)-571-88548058  Fax: (86)-571-88548016




Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

Products From Supplier

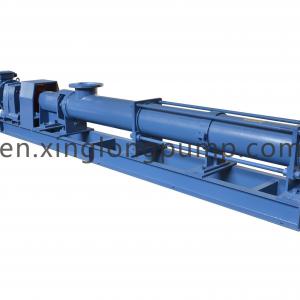

Single Screw Mono Pump

Single screw pumpXG, XL seriesLike Netzsch NM, N series(1). Single screw pump1. Horizontal installation2. The special gear decelerated motor drive makes the structure more compact and reliable. 3. Equip with the electric or mechanical timing device

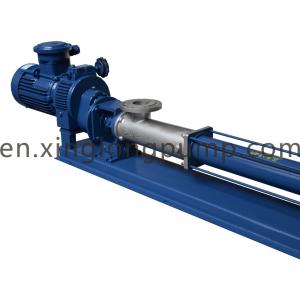

Rotor Sewage& Sludge Deposing High Quality Cavity Single Screw Pump

1.  Product Show2. Features- It is applicable to conveying of media free from solid particles- Continuous conveying, small pressure pulsation- Low noise, long service life- Strong suction capacity, auxiliary equipment without the need for vacuumiza

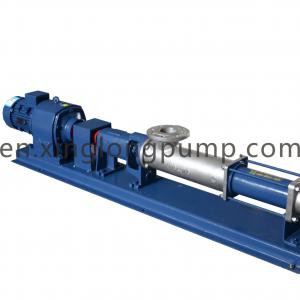

Progressive Cavity Pump, Single Screw Pump for Mashed Potatoes

1.Product Show2.Working principleG single screw pump consists of suction, discharge, working part (Rotor and Stator), driving part, universal joint part seal assembly and bearing seat. The working part is composed of rotating eccentric rotor and stat

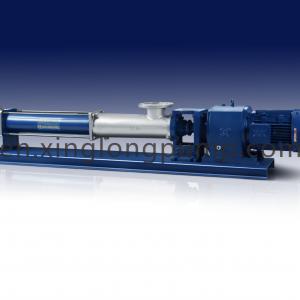

Xinglong Progressive Cavity Single Screw Pump

Quick DetailsPlace of Origin: Zhejiang, China (Mainland),Brand Name: Xinglong  Model Number: XS series, XS09D070J21Theory: Rotary Pump  Structure: Screw PumpPower: ElectricUsage: Deliver all kinds of fluid mediaStandard or Nonstandard: NonstandardF

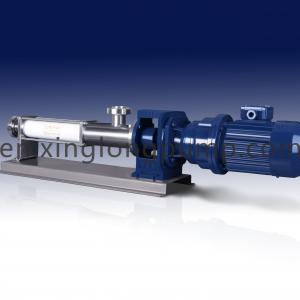

Food Grade Sanitary Single Screw Pump
