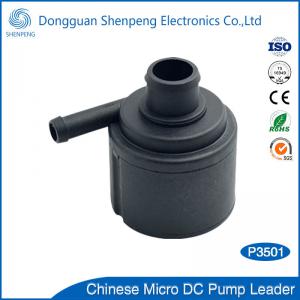

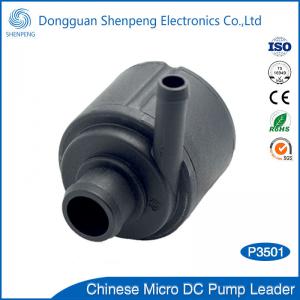

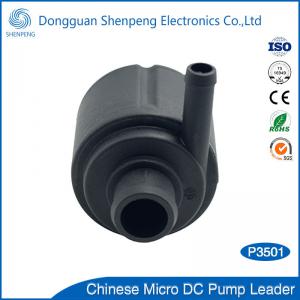

Mini 12v 24v health care equipment water pump.
| Type | P3501 |
| Rated Voltage | 12V / 24V |
| Voltage Range | 8-20V / 12-30V |
| Max Flow | 2.5L/min, 2L/min |
| Max Lift | 2.5m / 2m |
| Max Noise | 30dB / 32dB |
| Motor Type | DC Brushless Motor |
| Food Grade(Y/N) | N |
| Liquid Temperature | 0-100ºC |
| Ambient Temperature | -25-70ºC |
| Pump Theory | Centrifugal Pump |
| Medium | Hot or cold water, oil |
| Protection Level | IP55 / IP68 |
| Using Place | Indoor / Outdoor |
| Power Consumption | 5W / 6W |
| Service Life | 20000 hours |
| OD of inlet | ∅15.0mm |
| OD of Outlet | ∅7.6mm |
| Dimension | 42.2*47.5*35mm |
| Power supply | Battery / Electric / Solar panel |
| Structure | Single-stage |
| Material | XYRON PPE |
| Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
| Remarks | Not self-priming |
