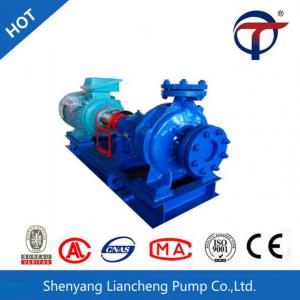

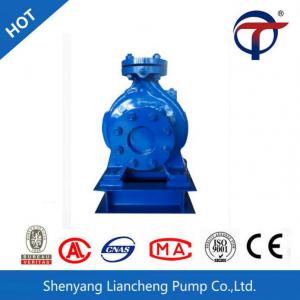

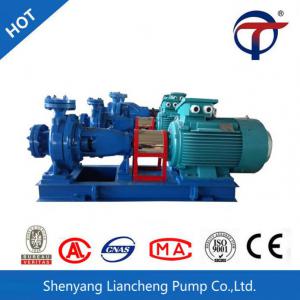

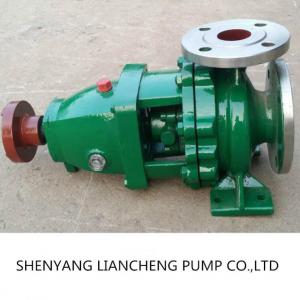

Pump Name: IH chemical pump
Application:
IH type chemical pump used in chemical industry, petroleum, metallurgy, electric power, food, pharmaceutical,
synthetic fiber and other industrial sectors conveying corrosive medium, can meet in chemical process in
conveying a corrosive viscosity similar to liquid water.
Product Description:

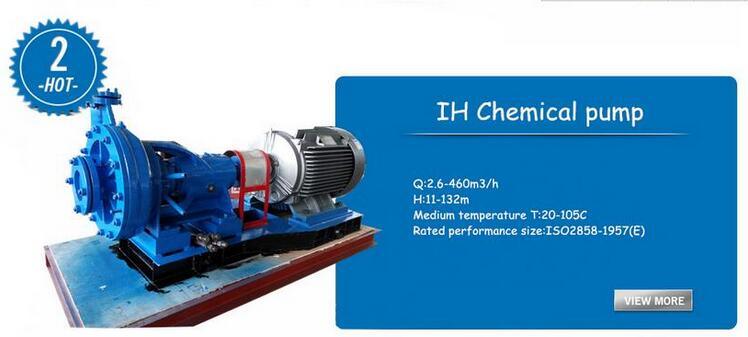

Performance range:
- Flow: Q=2.6-460m3/h
- Head: H=11-132m
- Medium Temperature:T=20-105ºC

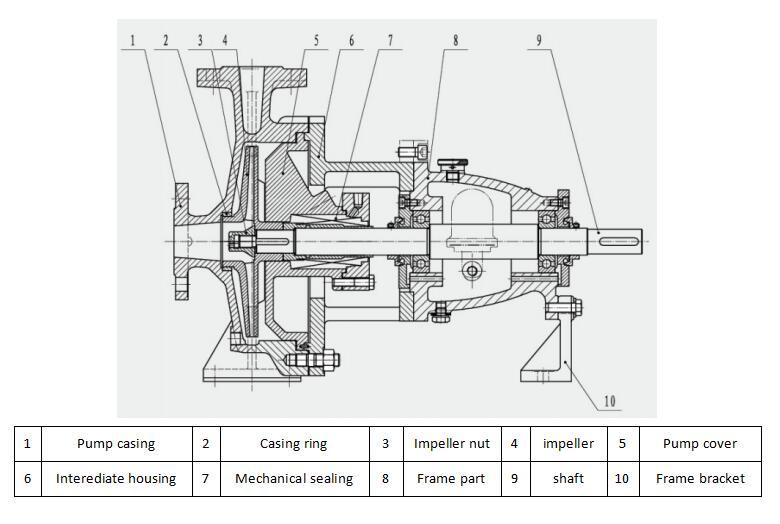

Structure:
- 1.Rated performance and the size of pump depends on ISO2858-1975 (E);
- The size of cavity for assembling mechanical seal and soft packing depends on ISO3069-1974(E);
- The structure do not need disassemble the piping system can remove the rotor parts for
- maintenance.
- The pump's discharge and pipeline located at the middle top of the pump, the pump body strength
even with small vibration and Low noise
Medium transfer:
Organic acid and inorganic acid, such as sulfuric acid,hydrochloric acid and phosphoric acid, etc.Alkaline solution of various concentrations of sodium hydroxide and sodium carbonate.All kinds of liquid petroleum products, organic and other corrosive materials and products.
Model implication:
IH:International standard chemical pump system products;
65:Pump's suction diameter.(mm);
50:Pump's discharge diameter.(mm);
160:In the name of the impeller diameter(mm);
A:The same model impeller was cut by one time;
S1 :Pump sealing form is S1 -- single end mechanical seal;

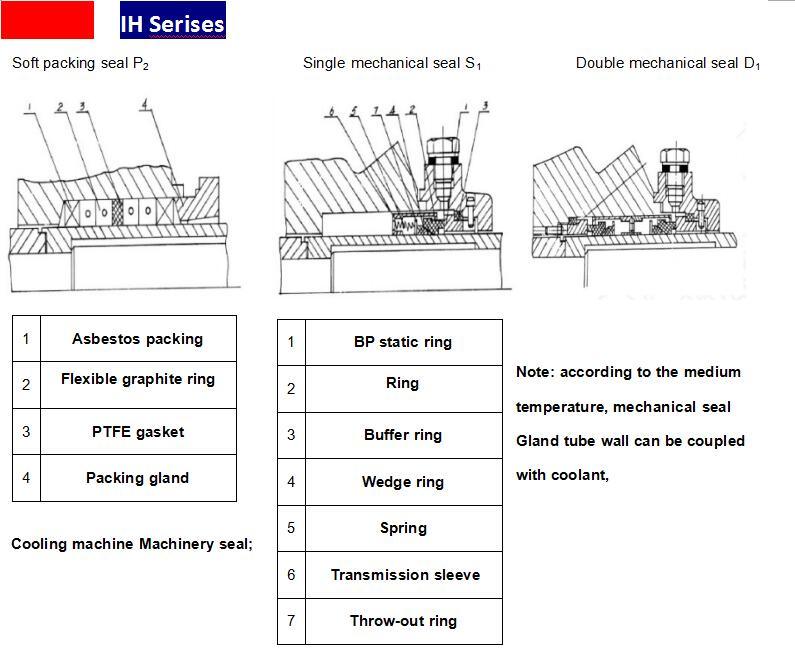

Sealing structure :
According to the corrosion resistant ability and use temperature, the pump of the main components of material can be divided into the following:
| Material | TA3 | 1Cr18Ni9 | 1Cr18Ni12Mo2Ti | HT20-40 |
| Code | T | B(303) | M(307) | H |
prime mover for clockwise rotation viewed;
