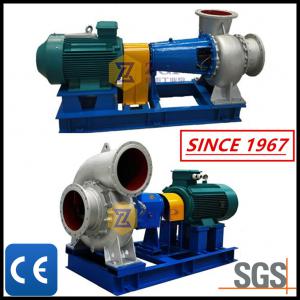

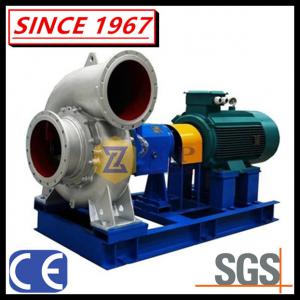

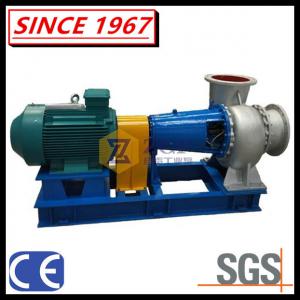

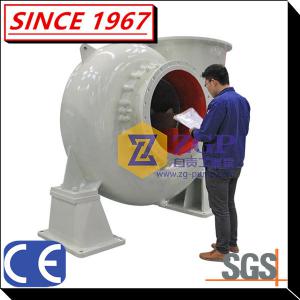

China Horizontal Duplex Stainless Steel Chemical Centrifugal Mixed Flow Pump, Chemical Process Pump, Ss Centrifugal Industria

Brief introduction:The hydraulic model of ZHH mixed flow pump is optimized by CFD,with the advantages of stable,high efficiency,energy-saving and low operating cost. The ZHH series has full specifications,its pump diameter is from 200 mm to 900 mm,an

Technical Feature

  • Shanghai, China
  • 11000 PCS/Year
  • L/C, T/T
  • 19 M
  • 8300 M3/H
  • Motor
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~30

PRIMARY PARAMETERS

Model NO.
ZHH
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Radial Split Casing
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump, Chemical Pump
Materials
SS304, SS316, SS316L, Titanium, Monel, 2205, CD4MCU
Manufacturer Level
Top Level
Shaft Sealing
Mechanical Seal and Packing
Pump Arrangement
Pipe Hung, Horizontal
Pump Transmission
Direct Coupled, Gear Box, V-Belts, Universal Joint
Flange Standard
Customized
Motor Brand
ABB, Siemens or Reputed Chinese Brands
Pump Bearing
SKF, NSK or Reputed Chinese Brands
Trademark
Gaofeng
Transport Package
Standard Seaworthy Packing
Specification
Customized
Origin
China
HS Code
8413709990

DETAIL DESCRIPTION

Brief introduction:
The hydraulic model of ZHH mixed flow pump is optimized by CFD,with the advantages of stable,high efficiency,energy-saving and low operating cost. The ZHH series has full specifications,its pump diameter is from 200 mm to 900 mm,and therefore is able to satisfy the different capacity of various process. It is suitable for the fluid circulation of ammonium phosphate and potash fertilizer process,and it is the most ideal pump for such processes. ZHH mixed flow pump can be also used in the similar chemical applications to form the forced circulation of big flow of corrosive fluids with suspending particles.

Parameters:

Flow rateQ= 200~8300(m³/h)
Total headH= 5~19 (m)
Pump speedn=490~1450rpm
Fluid s.gγ ≤1.5
Fluid temperature:T=0~105ºC
Pump diameter:T=0~105ºC

Features:
  1. The hydraulic model is optimized by CFD,with excellent anti-cavitation performance.
  2. Elaborate design and manufacturing based on the fluid requirements of ammonium phosphate and potash fertilizer process,is able to satisfy various capacity requirements.
  3. The rotor part can be adjusted by the bearing housing,which enables the convenient method to recover the pump performance after slight abrasion of pump.
  4. Axial direction adjustable rotor part. The gap between the impeller and the front cover can be adjusted to enable stable operation at high efficiency.
  5. Pump diameter from 200 mm to 900 mm.A lot of real sales achievements for each specification.
  6. The discharge direction can be customized based on the requirements of process.
Structure:
  1. Horizontal,single stage,single suction,cantilever type,volute casing,direct coupled transmission.
  2. Back pull design. During maintenance,the rotor part plus the pump rear cover can be pulled out from the casing without dismantle the inlet and outlet pipes.
  3. Pump shaft sealing consists of dynamic seal and packing.
  4. Bearing housing is back pull structure,and connected to pump casing by pump rear cover.
Configuration:
China Horizontal Duplex Stainless Steel Chemical Centrifugal Mixed Flow Pump, Chemical Process Pump, Ss Centrifugal Industrial Pump, Titanium Pump, Nickel Pump

Application:
  1. Fluid circulation of ammonium phosphate and potash fertilizer process.
  2. Forced circulation of big flow of corrosive fluids with suspending particles.
Performance:
China Horizontal Duplex Stainless Steel Chemical Centrifugal Mixed Flow Pump, Chemical Process Pump, Ss Centrifugal Industrial Pump, Titanium Pump, Nickel Pump



China Horizontal Duplex Stainless Steel Chemical Centrifugal Mixed Flow Pump, Chemical Process Pump, Ss Centrifugal Industrial Pump, Titanium Pump, Nickel Pump
