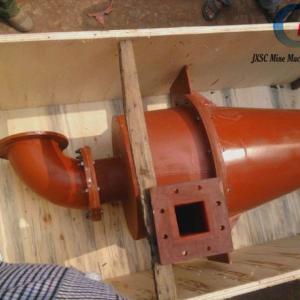

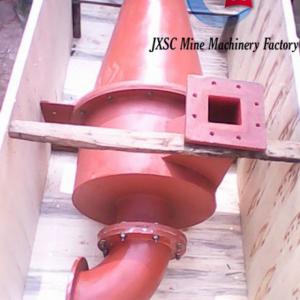

Hydro Cyclone for Ore Classifying

Minerals recycling equipment hydro cyclone classifier:1) corrosion resistant hydro cyclone classifier;2) multi-functional minerals recycling equipment;3) for desliming, dewatering, classification, desa

Technical Feature

  • Xiamen, China
  • 50000PCS/Year
  • T/T, Western Union
  • Gravity Separator
  • Power Free
  • <1T
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~500

PRIMARY PARAMETERS

Model NO.
FX
Energy Saving
Energy Saving
Warranty
1 Year
Color
Multi Color
Customized
Non-Customized
Condition
New
Usage
Dewatering, Desander, Separating, Deslimer,
Application
Mine, Metallurgy, Chemical, Building, etc
Capacity
1-350cubicmeter/Hour
Feeding Size
<2mm
Installation
Engineer Guidance
Certificate
ISO9001-2000
After Sale Service
Whole Using Life
Mining Object
Preparation Equipment
Trademark
JXSC
Transport Package
Standard Export Packing
Specification
ISO9001-2000
Origin
Jiangxi, China
HS Code
8474100000

DETAIL DESCRIPTION

Minerals recycling equipment hydro cyclone classifier:
1) corrosion resistant hydro cyclone classifier;
2) multi-functional minerals recycling equipment;
3) for desliming, dewatering, classification, desanding, etc.

Minerals recycling equipment hydro cyclone classifier:

This hydro cyclone classifier is widely used in separating of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries. Could be get a goold result as the minerals recycling equipment for chrome washing plant. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.

In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader.

It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode of cyclone according to grinding processing capacity, over fall fineness and sedimentation concentration.

Features of minerals recycling equipment hydro cyclone classifier:

The hydro cyclone device has features of simple structure, long service life, multi-functional application, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading, desander and de-sliming equipment of fine -particle material

Hydro cyclone classifier general applications:

Mineral Classification
Solids Concentration
Dewatering
Desliming
Desanding
Sludge Clarification
Specif
ication
Canister Interior Diameter
  mm
Cone Angle
   O

Overfall Pipe Dia
  mm

Bottom Exit Dia
   mm

Max.
Perm
itted Fee
ding
Granu
larity
 mm
Feeding Pressure
   Mpa

Processing Capacity
 m3/h
Classi
fication
Granu
larity
 um

Overall SizMach
ine
Weig
ht
 Kg

L
 mm

W  mmH  mm
FX66066020180~24080~150160.03-0.2250~35074-22012508902650995
FX50050020130~20035~100100.03~0.3140~22074~2008507902050495
1574~1508507902380540
FX3503502080~12030~7060.04~0.360~10050~1507756051765182
1550~1207756052115230
FX3003002065~11520~5050.04~0.345~8550~1506655851310108
1540~1006655851505169
FX2502502060~10016~4530.06~0.3540~6040~100540480118072
1540~100540480122077
1030~100540480138083
FX2002002040~6516~3220.06~0.3525~4040~100435360105060
1530~100435360111564
1030~100435360120569
FX1501502030~458~221.50.06~0.3511~2030~7428029569020
1530~7428029590022
830~74280295127060
FX1251251725~408~1810.06~0.358~1520~10021018562010
820~7425024098512
FX1001002020~408~1810.06~0.355~1220~1002602105258
1520~10026821572013
820~100268215100021
FX75751515~226~120.60.1~0.42~520~742402304654.2
65~402402308007
FX50501511~163~80.30.1~0.41~210~741601553502
65~301601555902.5
