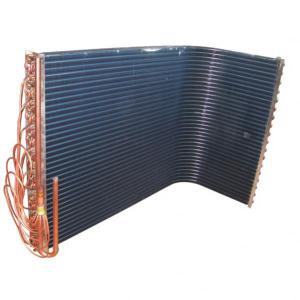

| Product Description | Copper tube aluminium fin heat pump evaporator |
| Model | 1/6-20P |
| Application | Refrigerator,air conditioner,cold room,display case,ice chest,ice maker,water dispenser and other refrigeration industry. |
| Refrigerant | R134a,R22,R404A,R407C etc. |
| Material | Copper,aluminum,galvanized plate,stainless steel plate |
| Size pf copper pipe | Diameter 7/7.94/9.52mm,etc |
| Inner | Grooved or smooth tube |
| Auminium foil | Hydrophilic or bare |
| Pitch of fins | 1.8-5.8mm(can be adjusted) |
| Pitch of holes/rows | 25x21.65mm,19.05x12.7mm,25.4x22mm equilatera triangle arrangement |
| Different alternative fan available | Micro fan,shaded pole or outer rotor fan motor |
Products can be produced by customer's request/design
Samples available
| Copper Tube Diameter | Holes and Rows Pitch | Fin space | Holds Array | Fin surface | Fin Edge Type | Defrost Heater |
| Φ15.88mm | 50×50mm | 4-10mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
| Φ15.88mm | 38Χ33mm | 2.5-4mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
| Φ12.7mm | 31.75Χ27.5mm | 3-9mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
| Φ9.52mm | 25Χ21.65mm | 1.5-6mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
| Φ9.52mm | 31.75Χ27.5mm | 2.5-7.5mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
| Φ9.52mm | 25χ21.65mm | 1.5-2.5mm | equilateral triangle | louver | flat | without |
| Φ7.94mm | 25χ21.65mm | 1.5-3.5mm | equilateral triangle | flat | flat+wave | without |
| Φ7.0mm | 21×12.7mm | 1.3-1.8mm | equilateral triangle | louver | flat | without |
