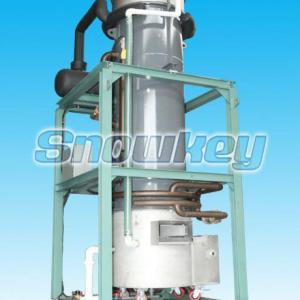

Tube ice machine Evaporator application:
Human consumption ice plant
Port ice plant
Coffee shop, bar, and hotel, etc
Supermarket, convenienience shop and restaurant, etc
Aquatic products and food fresh preservation
Logistic fresh preservation
Cgemical and concrete projects
-Tube ice machine Evaporator work conditions:
Power supply: Full electric system complying with the general international standard
Ambient temperature: 33
Water supply temperature: 20(water quality should be pure, Water filter and softening is suggesteded for places with hard water quality). )
Tube ice specification: φ 22φ 29φ 35φ 38 and φ 41standardard tube ice outer diameter, inner diametr 3mm-15mm
Limit work comditions(variable wiork condions): Ambient temp.: 5~40; Water suppl: 0.5~30.
Refrigrant: R22R404AR507AR717
Compressor brand: Bizer/carrier, or designated by customer
-Material for customers to choose
Evaporator freezing surface
- SUS304
- SUS316L
- Q345 Chrome-plated
| : |
| | | Model | Specification | Capability | Evaporation
temperature | Reducer Power (Kw) | Pump power | To
water | Overflow pipes | Drain | | Necessary system Cold | | TIM030S | φ 22 | 0.3T | -15 | 0.12 | 0.13 | 1/2" | -- | 1/2" | φ 203 | 700 | 1.8Kw | | TIM10S | φ 22 | 1T | -15 | 0.25 | 0.25 | 1/2" | 1" | 1' | φ 325 | 1400 | 6Kw | | TIM30S | φ 22 | 3.3T | -15 | 0.37 | 0.55 | 1/2" | 1" | 1' | φ 450 | 1650 | 18Kw | | φ 29 | 3T | -15 | 0.37 | 0.55 | 1/2" | 1" | 1' | φ 450 | 1650 | 18Kw | | TIM50S | φ 22 | 5.4T | -15 | 0.55 | 0.75 | 1/2" | 1" | 1' | φ 530 | 1800 | 30Kw | | φ 29 | 5T | -15 | 0.55 | 0.75 | 1/2" | 1" | 1' | φ 530 | 1800 | 30Kw | | φ 35 | 5.4T | -15 | 0.55 | 0.75 | 1/2" | 11/4" | 1' | φ 630 | 1800 | 30Kw | | φ 41 | 5T | -15 | 0.55 | 0.75 | 1/2" | 11/4" | 1' | φ 630 | 1800 | 30Kw | | TIM80S | φ 22 | 8.4T | -15 | 0.75 | 0.75 | 1/2" | 11/2" | 1' | φ 650 | 1800 | 48Kw | | φ 29 | 8T | -15 | 0.75 | 0.75 | 1/2" | 11/2" | 1' | φ 650 | 1800 | 48Kw | | φ 35 | 8.4T | -15 | 0.75 | 0.75 | 11/4" | 2" | 1' | φ 716 | 2000 | 48Kw | | φ 41 | 8T | -15 | 0.75 | 0.75 | 11/4" | 2" | 1' | φ 730 | 2100 | 48Kw | | TIM100S | φ 22 | 10.5T | -15 | 0.75 | 0.75 | 1/2" | 11/2" | 1' | φ 650 | 2000 | 48Kw | | φ 29 | 10T | -15 | 0.75 | 0.75 | 1/2" | 11/2" | 1' | φ 650 | 2000 | 48Kw | | φ 35 | 10.8T | -15 | 0.75 | 0.75 | 11/4" | 2" | 1' | φ 716 | 2500 | 48Kw | | φ 41 | 10T | -15 | 0.75 | 0.75 | 11/4" | 2" | 1' | φ 730 | 2500 | 48Kw | | TIM150S | φ 22 | 16T | -15 | 1.1 | 1.1 | 11/4" | 2" | 1' | φ 716 | 2500 | 90Kw | | φ 29 | 15T | -15 | 1.1 | 1.1 | 11/4" | 2" | 1' | φ 716 | 2500 | 90Kw | | φ 38 | 15.5T | -15 | 1.1 | 1.1 | 11/4" | 2" | 1' | φ 840 | 2700 | 90Kw | | φ 41 | 15T | -15 | 1.1 | 1.1 | 11/4" | 2" | 1' | φ 840 | 2700 | 90Kw | | TIM200S | φ 22 | 21.5T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 716 | 3200 | 120Kw | | φ 29 | 20T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 716 | 3200 | 120Kw | | φ 38 | 21T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 840 | 3600 | 120Kw | | φ 41 | 20T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 840 | 3600 | 120Kw | | TIM300S | φ 22 | 33T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 890 | 3200 | 180Kw | | φ 29 | 30T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 890 | 3200 | 180Kw | | φ 38 | 31T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 1010 | 3600 | 180Kw | | φ 41 | 30T | -15 | 1.5 | 1.1 | 11/4" | 2" | 1' | φ 1010 | 3600 | 180Kw | | TIM400S | φ 22 | 42T | -15 | 2 | 2.2 | 11/4" | 2" | 1' | φ 930 | 3700 | 240Kw | | φ 29 | 40T | -15 | 2 | 2.2 | 11/4" | 2" | 1' | φ 930 | 3700 | 240Kw | | φ 38 | 40.9T | -15 | 3 | 2.2 | 11/4" | 2" | 1' | φ 1130 | 4000 | 240Kw | | φ 41 | 40T | -15 | 3 | 2.2 | 11/4" | 2" | 1' | φ 1130 | 4000 | 240Kw | | TIM500S | φ 22 | 54T | -15 | 2 | 2.2 | 11/4" | 2" | 1' | φ 930 | 4500 | 300Kw | | φ 29 | 50T | -15 | 2 | 2.2 | 11/4" | 2" | 1' | φ 930 | 4500 | 300Kw | | φ 38 | 53T | -15 | 3 | 2.2 | 11/4" | 2" | 1' | φ 1130 | 4800 | 300Kw | | φ 41 | 50T | -15 | 3 | 2.2 | 11/4" | 2" | 1' | φ 1130 | 4800 | 300Kw | | TIM700S | φ 22 | 71.5T | -15 | 4 | 2.2 | 11/2" | 2.5' | 11/4" | φ 1130 | 4600 | 420Kw | | φ 29 | 70T | -15 | 4 | 2.2 | 11/2" | 2.5' | 11/4" | φ 1130 | 4600 | 420Kw | | φ 38 | 72T | -15 | 4 | 4.4 | 11/2" | 2.5' | 11/4" | φ 1270 | 5600 | 420Kw | | φ 41 | 70T | -15 | 4 | 4.4 | 11/2" | 2.5' | 11/4" | φ 1270 | 5600 | 420Kw |
|
