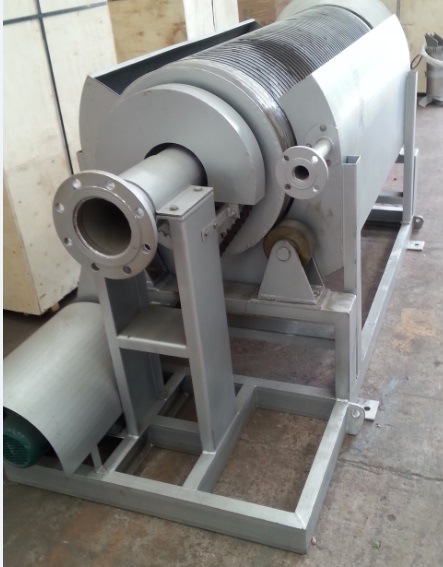

TPO Outward Water Micro Filtration
Product introductions:
TPN Outward Water Micro Filtration is also called rotating decay filter, suitable for the solid-liquid separation of industrial waste water, can remove the dirt from the suspended particles is greater than 0.2 mm, Sewage flat cloth evenly into the inside mesh buffer water inlet into the rotating drum, through net tube and the conducting slag spiral rotate, intercept sewage through the other side discharge, the filtered water from screening drum gap discharge.
Features:
1. Water distribution uniform increase capacity
2. Simple structure, stable running, easy maintenance, long service life
3. Use the chain transmission, high transmission efficiency
4. With reverse flushing device against the filter clogging
5. On both sides of the belt spill-proof plate to prevent the wa
Technical parameters:
*Above parameters only for reference, customized available for detailed requirements
Product introductions:
TPN Outward Water Micro Filtration is also called rotating decay filter, suitable for the solid-liquid separation of industrial waste water, can remove the dirt from the suspended particles is greater than 0.2 mm, Sewage flat cloth evenly into the inside mesh buffer water inlet into the rotating drum, through net tube and the conducting slag spiral rotate, intercept sewage through the other side discharge, the filtered water from screening drum gap discharge.
Features:
1. Water distribution uniform increase capacity
2. Simple structure, stable running, easy maintenance, long service life
3. Use the chain transmission, high transmission efficiency
4. With reverse flushing device against the filter clogging
5. On both sides of the belt spill-proof plate to prevent the wa
Technical parameters:
| Model | diameter(mm) | Slot Size(mm) | Removal rate | Shape area(mm) | |
| Grain size >0.75mm | Grain size >037mm | ||||
| TPLN-600 | 600 | 0.02-2 | 95% | 55% | 2450x1000x960 |
| TPLN-800 | 800 | 3000x1200x1200 | |||
| TPLN-1000 | 1000 | 3400x1350x1250 | |||
| TPLN-1200 | 1200 | 3500x1850x1450 | |||
| TPLN-1500 | 1500 | 3650x1800x1880 |
