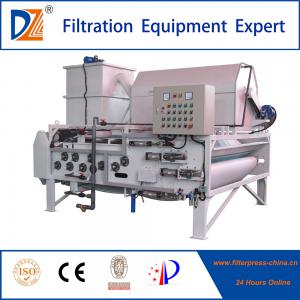

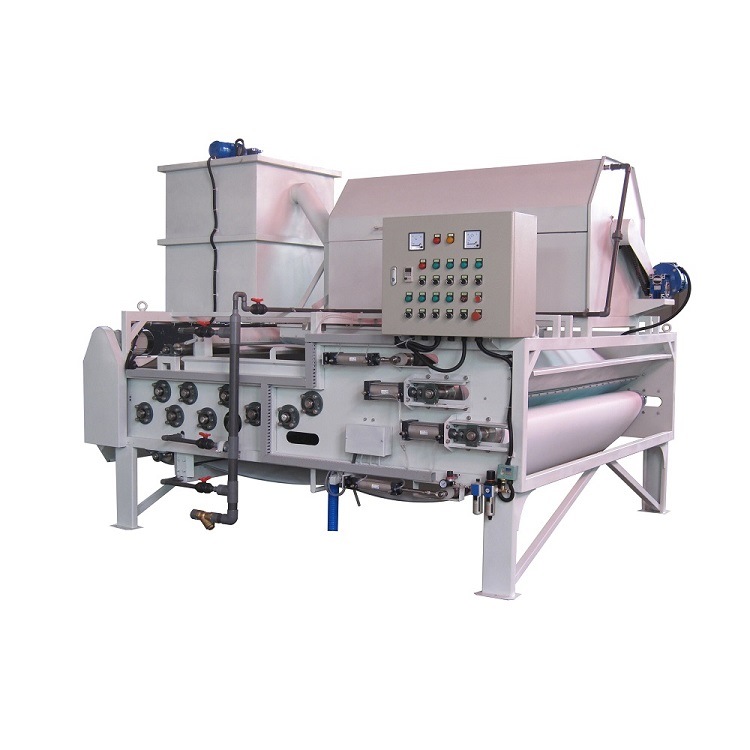

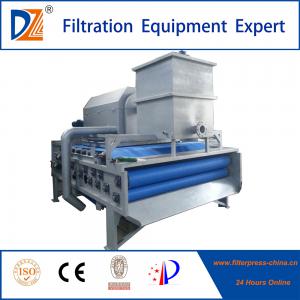

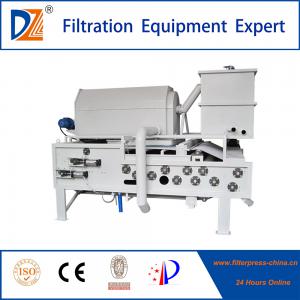

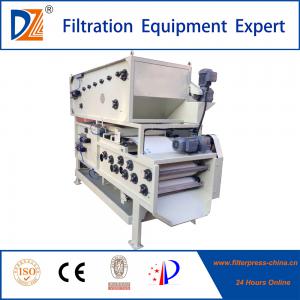

Compact Design Belt Filter Press With Rotary Drum Thicknening System
INTRODUCTION:
The belt filter (sometimes called a belt press filter, or belt filter press) is an industrial machine, used for solid/liquid separation processes, particularly the dewatering of sludge in the chemical industry, mining, food processing and water treatment. The process of filtration is primarily obtained by passing a pair of filtering belts through a system of rollers. The system takes a sludge as a feed, and separates it into a filtrate and a solid cake.
FEATURE:
1. Fully-automatic & continuous filtering
2. Lowest moisture
3. ISO9001/14001
4. Energy saving
5. Service very good
SPECIFICATION:
OUR SERVICE:
1. We will supply operation manual of filter press and filtration elements which introduced the specifications and warnings.
2. We also can optimize the technical data of filtration and constitute operation regulations for customers accordingly.
3. We can supply the filtration flow chart according to different material and demands.
4. We can offer the filtration testing free of charge.
5. We could offer training in free.
COMPANY INFORMATION:

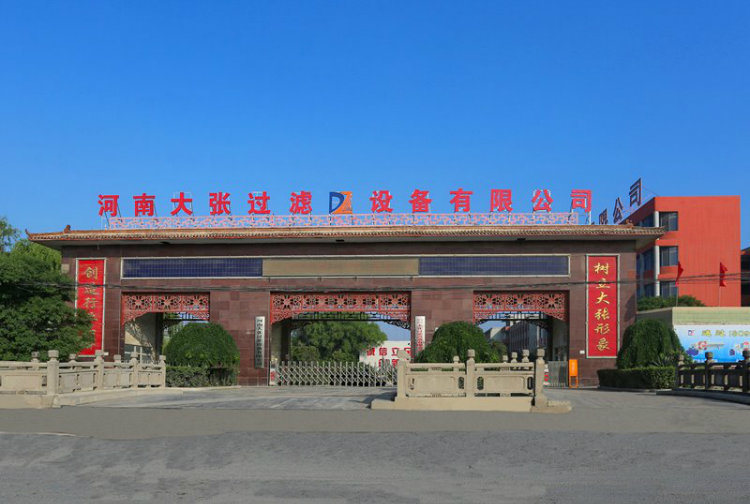

Henan Dazhang Filter Equipment Co.,Ltd founded in 2007, occupies a total area of 120,000 square meters, and employs 1,000 staff members, including 62 senior engineers and technicians and 128 mid-level engineers and technicians. Dazhang Group is a joint-stock enterprise that produces filtration equipment such as filter press and filter, forming R&D, production and sale into an integral system. Over the past decade, adhering to the corporate tenet of "Profession, Innovation, Customer Supreme Quality First ", Dazhang Group has become one of the largest solid-liquid separation manufacturers in China with the most complete specifications and the best quality after high-speed development.
DaZhang produce dozens of models (model 320 to 2000) of filter presses with more than 100 specifications. Filtration area of these filter presses ranges from 1M2 to 1,000M2 and filtration pressure ranges from 0.4MPa to 1.6MPa (and the filtration pressure of circular filter press can be 2.0Mpa).
DaZhang has excellent processing and testing equipment. Our major production equipment includes large CNC machining center, mold processing center, professional filter plate CNC processing equipment, large filter plate 4000T press, 1000T press, 500T press, 200T press, vertical lathe, large double housing planer and full-automatic welding equipment and so on.
"Devoted, Elaborate, Rigorous, Harmonious". Customers are our pilots, service is our heart. What customers demand is what we are trying to create, and what makes customers satisfied is what we are pursuing all the time. In many years, staffs in Dazhang continuously create, overstep ourselves and work hard to provide the customers with the high-quality products, creating the brand with product quality and promoting the brand with services. Honor creates success, innovation creates prosperity. On the basis of technique innovation, guided by the enterprise culture and purpose to serve society, uniting as one, staffs in Dazhang are not afraid of hardships to make dedication to top-grade brand and making great efforts to do the biggest contribution to China national industry with all strength.
Quality is our culture and DaZhang will be your best friend forever.
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.
Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.
Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.
Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.
Q: Is on site installation & commissioning available?
A: Yes.
Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
63-84.5%63-84.5%1.49kw
INTRODUCTION:
The belt filter (sometimes called a belt press filter, or belt filter press) is an industrial machine, used for solid/liquid separation processes, particularly the dewatering of sludge in the chemical industry, mining, food processing and water treatment. The process of filtration is primarily obtained by passing a pair of filtering belts through a system of rollers. The system takes a sludge as a feed, and separates it into a filtrate and a solid cake.
FEATURE:
1. Fully-automatic & continuous filtering
2. Lowest moisture
3. ISO9001/14001
4. Energy saving
5. Service very good
SPECIFICATION:
| TYPE | Filter Width | Inlet Capacity | Dry Solid | Cake Moisture | Power | Dimension | Weight |
| DNY500 | 500 mm | 3.0-5.2 m3/h | 45-78 kg/h | 63-84.5% | 1.49kw | 2600*1050*2175 | 830 kg |
| DNY750 | 750 mm | 4.5-7.5 m3/h | 68-113 kg/h | 63-84.5% | 1.49kw | 2600*1300*2175 | 1000 kg |
| DNY1000 | 1000 mm | 6.5-10.5 m3/h | 98-158 kg/h | 63-84.5% | 1.49kw | 2600*1550*2270 | 1210 kg |
| DNY1250 | 1250 mm | 7.5-12.5 m3/h | 113-188 kg/h | 63-84.5% | 1.49kw | 2600*1800*2270 | 1450 kg |
| DNY1500 | 1500 mm | 9.5-16 m3/h | 143-240 kg/h | 63-84.5% | 1.49kw | 2600*2050*2270 | 1850 kg |
| DNY1500L | 1500 mm | 12-20.5 m3/h | 180-308 kg/h | 63-84.5% | 1.49kw | 3190*2300*2510 | 2200 kg |
| DNY1750 | 1750 mm | 15-24.5 m3/h | 225-368 kg/h | 63-84.5% | 1.49kw | 3190*2300*2510 | 2450 kg |
| DNY2000 | 2000 mm | 18-30 m3/h | 270-450 kg/h | 63-84.5% | 1.49kw | 3190*2550*2510 | 2850 kg |
| DNY3000 | 3000 mm | 40-55 m3/h | 360-675 kg/h | 63-84.5% | 2.6kw | 4300*3550*3010 | 3600 kg |
OUR SERVICE:
1. We will supply operation manual of filter press and filtration elements which introduced the specifications and warnings.
2. We also can optimize the technical data of filtration and constitute operation regulations for customers accordingly.
3. We can supply the filtration flow chart according to different material and demands.
4. We can offer the filtration testing free of charge.
5. We could offer training in free.
COMPANY INFORMATION:
Henan Dazhang Filter Equipment Co.,Ltd founded in 2007, occupies a total area of 120,000 square meters, and employs 1,000 staff members, including 62 senior engineers and technicians and 128 mid-level engineers and technicians. Dazhang Group is a joint-stock enterprise that produces filtration equipment such as filter press and filter, forming R&D, production and sale into an integral system. Over the past decade, adhering to the corporate tenet of "Profession, Innovation, Customer Supreme Quality First ", Dazhang Group has become one of the largest solid-liquid separation manufacturers in China with the most complete specifications and the best quality after high-speed development.
DaZhang produce dozens of models (model 320 to 2000) of filter presses with more than 100 specifications. Filtration area of these filter presses ranges from 1M2 to 1,000M2 and filtration pressure ranges from 0.4MPa to 1.6MPa (and the filtration pressure of circular filter press can be 2.0Mpa).
DaZhang has excellent processing and testing equipment. Our major production equipment includes large CNC machining center, mold processing center, professional filter plate CNC processing equipment, large filter plate 4000T press, 1000T press, 500T press, 200T press, vertical lathe, large double housing planer and full-automatic welding equipment and so on.
"Devoted, Elaborate, Rigorous, Harmonious". Customers are our pilots, service is our heart. What customers demand is what we are trying to create, and what makes customers satisfied is what we are pursuing all the time. In many years, staffs in Dazhang continuously create, overstep ourselves and work hard to provide the customers with the high-quality products, creating the brand with product quality and promoting the brand with services. Honor creates success, innovation creates prosperity. On the basis of technique innovation, guided by the enterprise culture and purpose to serve society, uniting as one, staffs in Dazhang are not afraid of hardships to make dedication to top-grade brand and making great efforts to do the biggest contribution to China national industry with all strength.
Quality is our culture and DaZhang will be your best friend forever.
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.
Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.
Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.
Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.
Q: Is on site installation & commissioning available?
A: Yes.
Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
63-84.5%63-84.5%1.49kw
