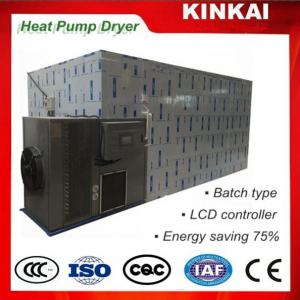

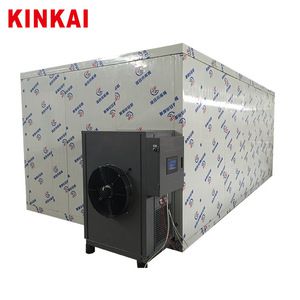

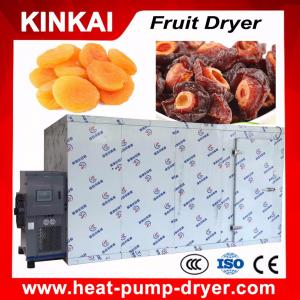

What Are KINKAI Fruit And Vegetable Dryer?
KINKAI Heat pump fruit and vegetable dryer takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.

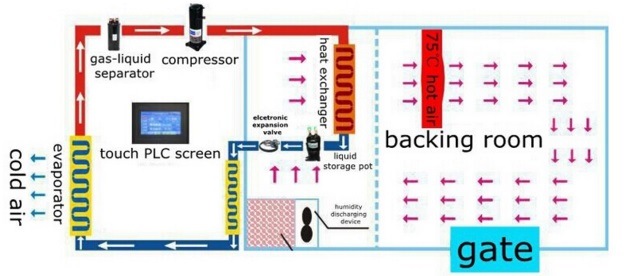

How Does It Working?
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final vegetables/fruits/seafood/herbs will be dried by the hot air circulating in drying chamber
KINKAI Fruit And Vegetable Dryer Features:
1, Adopt cycle drying with second waste heat recovery patent technology
2, Energy saving 60~75% than traditional dryer
3, The adjustable temperature: 10-75 degrees
4, Touch screen control operation
5,Uniform drying

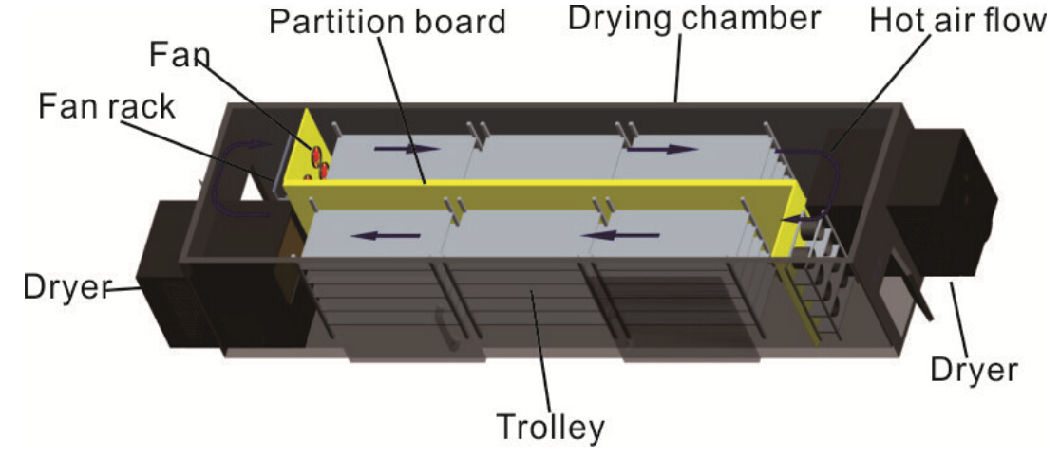

Horizontal Blowing 360ºC, by using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content
7. Running stable, easy operation and low maintenance requirements
Automatic intelligent control and demands no human duty after setting.
8. Big capacity ranges, from 200kg/batch small capacity single unit to 3000kg/batch combined multiple units to fulfill all your processing need;
Technical Parameters
Delivery and Package
For heat pump dryer parts---with plywood
For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood
Our Factory
Our Service
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
KINKAI Heat pump fruit and vegetable dryer takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
How Does It Working?
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final vegetables/fruits/seafood/herbs will be dried by the hot air circulating in drying chamber
KINKAI Fruit And Vegetable Dryer Features:
1, Adopt cycle drying with second waste heat recovery patent technology
2, Energy saving 60~75% than traditional dryer
3, The adjustable temperature: 10-75 degrees
4, Touch screen control operation
5,Uniform drying
Horizontal Blowing 360ºC, by using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content
7. Running stable, easy operation and low maintenance requirements
Automatic intelligent control and demands no human duty after setting.
8. Big capacity ranges, from 200kg/batch small capacity single unit to 3000kg/batch combined multiple units to fulfill all your processing need;
Technical Parameters
| Double Dryers + Drying Chamber | ||||
| Model | Unit | JK03RD (x2) | JK06RD (x2) | JK12RD (x2) |
| Power Input | KW | 9.6 | 17 | 30 |
| Power Supply | V/PH/HZ | 380V/3PH, 50/60HZ | 380V/3PH, 50/60HZ | |
| 220V/1PH, 50/60HZ | ||||
| Rated Current | A | 19.2A(380V), 44A(220V) | 34 | 60 |
| Heating Capacity | KW | 21 | 42 | 84 |
| Cooling Capacity | KW | 15.6 | 36 | 64 |
| Dehumidify | L/H | 24 | 50 | 100 |
| Max. Temperature | ºC | ≤75 | ≤75 | ≤75 |
| Working Condition | ºC | 0-43 | 0-43 | 0-43 |
| Electric Shock Protection Grade | I | I | I | |
| Max. Exhause Pressure | Mpa | 3 | 3 | 3 |
| Noise | dB(A) | ≤75 | ≤75 | ≤75 |
| Power Consumption/ H | KWH | 9.6 | 17 | 30 |
| Electric Heater | KW | 6 | 12 | 24 |
| Blowing Type | / | Horizontal Blowing 360ºC | ||
| Dimension Of Dryer | MM | 1675x860x1280 | 1760x1060x1280 | 2120x1360x1590 |
| Weight | KG | 295x2 | 385x2 | 540x2 |
Delivery and Package
For heat pump dryer parts---with plywood
For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood
Our Factory
Our Service
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
