BITEMAN Modular units heated desiccant air dryer
Unique features
-Biteman PLC & touch panel
-Pressure, inlet temperature, PDP, consumable parts service life digital display on screen.
-Automatically adjust purge air according to preset dew point
-Smart interface
Stable -40 ºC / -70 ºC Pressure dew point
-Heat or heatless optional
Details of advantages
Innovative structure with patents,employs small desiccant chamber unit
1. High Efficiency: Stable PDP -40ºC~-70ºC
2. Energy Conservation:Heated purge air loss 2%,heatless purge air loss 5%
3. Service Life&Maintenance:Modular unit design solved the problem of desiccant replacement,make less affect to equipment operation and prolong service life
Structure and operation

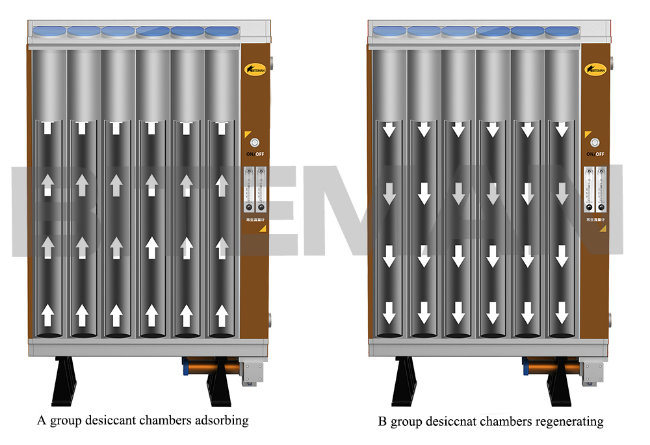

Biteman dryer have two groups of desiccant chambers,A and B ,according to flow rate,A and B shift between adsorption and regeneration

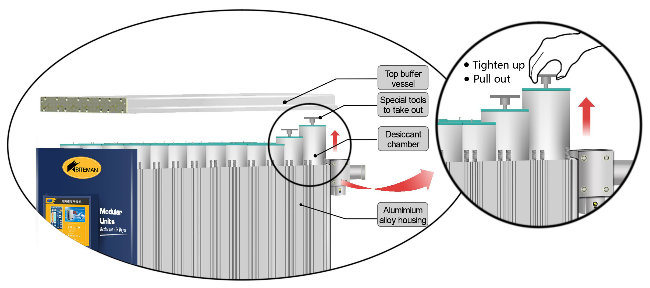

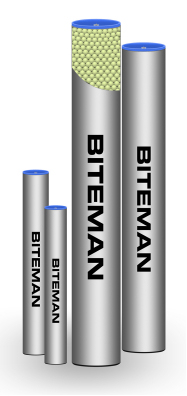

Ease of replacement of desiccant chambers,it can't be more simpler comparing to exchange of desiccant,only one wrench it is done.Further more,needn't worry the desiccant density after refilling because it is filled in our factory to keep constant and stable pressure dew point,just like new dryer from factory
Working condition:
Standard working condition:Inlet pressure 7bar≤P<10bar,Temperature T≤35
Working condition:Pressure 4bar≤P<10bar,Temperature 2ºC≤T≤40ºC
Technical date:Pressure dew point≤-40ºC or -40°F
Purge air:2%/heated;5%/heatless
Pressure drop ≤ 0.012MP
Noise ≤ 75dB(average)
Technical data:

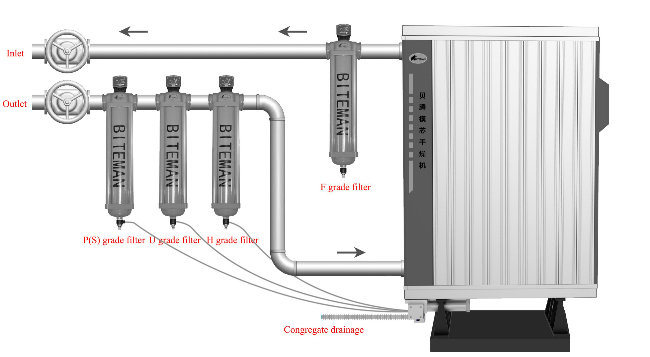

Installation
Unique features
-Biteman PLC & touch panel
-Pressure, inlet temperature, PDP, consumable parts service life digital display on screen.
-Automatically adjust purge air according to preset dew point
-Smart interface
Stable -40 ºC / -70 ºC Pressure dew point
-Heat or heatless optional
Details of advantages
Innovative structure with patents,employs small desiccant chamber unit
1. High Efficiency: Stable PDP -40ºC~-70ºC
2. Energy Conservation:Heated purge air loss 2%,heatless purge air loss 5%
3. Service Life&Maintenance:Modular unit design solved the problem of desiccant replacement,make less affect to equipment operation and prolong service life
Structure and operation
Biteman dryer have two groups of desiccant chambers,A and B ,according to flow rate,A and B shift between adsorption and regeneration
Ease of replacement of desiccant chambers,it can't be more simpler comparing to exchange of desiccant,only one wrench it is done.Further more,needn't worry the desiccant density after refilling because it is filled in our factory to keep constant and stable pressure dew point,just like new dryer from factory
Working condition:
Standard working condition:Inlet pressure 7bar≤P<10bar,Temperature T≤35
Working condition:Pressure 4bar≤P<10bar,Temperature 2ºC≤T≤40ºC
Technical date:Pressure dew point≤-40ºC or -40°F
Purge air:2%/heated;5%/heatless
Pressure drop ≤ 0.012MP
Noise ≤ 75dB(average)
Technical data:
| Biteman Modular Units dryer A-series Heated(with DDS and dew point sensor) | |||||||||
| Model code | Port (inch) | Flow rate (m³/min) | Dimension (mm) | Weight (KGS) | Power(KW) | ||||
| @5~6bar | @6~7bar | @7~10bar | L | W | H | ||||
| BTGMXD065-A | G2 | 4.8 | 5.8 | 6.5 | 451 | 240 | 1628 | 159 | 0.8 |
| BTGMXD085-A | G2 | 6.0 | 7.4 | 8.5 | 560 | 240 | 1628 | 192 | 1.0 |
| BTGMXD106-A | G2 | 7.4 | 9.1 | 10.6 | 668 | 240 | 1628 | 226 | 1.0 |
| BTGMXD146-A | G2 | 9.8 | 12.0 | 14.6 | 885 | 240 | 1628 | 293 | 1.4 |
| BTGMXD165-A | G2 | 11.6 | 14.2 | 16.5 | 994 | 240 | 1628 | 327 | 1.6 |
| BTGMXD206-A | G3 | 14.6 | 17.8 | 20.6 | 763 | 480 | 1628 | 380 | 2.0 |
| BTGMXD248-A | G3 | 16.7 | 20.5 | 24.8 | 794 | 480 | 1628 | 510 | 2.4 |
| BTGMXD295-A | G3 | 21.5 | 26.3 | 29.5 | 903 | 480 | 1628 | 574 | 2.8 |
| BTGMXD336-A | G3 | 24.1 | 29.5 | 33.6 | 1012 | 480 | 1628 | 638 | 3.2 |
| BTGMXD385-A | G3 | 26.8 | 32.8 | 38.5 | 1121 | 480 | 1628 | 702 | 3.6 |
| BTGMXD425-A | G3 | 29.7 | 36.4 | 42.5 | 1230 | 480 | 1628 | 767 | 4.0 |
| BTGMXD465-A | G4 | 32.7 | 40.1 | 46.5 | 1339 | 480 | 1628 | 831 | 4.4 |
| Biteman Modular Units dryer A-series Heatless(with DDS and dew point sensor) | ||||||||
| Model code | Port (inch) | Flow rate (m³/min) | Dimension (mm) | Weight (KGS) | ||||
| @5~6bar | @6~7bar | @7~10bar | L | W | H | |||
| BTGMXW065-A | G2 | 4.8 | 5.8 | 6.5 | 451 | 240 | 1628 | 159 |
| BTGMXW085-A | G2 | 6.0 | 7.4 | 8.5 | 560 | 240 | 1628 | 192 |
| BTGMXW106-A | G2 | 7.4 | 9.1 | 10.6 | 668 | 240 | 1628 | 226 |
| BTGMXW146-A | G2 | 9.8 | 12.0 | 14.6 | 885 | 240 | 1628 | 293 |
| BTGMXW165-A | G2 | 11.6 | 14.2 | 16.5 | 994 | 240 | 1628 | 327 |
| BTGMXW206-A | G3 | 14.6 | 17.8 | 20.6 | 763 | 480 | 1628 | 380 |
| BTGMXW248-A | G3 | 16.7 | 20.5 | 24.8 | 794 | 480 | 1628 | 510 |
| BTGMXW295-A | G3 | 21.5 | 26.3 | 29.5 | 903 | 480 | 1628 | 574 |
| BTGMXW336-A | G3 | 24.1 | 29.5 | 33.6 | 1012 | 480 | 1628 | 638 |
| BTGMXW385-A | G3 | 26.8 | 32.8 | 38.5 | 1121 | 480 | 1628 | 702 |
| BTGMXW425-A | G3 | 29.7 | 36.4 | 42.5 | 1230 | 480 | 1628 | 767 |
| BTGMXW465-A | G4 | 32.7 | 40.1 | 46.5 | 1339 | 480 | 1628 | 831 |
Installation
