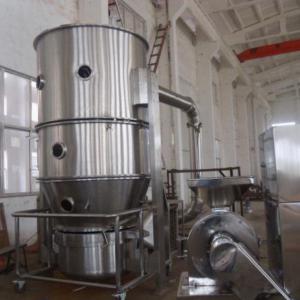

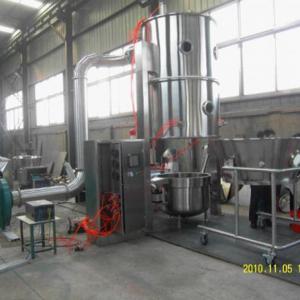

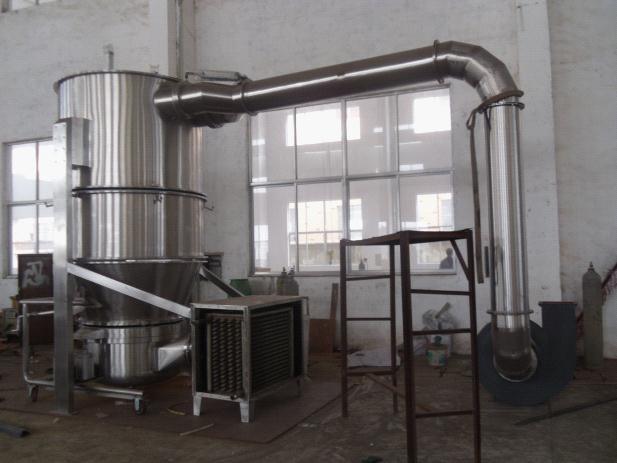

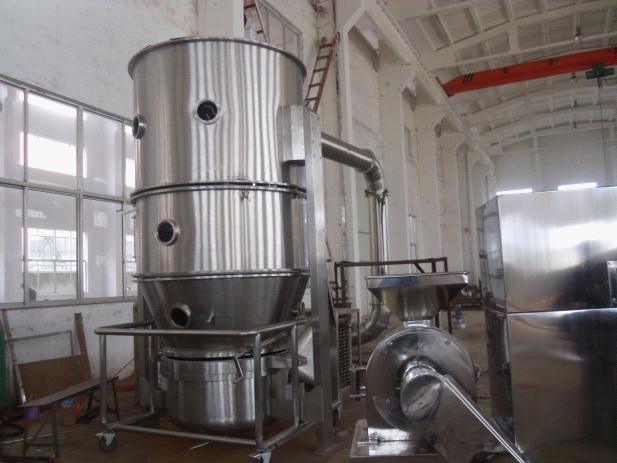

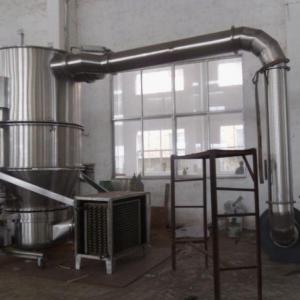

Vertical Fluid Bed Dryer (FG)
Applications:
The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.
Feature:
Fluid bed drying to achieve fast heat transmission of medium.
Sealed and negative pressure operated, there is no dust.
Because of using anti-static material as filter, it is safe in operation;
The equipment has no dead corner so it is easy to clean fully and there is no cross pollution for products;
It is in conformity with the requirements of GMP.
Technical paramaters:
| Spec | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| Item | unit | ||||||||||
| container raw material | Diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| production capacity | min. | Kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| Max. | Kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| Consumption of steam | Kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| temperature | C | Adjustable from ambient to 120 | |||||||||
| Product collection rate | % | >99 | |||||||||
| time of operation | min | 15-30 (depends on material) | |||||||||
| Final moisture content of final product | % | About 0.2 (depends on material) | |||||||||
| noise | db | ≤75 | |||||||||
| height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 |
