YSD102C Blood Glucose Meter

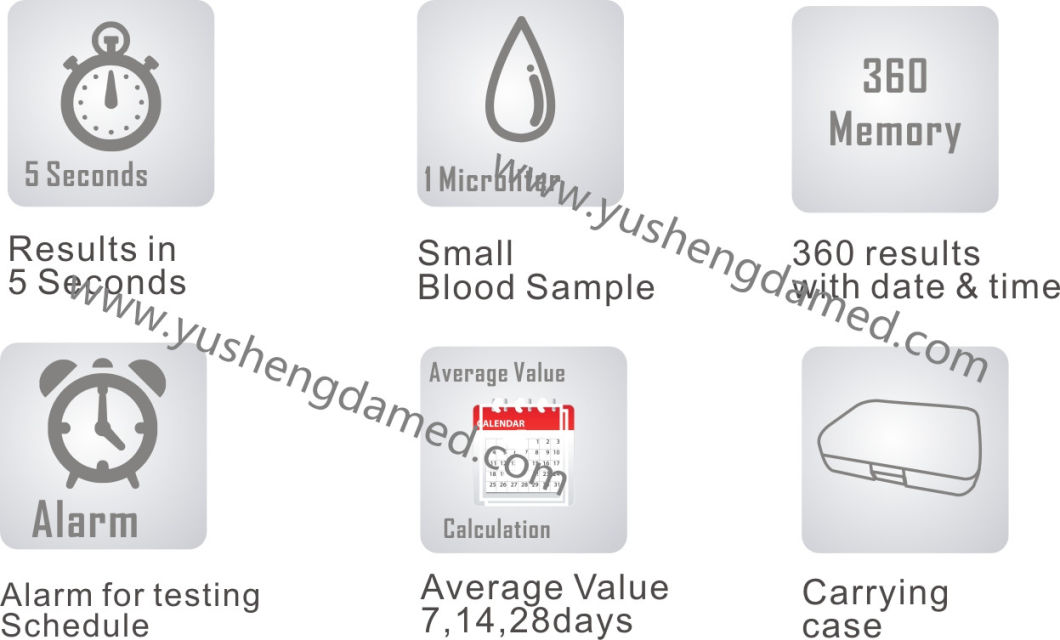

Features:
1. 1ul samll blood sample
2. 5 seconds measuring time
3. 360 reading memories
4. 7, 14, 28 day average
5. Alarm clock reminder
6. Switchabel dual scale in mg/dL and mmol/L
7. Auto power off
8. Duluxe carry case
9. Fast, safe and convenient. Small blood sample requirement reduce pain and sensitivity for easy diabetes monitoring.

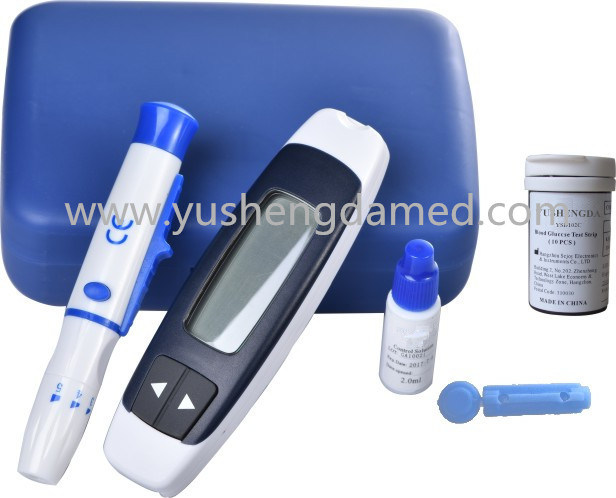

Product Contents
1 Blood Glucose meter (battery included)
Test strips (optiona;)
Sterile Lancets (Optional)
1 Lancing Device
1 carrrying case
1 owner's booklet
1 quick reference guide
1 log booklet (optional)

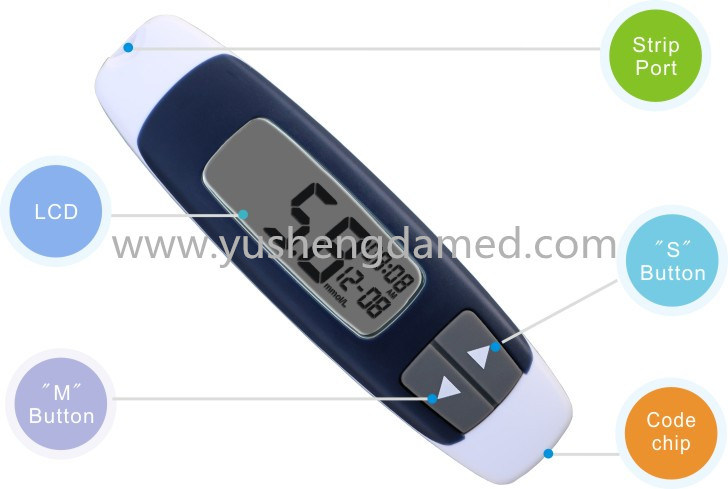

Product Illustration
Product Specification
User Instructions
Step 1.
With meter off or in setting mode and memory mode, insert a test strip to enter into testing mode. Each time the mete powers on, this full screen briefly appears so that you can make sure the display is working properly.
Why choose us:
We got production and business certification from Chengdu food and Drug Administration
We got business license from Chengdu City Administration of industry and commerce
We got products certificate of registration and have checked in the website of SFDA
We have accepted the onsite check from SFDA every quarter
We finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life", and our company spirits are quality, service,trust,thanksgiving;
Features:
1. 1ul samll blood sample
2. 5 seconds measuring time
3. 360 reading memories
4. 7, 14, 28 day average
5. Alarm clock reminder
6. Switchabel dual scale in mg/dL and mmol/L
7. Auto power off
8. Duluxe carry case
9. Fast, safe and convenient. Small blood sample requirement reduce pain and sensitivity for easy diabetes monitoring.
Product Contents
1 Blood Glucose meter (battery included)
Test strips (optiona;)
Sterile Lancets (Optional)
1 Lancing Device
1 carrrying case
1 owner's booklet
1 quick reference guide
1 log booklet (optional)
Product Illustration
Product Specification
| Type | Blood Glucose Meter |
| Certification | CE0197;ISO13485;ROHS;REACH |
| Measurement Range | 40~600mg/dL (2.2~33.3mmol/L) |
| Sample | Fresh capillary whole blood |
| Sample Size | Approx. 1 ul |
| Response Time | 5 Seconds |
| Memory | 360 Memory |
| Coding | Yes |
| Backlight | No |
| LCD display | Liquid crystal display; Size28x26mm |
| Battery type | One 3.0V lithium battery type CR2032 |
| Battery life | Approx. 1000 tests |
| Unit dimension | 8.6×5.4×2.0cm(L x W x H) |
| Unit weight | Approx.39.8 grams (including battery) |
| Packing | 1 PCs/Giftbox;24 Giftboxse/Carton |
User Instructions
Step 1.
With meter off or in setting mode and memory mode, insert a test strip to enter into testing mode. Each time the mete powers on, this full screen briefly appears so that you can make sure the display is working properly.
Step 2.
The code with date and time will briefly appear after the system check screen, so that you can make sure your meter is set to the correct code.The blood drop symbol flashes on the display screen. Your meter is now ready to apply blood sample.
The code with date and time will briefly appear after the system check screen, so that you can make sure your meter is set to the correct code.The blood drop symbol flashes on the display screen. Your meter is now ready to apply blood sample.
Step 3.
Apply sample Gently touch the channel to the edge of the blood drop.
Note: Discard the first drop of blood. Do Not smear or scrape the drop of blood with the test strip. Do Not apply more blood to the test strip after you have moved the drop of blood away. Do Not move the test strip in the meter during a test. Wait for the confirmation window to fill completely The blood drop will be drawn into the narrow channel and the confirmation window should fill completely. When the confirmation window is full, this means you have applied enough blood. Now you can move the test strip away from the blood drop and wait for the meter to count down from 5 to 1with 2 beep sounds indicating the end of test.
Apply sample Gently touch the channel to the edge of the blood drop.
Note: Discard the first drop of blood. Do Not smear or scrape the drop of blood with the test strip. Do Not apply more blood to the test strip after you have moved the drop of blood away. Do Not move the test strip in the meter during a test. Wait for the confirmation window to fill completely The blood drop will be drawn into the narrow channel and the confirmation window should fill completely. When the confirmation window is full, this means you have applied enough blood. Now you can move the test strip away from the blood drop and wait for the meter to count down from 5 to 1with 2 beep sounds indicating the end of test.
Step 4.
Read the result your blood glucose level appears on the display, along with the unit of measure, the date and time of the test. Blood glucose results are automatically stored in the meter's memory.
Read the result your blood glucose level appears on the display, along with the unit of measure, the date and time of the test. Blood glucose results are automatically stored in the meter's memory.
Step 5.
Delete the memory
If you don't want to keep the test result, press "M" button to delete it. After memory cleared, the meter will display "dEL" for aprrox. 3 minutes, and then automatically turn off.
Delete the memory
If you don't want to keep the test result, press "M" button to delete it. After memory cleared, the meter will display "dEL" for aprrox. 3 minutes, and then automatically turn off.
Step 6.
Turn your meter off.
Simply remove the test strip. Carefully dispose the used test strip.
