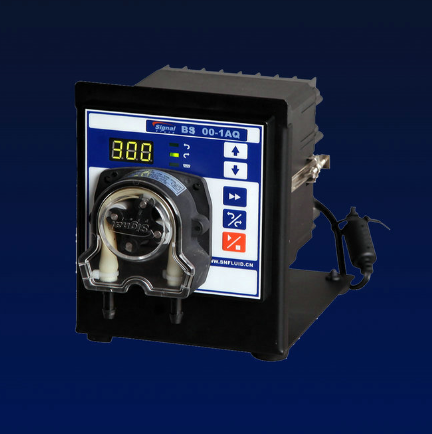

BS series speed control type peristaltic pump
Introduction
Flow rate: 0.003-41mL/min
Unique timing function, timed quantitative addition, more convenient to use.
A variety of pump heads are available: TH10 series, JZ15 series.
Stepper motor drive, 128 times subdivision, high precision, low vibration, ultra quiet.
Standard bracket for easy desktop use, can also be removed, embedded in the device.
Application
Laboratory, sampling, biochemistry, filling, fine chemicals
Model | BS100-1AQ |
Speed adjustment range | 0.1-100RPM |
Speed resolution | 0.1（＜100RPM） |
Display function | 3-digit digital display speed |
Direction control | Running direction reversible function |
Operation method | Thin film button control, convenient, fast and reliable |
Full speed function | Fast filling and emptying of pipes with full speed button |
Power-down memory function | After power-on again, continue to run before power-off. |
External control function | Optional different types of external control modules for start-stop control, direction control, flow control, 0-5V, 0-10V, 4-20mA, 0-10KHz 4 external control modules are available |
Communication function | Optional communication module for RS485 communication control (using the universal Modbus protocol) |
Foot switch control | Optional foot switch control start and stop |
Power consumption | <25W |
Suitable power supply | Wide voltage AC90-260V，50Hz/60Hz |
Working environment | 0-40℃，Humidity <80% without condensation |
Dimension | 186mm×110mm×143mm |
Drive weight | 1.3KG |
Protection level | IP31 |
