Sanitary Stainless steel centrifugal pump

The sanitary centrifugal pump is a centrifugal pump designed by a sanitary mechanism.

Sanitary centrifugal pumps are mainly used for the delivery of sanitary fluids such as pharmaceuticals, foods, and cosmetics. Such as: pharmaceutical water delivery - WFI water for injection / purified water delivery, can also be used for other health requirements. According to the use occasions and structural processes, etc. can also be called: sanitary grade injection water pump, sanitary grade purified water pump, sanitary grade wort pump, sanitary grade concentrated extraction pump, GMP sanitary grade centrifugal pump, sterile sanitary pump, explosion-proof sanitary grade centrifugation Pump, frequency conversion explosion-proof sanitary pump.

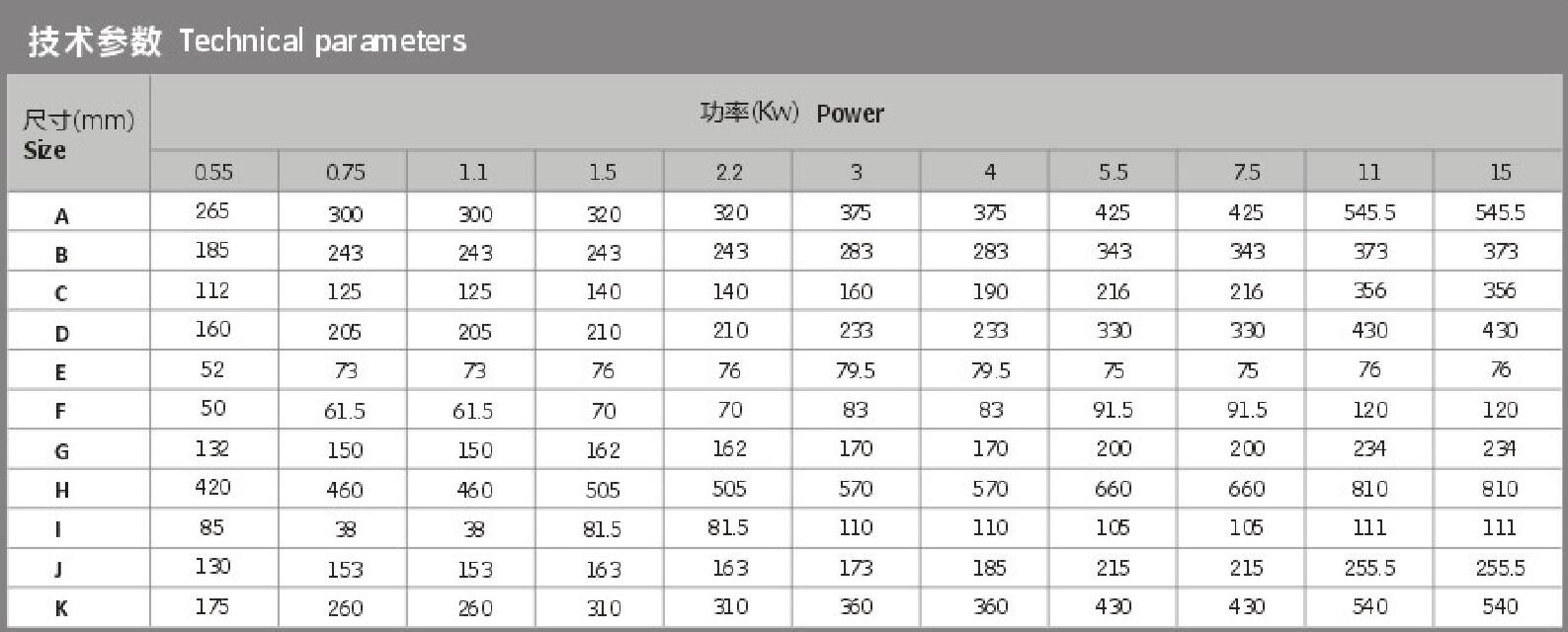

Data

Specifications: 3T-180T, 0.55KW-75KW

Material: SUS304 SUS316L (In the material selection, the pump body, pump cover, impeller, etc. are made of SUS316L or SUSI304 stainless steel).

Standard: DIN, SMS

Impeller: Open impeller without leaving a sanitary corner

Working conditions: The sanitary centrifugal pump is a high level and low level, and is not self-priming. (Self-suction type uses self-priming pump).

Surface treatment: the wetted part is polished, and the rest is matt or sandblasted.

Max. inlet pressure: 0.5MPa

Temperature range: -10 ° C to +140 ° C (EPDM)

Flushable mechanical seal:

Water pressure: up to 0.1MPa

Water capacity: 0.25-0.5L/min
