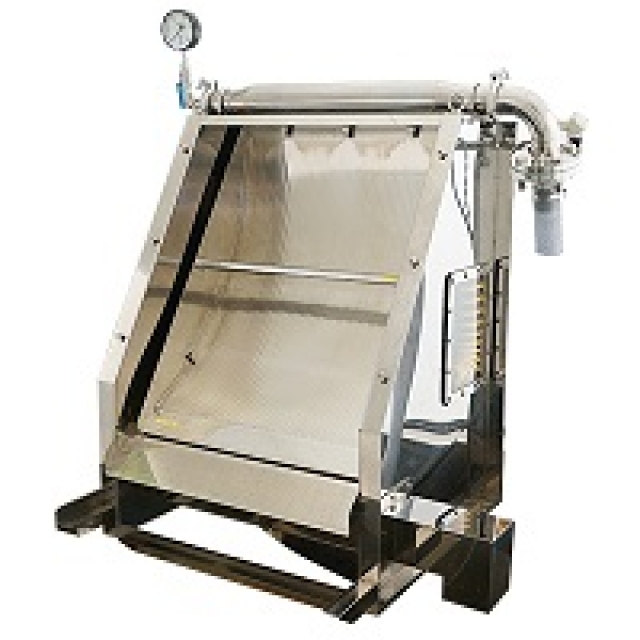

Pressure arc screen

Pressure screen is generally used in starch industry, fiber separation of starch pulp, filtration of wastewater fiber, suitable for solid-liquid separation with high impurity content

Technical Feature

  • Solid-liquid separation
  • -
  • -
  • -
  • -
  • -
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5000~30000

PRIMARY PARAMETERS

Brand name
Stable filter
Application
Starch, alholco
Process input material
Fiber liquid
Process output material
Fiber
Place of origin
China
Equipment material
SS304
Power (kW)
-
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model -
- -

DETAIL DESCRIPTION


Pressure arc screen


Introduction

  1. Pressure screen is generally used in starch industry, fiber separation of starch pulp, filtration of wastewater fiber, suitable for solid-liquid separation with high impurity content.

  2. Fiber-containing water filtration for paper, wood, ethanol, and alcohol industries.

  3. The pressure screen needs to work under a certain water pressure. The recommended water pressure is 0.2-0.4mpa.

  4. Patented design, will not block the screen.

  5. In case of large amount of impurities and high fiber content, nozzle design can be made, and anti-gravity can be formed by nozzle pressure to clean the screen.

  6. Filtration of wastewater after cleaning of corn, potato, cassava, sweet potato, etc.


Working principle

The fine wedge (arc screen) is the purpose of external high-speed pumping of fluid material into the curved grid, separating the solids and liquids by centrifugal force and water gravity versus shear motion in the screen.

At the same time, the solid is collected online, and the screen is continuously flushed with the liquid flowing down the drum to make it play a role in self-purification, thereby completing the whole process of continuous self-cleaning and solid collection of the screen.
