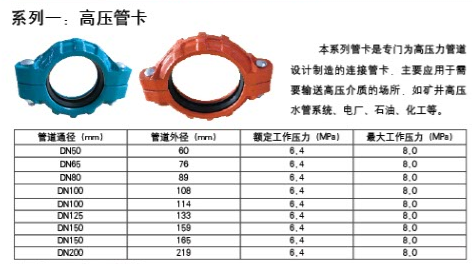

High pressure pipe clamp

The series pipe clamp is designed and manufactured for high pressure pipe, it is mainly used for the place where the high pressure medium is transferred, such as mine high pressure water pipe system, electric plant, petroleum, chemical, etc.

Technical Feature

  • High pressure
  • -
  • -
  • -
  • -
  • -
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~200

PRIMARY PARAMETERS

Material
304  201  304L  316  316L  Customer's request
Standard
ASTM  AISI  GB  JIS  Customers' request
Thickness range
-
Tolerance (mm)
-
Lead time
5
Material brand
-
Place of original
China
Seam type
Seamless
Surface
No.1

MODEL SPECIFICATIONS

Model DN50 DN65 DN80 DN100 DN100 DN125 DN150 DN150 DN200
Outer diameter(mm) 60 76 89 108 114 133 159 165 219
Working pressure(Mpa) 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4
Max.Pressure(Mpa) 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0

DETAIL DESCRIPTION


High pressure pipe clamp
