electric generator
Genset Model | ENC-200 | |
Prime Power KW/KVA | 200/250 | |
Standby Power KW/KVA | 220/275 | |

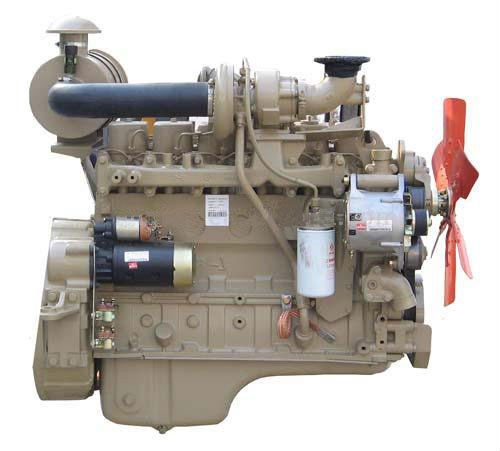

Engine | Brand: |
|
Model | 6CTAA8.9-G2 | |
Type: | Water-cooled, 4 strokes, direct injection, wet cylinder liner, 1500rpm | |
Cylinder No | 6 | |
Displacement (L) | 8.9 | |
Bore X Stroke (mm) | 114*135 | |
Inspiration | Turbocharged | |
Generator | Brand: | Stamford /Leroysomer Alternator |
Model | UCI274H / LSA46.2L6 | |
Rate Power | 200 | |
Frequency | 50HZ/1500rpm 60HZ/1800rpm | |
Phase/Connection | 3-phase 4-wire ,Y type connection | |
Voltage Regulation | AVR | |
| Dimension (mm) | 3400*1200*2000 |
Net Weight (kg) | 3000 |

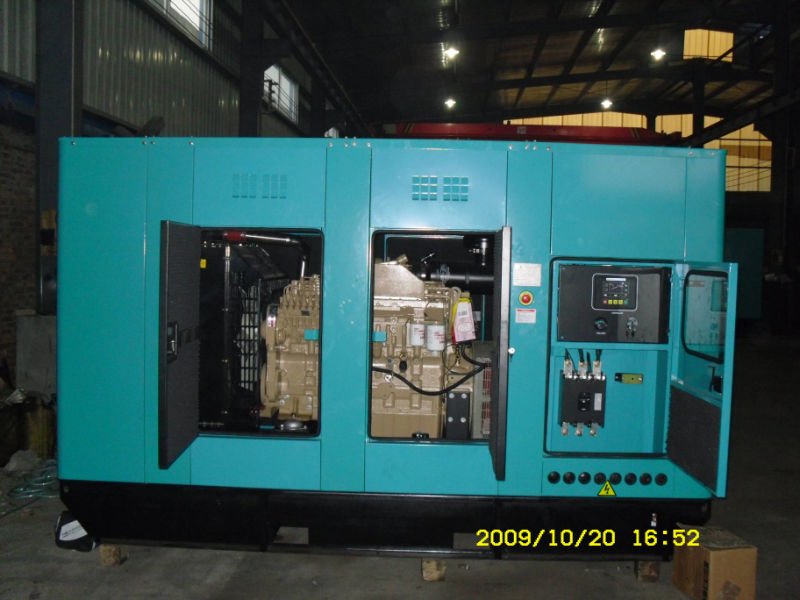

Components of the set
1) Diesel engine
2) Generator
3) Separating screen
4) Low noise box

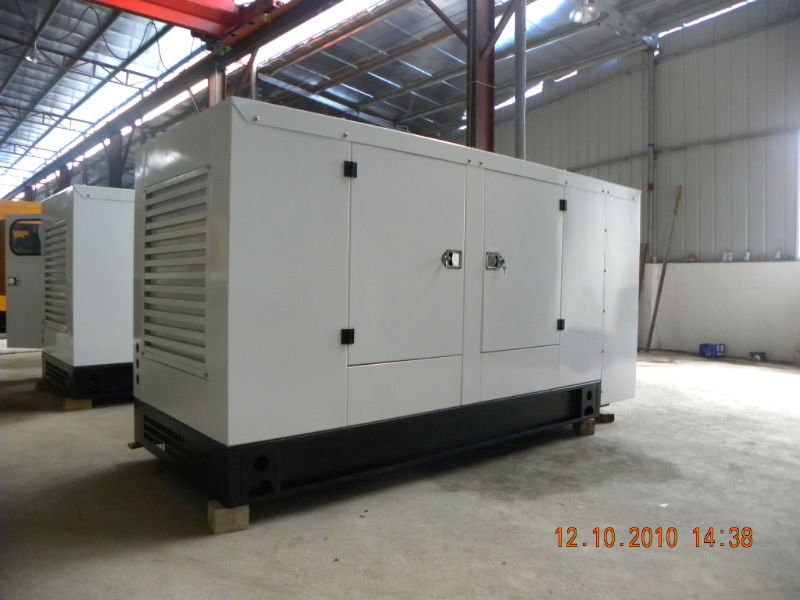

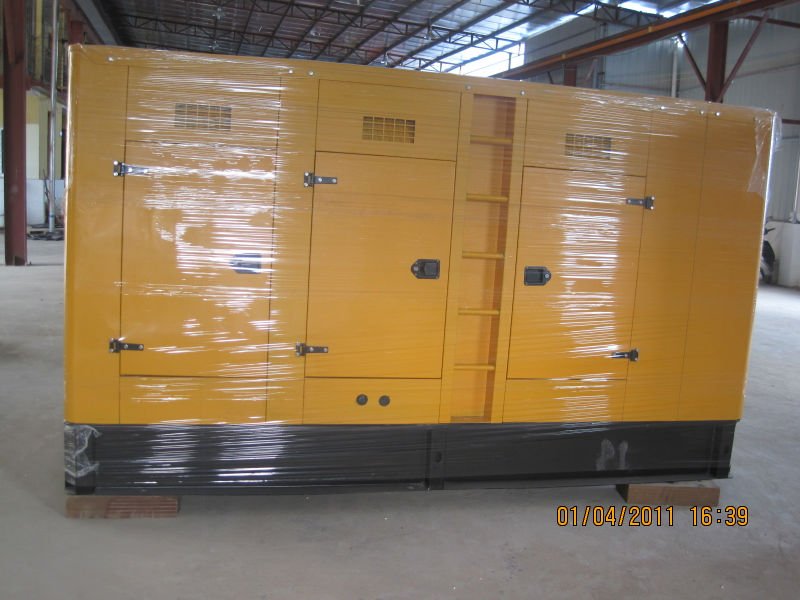

Sound proof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
