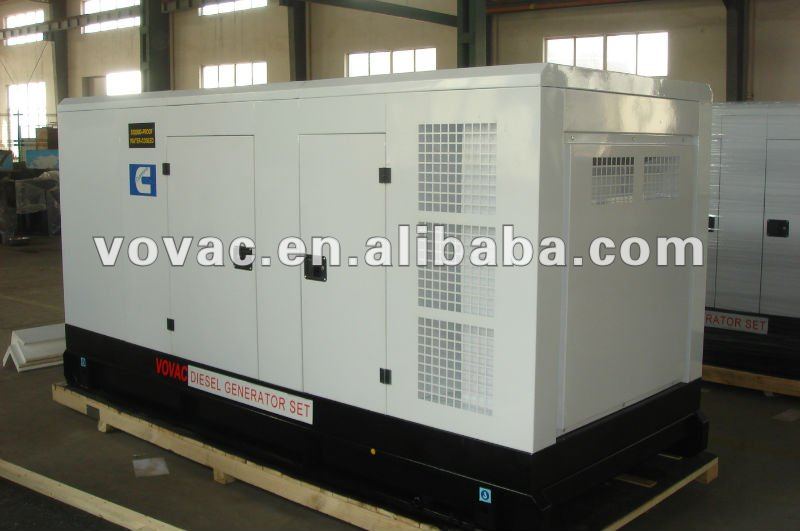

This series diesel generator set is powered by Cummins series diesel engine .
Specification of super silent diesel generator:
- Output range:40KW(50KVA) up to 800KW(1,000KVA)
- Engine model:4BTA3.9-G,6BT5.9-G,6BTA5.9-G,6BTAA5.9-G,6CTAA83-G,NTA855-G,KTA19-G,KTAA19-G,KT38-G,KTA38-G,KTA50-G
- Alternator:Stamford,Leroy Somer,Marathon series
- Water-cooled
- 8hrs operation base tank
- Key start/auto start
- Sound-proof/weather-proof canopy is optional
- 230/400VAC,50Hz/60Hz,0.8pF three phase and four wires alternating current output
- Frequency:≤3%
- Frequency at stable state:≤0.5%
- Frequency deviation at instantaneous state:≤+10%
- Frequency return time:≤3s
- Voltage deviation at stable state:≤±1%
- Voltage deviation at instantaneous state:≤+20%
- Voltage return time:≤4s
- Voltage modulation:≤0.3%
- Standard configuration of gensets:
- Engine:Cummins diesel engine
- Engine type: water-cooled,in line four-stoke,Humit cylinder liner,direct injection
- Alternator:Marathon brushless alternator
18.Control system:
- Automatic alarm system:the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat,the water is over temperature,the oil pulls down,over speed,over load and over current
- Operation display:
a.unit voltage,tri-phase load current and frequency display
b.water temperature,oil pressure display
c.fuel level,fuel temperature display
d.audible and visual alarm lamps and buzzers
19. Starting system:DC alternator is used to start engine
20.Short circuit protection:MCCB air switch
21.Cooling system:combined cooling water tank fitted to meet the requirement of radiation at ambient temperature40
22.Filter system:oil,fuel and air filter
23.Accessories:exhaust elbow,bellow,muffler
24.Supply standard collocation:
- diesel engine with all accessories,3filter,electric systems
- alternator
- steel structure
- fan and water tank cooling system
- flange connector
- 12/24v starting motor and charge engine
- air cleaner,fuel cleaner,oil cleaner
- on-board control panel
- MCCB air conservation switch
- 12/24v starting accumulator and battery line
- set shock absorber
- high-efficient silencer
Packing: wooden case
