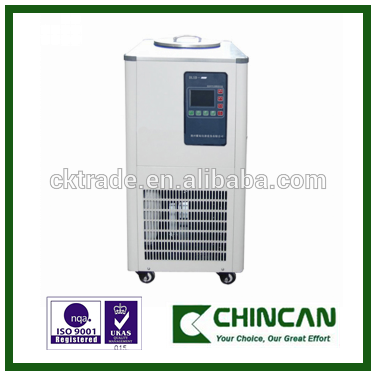

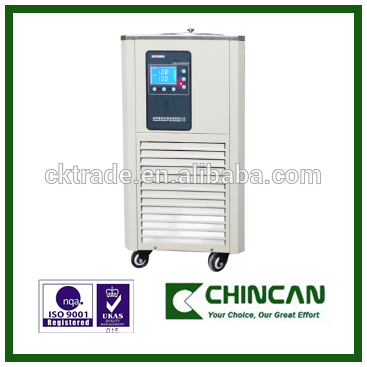

DLSB series 3L~30L Low Temperature Circulating Pump Chiller for Evaporator
Low-temperature coolant circulation pump is one for experiments provide low-temperature environment of equipment, it can be a rotary evaporator, the glass reactor, circulating water Multi-purpose vacuum pumps and other ancillary uses, at a low temperature chemical reaction, and a low temperature cooling liquid circulating apparatus as the new cryogenic fluid circulation device can provide better cooling effect.
1.Precision parts parts adopt foreign first-class brand, quality of the equipment is more reliable, more superior performance.
2.Device easy to operate, can display digital temperature and set temperature.
3.SUS304,316 circulatory system uses corrosion and polymer materials, with anti-pollution cryogenic liquid, rust, corrosion characteristics.
4.Outer loop and one bath opening large capacity, can achieve frozen coolant tank and provide external multi-use functions.

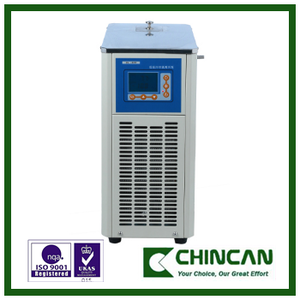

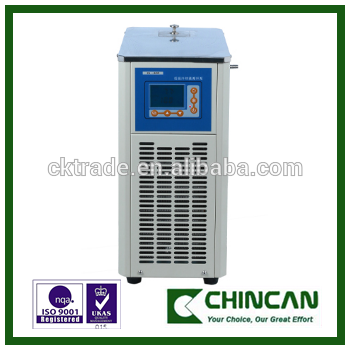

DLSB-2000
| Model | DLSB-2000 | |
| Temperature range(℃) | -15~Room temp | |
| Temperature stability (℃) | ±2 | |
| Cooling capacity(W) | 10℃ | 1000 |
| 0℃ | 970 | |
| -10℃ | 620 | |
| -20℃ | - | |
| Flow(L/min) | 20 | |
| Lift(m) | 5~7 | |
| Bath volume(L) | 3 | |
| Bath opening(mm) | Diameter220×150 | |
| Ambient temperature(℃) | 5~26 | |
| Power supply(V/Hz) | 220/50 | |
| Overall Power(W) | 600 | |
| Shell material | Cold plate electrostatic spray | |
| Dimensions(mm) | 410L×230W×490H | |
| Weight(kg) | 22 |
DLSB-5/10;DLSB-3/10;DLSB-5/20
| Model | DLSB-5/10 | DLSB-3/20 | DLSB-5/20 | |
| Temperature range(℃) | -10~Room temp | -20~Room temp | ||
| Temperature stability(℃) | ±2 | |||
| Cooling capacity (W) | 10℃ | 1250 | 1000 | 1150 |
| 0℃ | 970 | 970 | 880 | |
| -10℃ | 650 | 620 | 600 | |
| -20℃ | - | 620 | 320 | |
| Flow(L/min) | 12 | |||
| Lift(m) | 5~7 | |||
| Bath volume(L) | 5 | 3 | 5 | |
| Bath opening(mm) | Dia210×180 | Dia220×150 | Dia210×180 | |
| Ambient temperature(℃) | 5~25 | |||
| Power supply(V/Hz) | 220/50 | |||
| Overall Power(W) | 600 | 660 | 600 | |
| Shell material | Cold plate electrostatic spray | |||
| Dimensions(mm) | 465L×325W×730H | 410L×230W×490H | 465L×325W×730H | |
| Weight(kg) | 41 | 38 | 41 |
DLSB-10/30;DLSB-20/30;DLSB-30/30
| Model | DLSB-10/30 | DLSB-20/30 | DLSB-30/30 | |
| Temperature range(℃) | -30~Room temp | |||
| Temperature stability(℃) | ±2 | |||
| Cooling capacity (W) | 10℃ | 1860 | 2550 | 3240 |
| 0℃ | 1240 | 1750 | 2820 | |
| -10℃ | 780 | 1070 | 1810 | |
| -20℃ | 310 | 720 | 1030 | |
| -30℃ | 50 | 300 | 520 | |
| Flow(L/min) | 12 | |||
| Lift(m) | 5~7 | |||
| Bath volume(L) | 10 | 20 | 30 | |
| Bath opening(mm) | Dia210×250 | Dia280×300 | Dia320×235 | |
| Ambient temperature(℃) | 5~25 | |||
| Power supply(V/Hz) | 220/50 | |||
| Overall Power(W) | 1100 | 1400 | 1800 | |
| Shell material | Cold plate electrostatic spray | |||
| Dimensions(mm) | 510L×365W×800H | 575L×495W×965H | 665L×545W×1010H | |
| Weight(kg) | 50 | 90 | 100 |
You May Like:

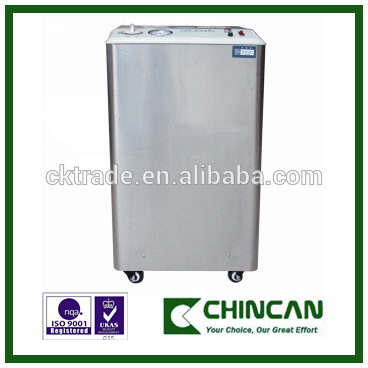

[Vacuum Pump]

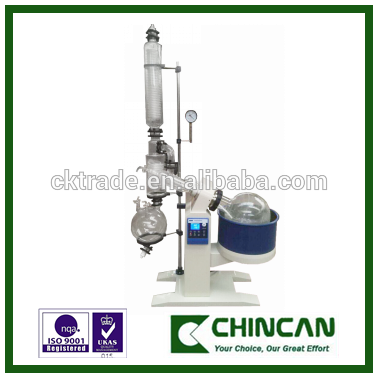

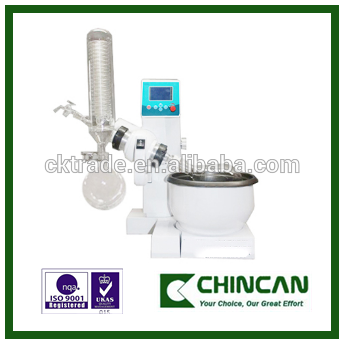

[Rotary Evaporator]
