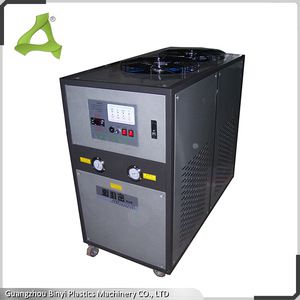

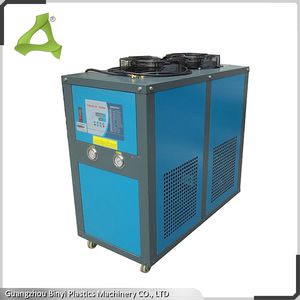

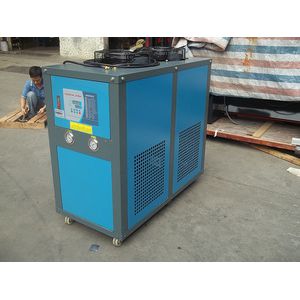

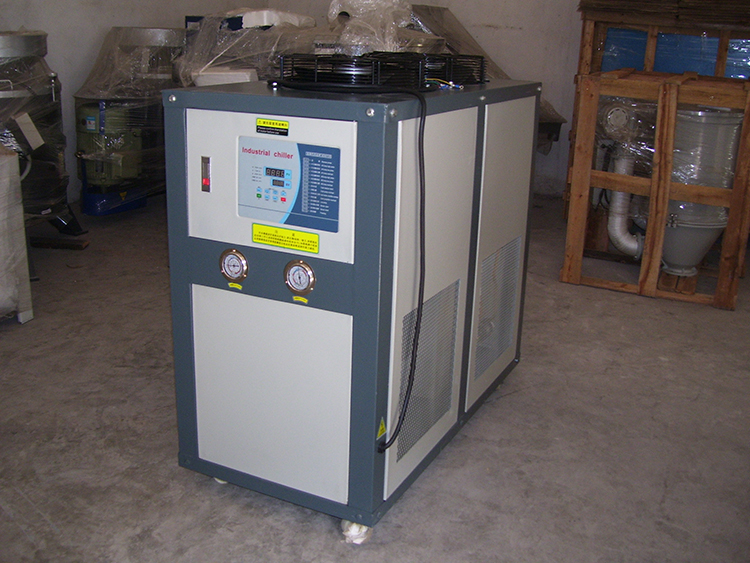

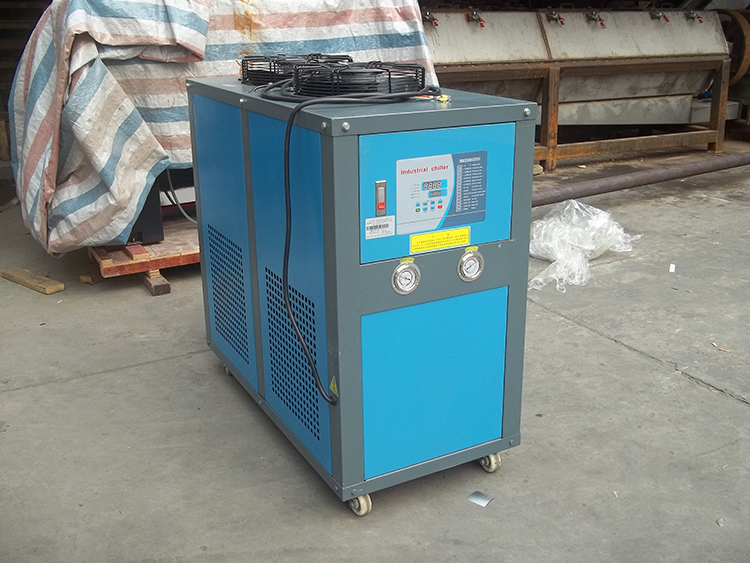

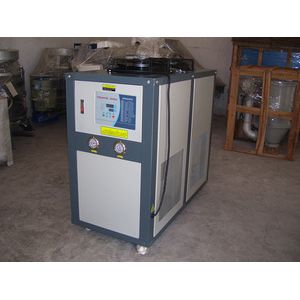

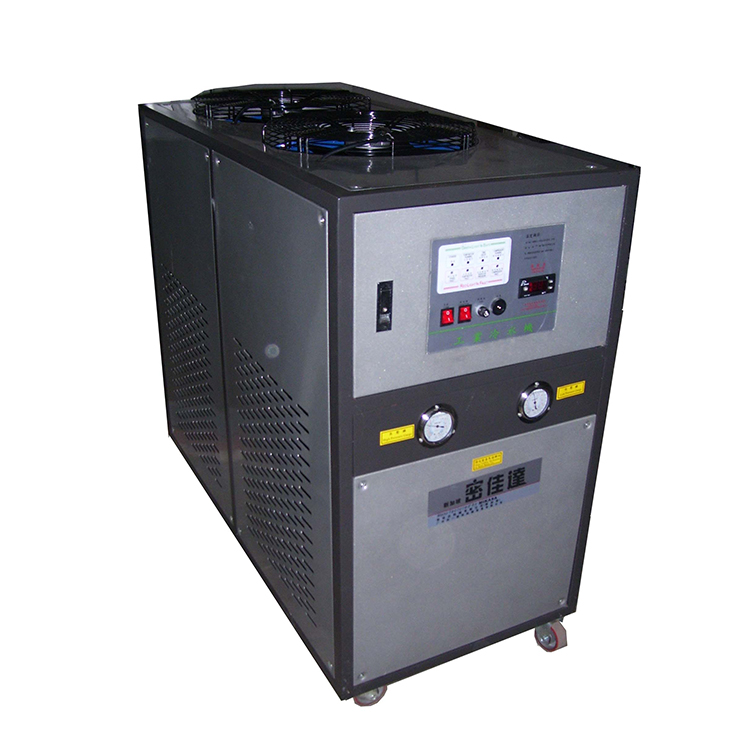

Air Cooled Water Chiller System/ Industrial Water Chiller From China Manufacturer
our services:
-Pre-sale services
Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere.
-After-sale services
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance.
Usage:
Mainly used in plastic processing machinery mould cooling, can greatly improve the plastic surface smoothness, reduce the product lines, no shrinkage, no deformation, easy demoulding. Hence maximizes productivity of plastic molding manufacturing.

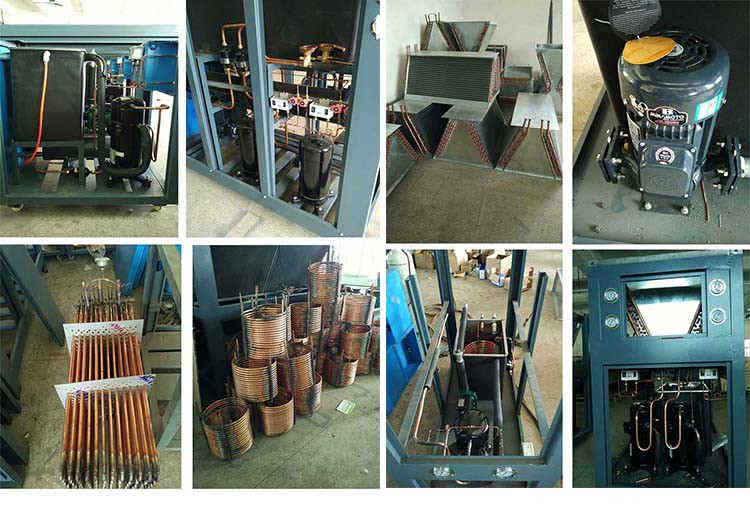

Internal structure:
| Technical Parameter of Air Cooling | |||||||||
| Model | YMAC-2HP | YMAC-5HP | YMAC-10HP | YMAC-15HP | YMAC-20HP | YMAC-30HP | YMAC-40HP | ||
| Nominal output | 50HZ | Btu/h | 21560 | 36427 | 70977 | 121181 | 189272 | 252363 | 378544 |
| KW | 6.36 | 10.67 | 20.79 | 36.96 | 55.44 | 74.9 | 110.88 | ||
| Kcal/h | 5433 | 9175 | 17876 | 31780 | 47670 | 63560 | 95340 | ||
| USRT | 1.8 | 3.0 | 6.0 | 10.5 | 15.8 | 21.0 | 31.0 | ||
| Power Input | Single-phase 220V/50HZ | 380-415V/3PHASE/50HZ | |||||||
| Compressor power | KW | 1.82 | 3.58 | 7.38 | 11.84 | 7.38*2 | 11.84*2 | 15.02*2 | |
| Flow regulator | Capillary vessel / Ther moexpension valve | ||||||||
| Refrigerant | R22 / R401A / R407C / R404A / R507 / R134A | ||||||||
| Fan power | KW | 0.25 | 0.2*2 | 0.45*2 | 0.8*2 | 0.5*4 | 0.45*6 | 0.5*8 | |
| Evaporator | Water tank capacity | L | 50 | 55 | 210 | 360 | 510 | 510 | 600 |
| Standard freezing water flow | m³/h | 1.04 | 1.84 | 3.58 | 6.37 | 9.55 | 12.73 | 19.10 | |
| Diameter of standard nipple | DN | 25 | 25 | 32 | 40 | 50 | 65 | 80 | |
| Built-in pump | Horsepower | HP | 0.5 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Machine weight | weight | KG | 102 | 176 | 380 | 710 | 830 | 1400 | 1520 |
| Measure(mm) | Long | 800 | 1200 | 1500 | 1800 | 1960 | 2238 | 2998 | |
| Wide | 520 | 580 | 900 | 995 | 1050 | 1155 | 1158 | ||
| Hight | 1150 | 1180 | 1500 | 1650 | 1935 | 1980 | 1988 |
Feature:
1. Well-known brands of compressors and efficient shell and tube condenser, evaporator combination, super refrigeration, quiet and save power.
2. microcomputer full function control, easy to operate, can accurately control the temperature from 3 degrees to 50 degrees.
3. New design stainless steel open water tank, easy to clean and repair.
4. Reasonable internal pipeline layout, effectively reduce energy consumption.
5. With current overload protection, high and low voltage suppression and electronic time delay, and other perfect security protection device, abnormal indication system.
6. Liquid crystal display cold water outlet, cold water inlet and device setting temperature.
