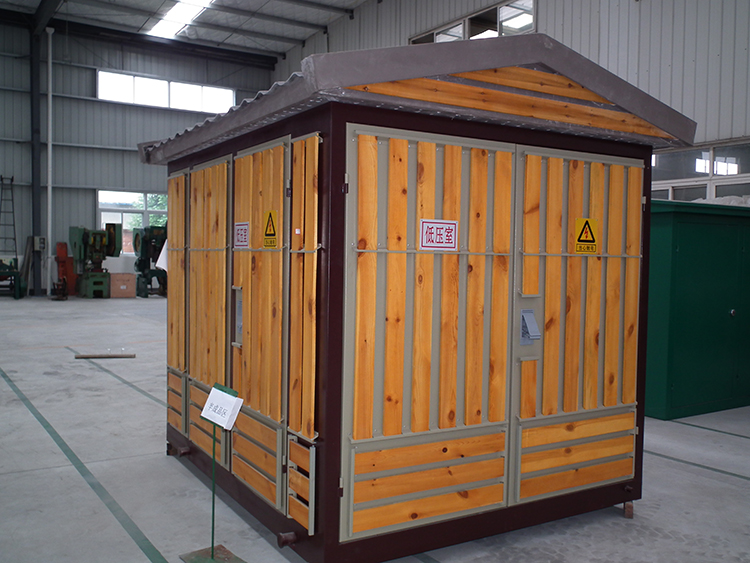

Ybw Box-type Electric Compact Package Substation 1000 Kva
No. | Description | Requirement |
1 | Altitude | ≤1000m |
2 | Ambient air temperature | -25℃ ~ +40℃ |
3 | Average temperature (within 24h) | ≤ +35℃ |
4 | Wind speed | ≤ 35m/s |
5 | Average humidity | ≤90%(+25℃) |
6 | Horizontal acceleration | ≤ 0.4m/S2 |
7 | Vertical acceleration | ≤ 0.2m/s |
8 | Inclination(vertical installation) | ≤ 3° |
9 | The equipment shall be installed in a place where there is no severe vibration or impact. | |
10 | The installation site shall not have conductive dust and corrosive, inflammable, explosive dangerous objects that are harmful to metal and insulator. | |
11 | Customers can negotiate with us when having special requirements. |
No. | Items | Unit | High voltage switchgear | Transformer | Low voltage switchgear |
1 | Rated voltage Ue | kV | 7.2 12 | 6/0.4 10/0.4 | 0.4 |
2 | Rated capacity Se | kVA |
| 1 type 200-2500 | Maximum 2×1250 |
2 type50-800 | |||||
3 | Rated current Le | A | 200-630 | 144/3600 | 100-3000 |
4 | Rated breaking current | A | Load switch 400-630A |
| 15-63 |
Combined appliance depends on the fuse | |||||
5 | Rated short-time withstand current(s) | kA | 20×(2) |
| 15×1 |
12.5×(4) | |||||
6 | Rated peak withstand current | kA | 31.5 50 |
| 30×1 |
30 | |||||
7 | Rated making current | kA | 31.5 50 |
| 63 |
8 | Power frequency withstand current 1min | kA | Phase to the ground/ phase to phase 30/42 | Oil immersion: 35/5min | 2kV(<=300V) |
isolation break34/48 | Dry type:28/5min | 2.5kV(300V 600 V) | |||
9 | Lighting impulse |
| Phase to the ground/ phase to phase 60/75 | 75 |
|
isolation break75/85 | 75 | ||||
10 | Noise level | dB |
| Oil immersion<55 |
|
| Dry type<65 | ||||
11 | Protection degree |
|
| IP23D |
|
12 | External dimension |
| Choose different external dimension according to the project and selected high and low voltage switchgear and transformer. |

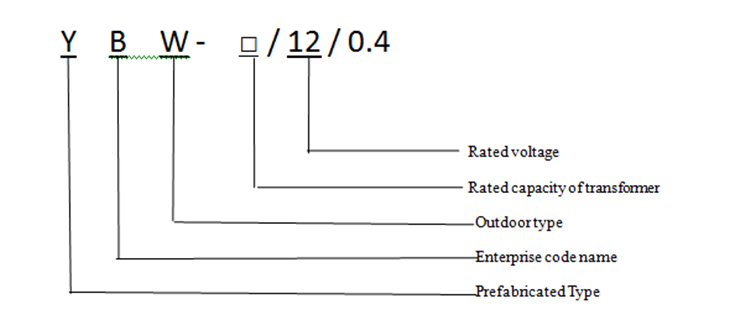

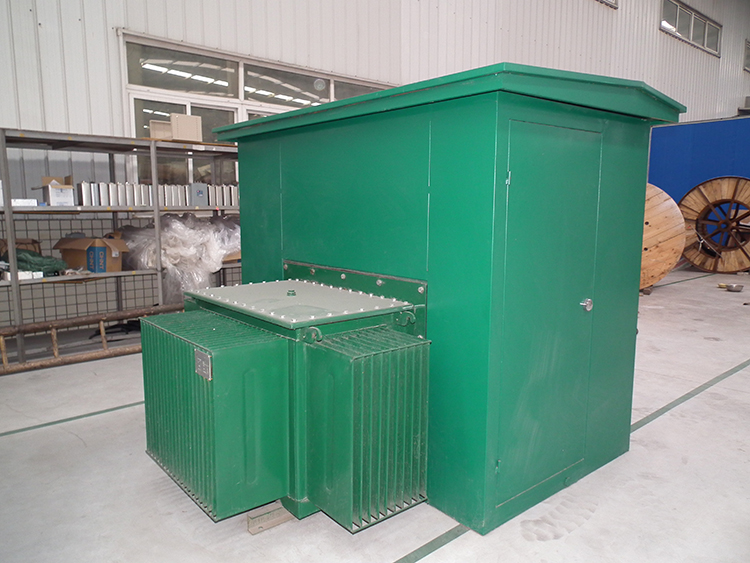

Product Features:

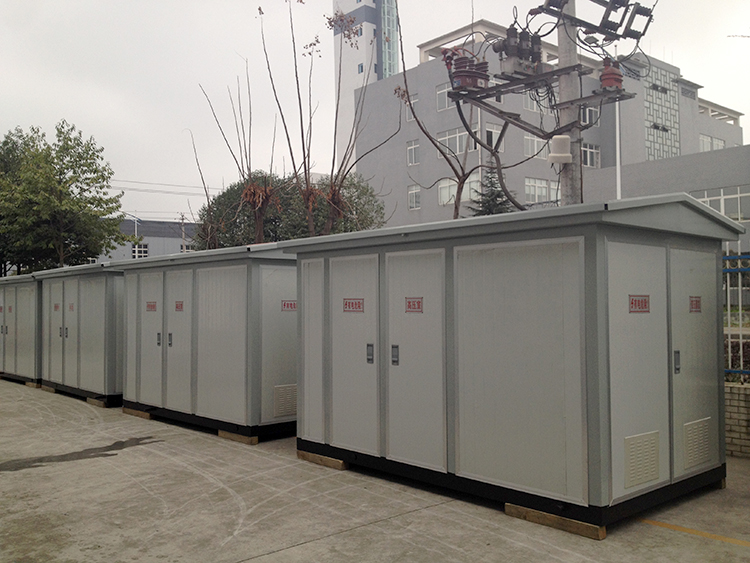

ü It is applicable for power receiving and distributing in power distribution systems such as urban high-rise buildings, urban and rural buildings, luxury villas, square parks, residential areas, high-tech development zones, small and medium-sized factories, mining oilfields and temporary construction sites.
ü It has the characteristics of strong completeness, small size, compact structure, safe and reliable operation, convenient maintenance and mobility, etc., and its floor space of the same capacity is usually only 1/10-1/5, compared with the conventional transformer substation, which has reduced the design workload, construction capacity and construction cost.
ü The product meets the standards of GB/T17467 ”High Voltage and Low Voltage Prefabricated Transformer Substation” and SD320 ”Technical Requirements of Box Type Transformer Substation”.
