electric transformers substation ip67 momentary waterproof switch hot selling china 3 phase distribution transformer
YBM three phase compact distribution substation 315kva 400kva 250kva 1000kva 11kv electric transformers substation

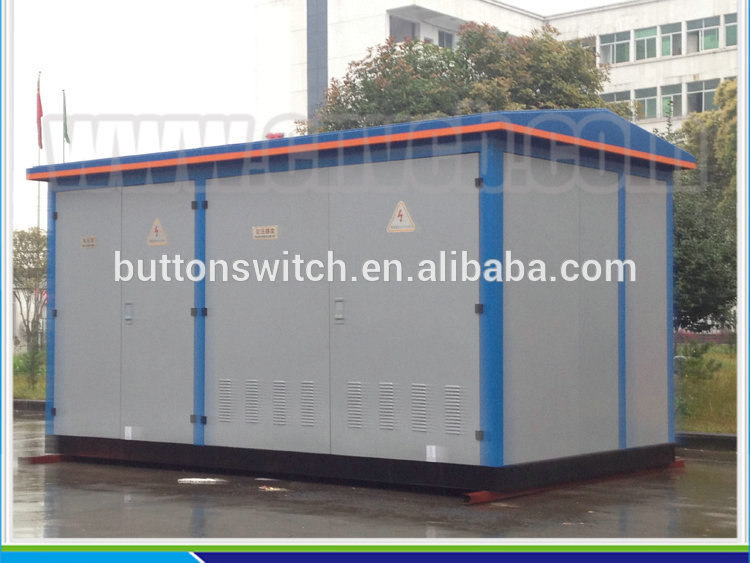

Outdoor YBM Medium Voltage European style box type prefabricated Substation
Model:
Y---------------------------------------prefabricated type
B---------------------------------------substation
( )--------------------------------------structure characteristics
P M
( )--------------------------------------design No.
( )--------------------------------------HV Switchgear with main switch
( )--------------------------------------HV Switchgear with operating mechanism
( )--------------------------------------transformer rated capacity KVA
electric transformers substation
General:

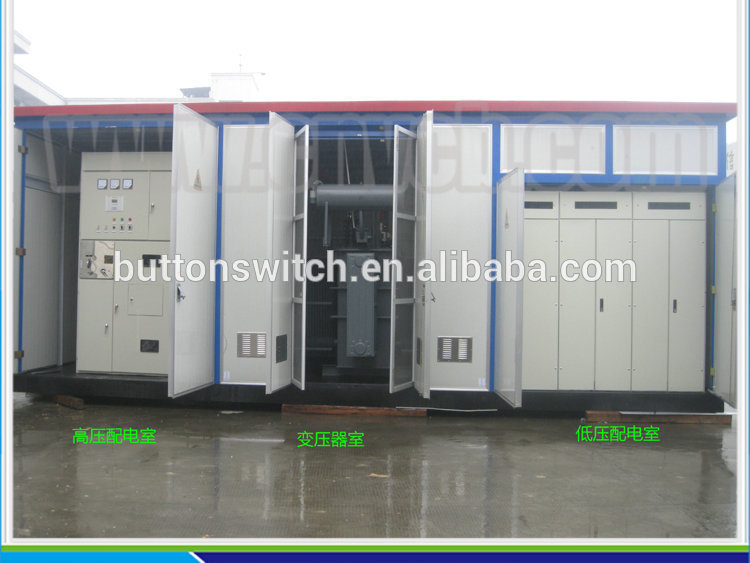

Our YBM, YBP series of prefabricated substation is the combination of the HV electrical apparatus, transformer, and low voltage transformer equipments and therefore is used in the high-rise buildings, residential districts, urban and rural construction, hi-tech development zone, small and medium size enterprise, mine and oil fields and the temporary construction sites to receive and distribute the power.
YBM, YBP series of prefabricated substation is complete set, small sized, compacted structure, running safely, easy maintenance, and mobile. And it only takes the 1/10-1/5 of the space of the same capacity of civil construction distribution, and therefore greatly reduces the construction cost. It can be used in the ring net distribution system, double power distribution system or radiator terminal distribution system. It is the new complete set equipment used for rural and urban substation construction and reformation. electric transformers substation
YBM, YBP series of prefabricated substation is fully in accordance with the standard of SD320-1992 (the technology of Boxes substation) and the standard of IEC,GB/T 17467-1998 (HV/LV prefabricated substation). The shell is made of non-metal, composite board or the steel sheet as per the users.
Technical parameters:
| No. | Unit | Item | HV electrical apparatus | Transformer | LV electrical apparatus |
| 1 | Rated voltage Ue | KV | 35KV~0.4KV | 35KV~0.4KV | 0.4 |
| 2 | Rated capacity Se | KVA | 50~3000KVA | P: 200~3000 | |
| M: 50~400 | |||||
| 3 | Rated current le | A | 200~630 | 100~3000 | |
| 4 | Rated drop-out current | A | Load switch400~630A | 15~63 | |
| KA | Composite apparatus | ||||
| 5 | Rated short time withstand current (S) | KA(xs) | 20*(2) | 200~400KVA | 15*1 |
| 12.5*(4) | 400KVA | 30*1 | |||
| 6 | Rated withstand current (peak) | KA | 31.5,50 | 200~400KVA | 30 |
| 400KVA | 63 | ||||
| 7 | Rated making current | KA | 31.5,50 | ||
| 8 | Power frequency withstand voltage 1min | KA | Phase-earth and phase-phase 32,40 | Oil-immersed:35/5min | ≤300V:2KV |
| 34,48 | Dry-type:28/5min | 300,600V:2.5KV | |||
| 9 | Lightning impulse | KV | Phase-earth and phase-phase 60,75 | 75 | |
| Isolation fracture:75,85 | 75 | ||||
| 10 | Noise level | dB | electric transformers substation | Oil-immersed:55 | |
| Dry-type:65 | |||||
| 11 | Protection degree | IP23D | |||
| 12 | External dimension | as per the capacity of the transformer |

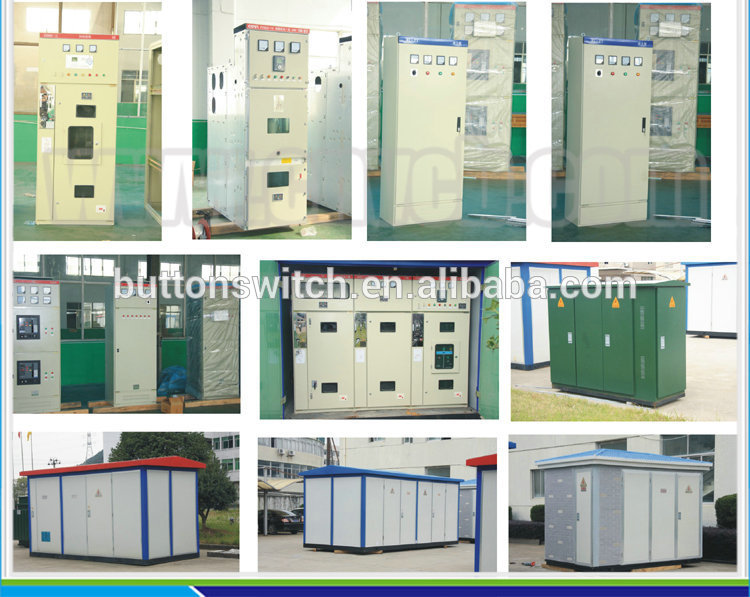

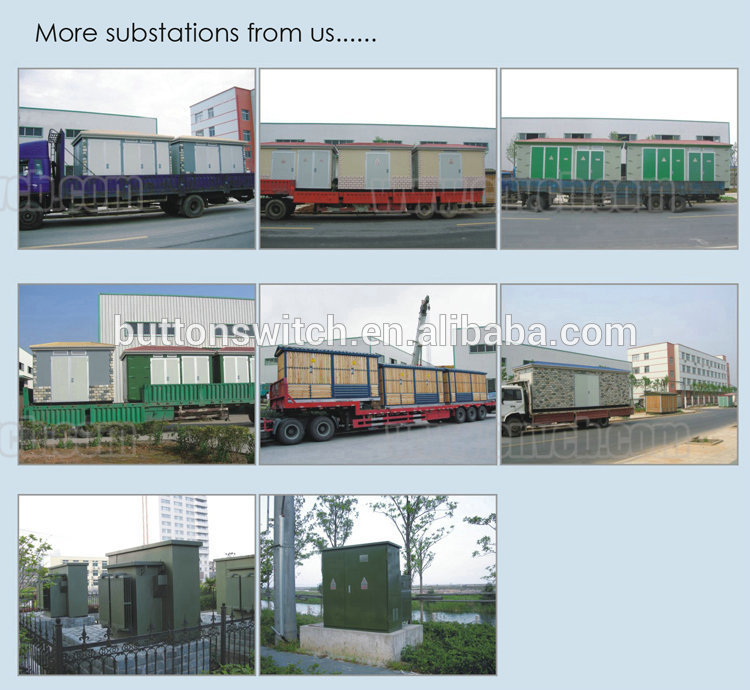

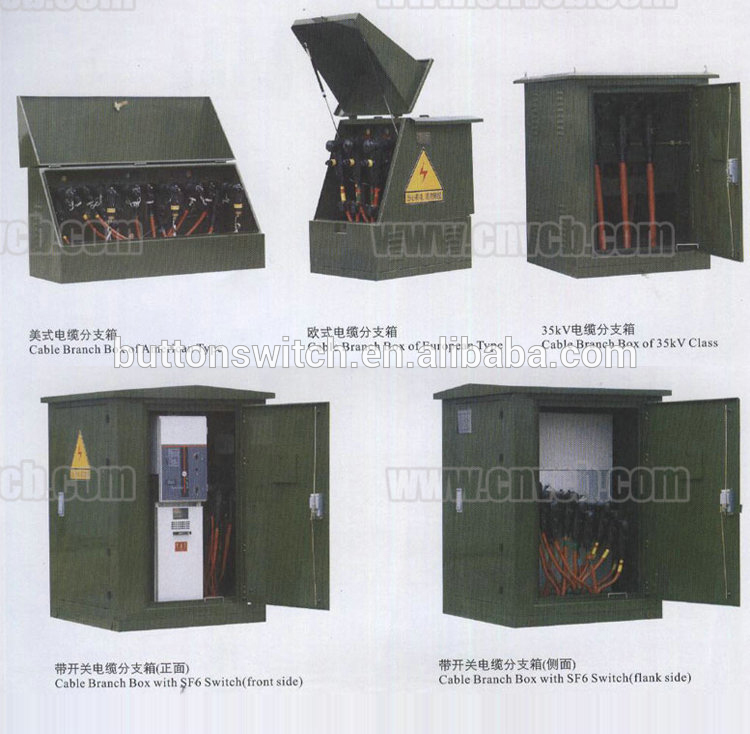

Other Different kinds of High voltage power transmission products from us:
electric transformers substation
Trade terms:
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Ningbo,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 10-30 days according to order quantities.
electric transformers substation
Feedback:
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help. electric transformers substation hot selling china 3 phase distribution transformer
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests.
2. Competitive production capacity: monthly production more than 1500 sets.
3. Manufactuer's price: Factory direct sale, most competitive price in China.
electric transformers substation
Our company:
Our substations,switchgears, transformers sell well all over the world, and are exported to Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa and so on. We have won a good reputation among customers at home and abroad. Our price,quality and service are the most competitive in China. electric transformers substation
Welcome to our factory! We are your best choice!
Welcome to contact us for more details:
ATTN: Power
Yueqing Abbeycon Electric Co., Ltd.
Tel: 0086-577-89008222 (24 hours' service)
Skype: cccmtth
E-mail: power(at)cnvcb.com
Website: www.cnvcb.com
electric transformers substation
(Main products: substation, switchgear, cabinet, panel, high voltage transformer panel, pad mount transformer,distribution transformer, power distribution substation)
