Specifications:

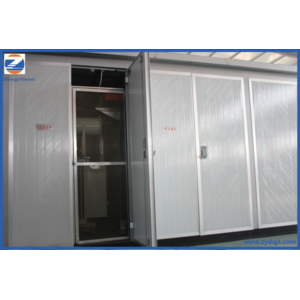

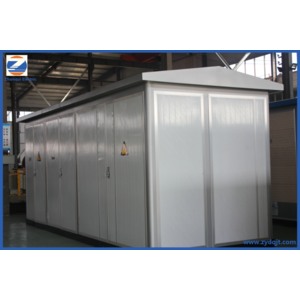

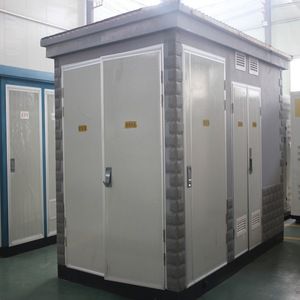

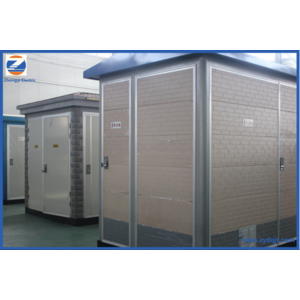

- box type electrical transformer substation
- outdoor type
- oil type or dry type transformer
- European or American transformer substation
- voltage classes are applicable to 35KV and below
- To be customized according to your design drawing
China Supplier power distribution electrical Transformer Substation
Products meet GB17467-1998 "high and low voltage prefabricated substation" and IEC1330 standards. The voltage classes are applicable to 35KV and below, the small unattended substation, with main interior capacity of 2000KVA and below,
Functions:
The prefabricated substation can complete the transformation, distribution, transmission, measurement, compensation of electrical energy, system control and protection as well as communication functions.

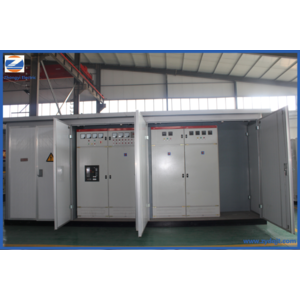

Box substation, also known as Euripean Electric transformer /Box Transformer Substation , is made up of:
high-voltage switchgear,
low-voltage power distribution panel,
distribution transformer
and shell.
Main Characteristics :
- Suitable for long time outdoor use with guarantee of antisepsis,water proof, and dust proof
- The cabinet style transformer substation is a power distribution device composed of 3 parts : high voltage switchgear, power transformer,low voltage switchgear.
- compared with civil work style, it had advantage: great flexibility, small volume, small room occupation, low cost, rapid construction, high reliabilitiy, much more beautiful appearance.
Application place:
- widely used in urban power networkreconstruction, tall building, residential communities, industrial parks, commercial centers, airport, station and ports, schools, factories, etc
Technical Parameters:
Item | Unit | Data | |
High Voltage Unit | Rated Frequency | Hz | 50 |
Rated voltage | kV | 6 10 35 | |
Max working voltage | kV | 6.9 11.5 40.5 | |
Power frequency withstand voltage Between poles to earth/Isolating distance | kV | 32/36 42/48 95/118 | |
lightning impulse withstand voltage Between poles to earth/Isolating distance | kV | 60/70 75/85 185/215 | |
Rated current | A | 400 630 | |
Rated short-time withstand current | kA | 12.5(2S) 16(2S) 20(2S) | |
Rated peak withstand current | kA | 32.5 40 50 | |
Low Voltage unit | Rated voltage | V | 380 200 |
Rated current of main circuit | A | 100~3200 | |
Rated short-time withstand current | kA | 15 30 50 | |
Rated peak withstand current | kA | 30 63 110 | |
Branch circuit | A | 10 ~ 800 | |
Number of branch circuit | / | 1 ~ 12 | |
Compensation capacity | kVAR | 0 ~ 360 | |
Transformer unit | Rated capacity | kVA | 50~2000 |
Short-circuit impedance | % | 4 6 | |
Scope of branch connection | / | ±2×2.5% ±5% | |
Connection group symbol | / | Yyn0 Dyn11 |
Other Products
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces:

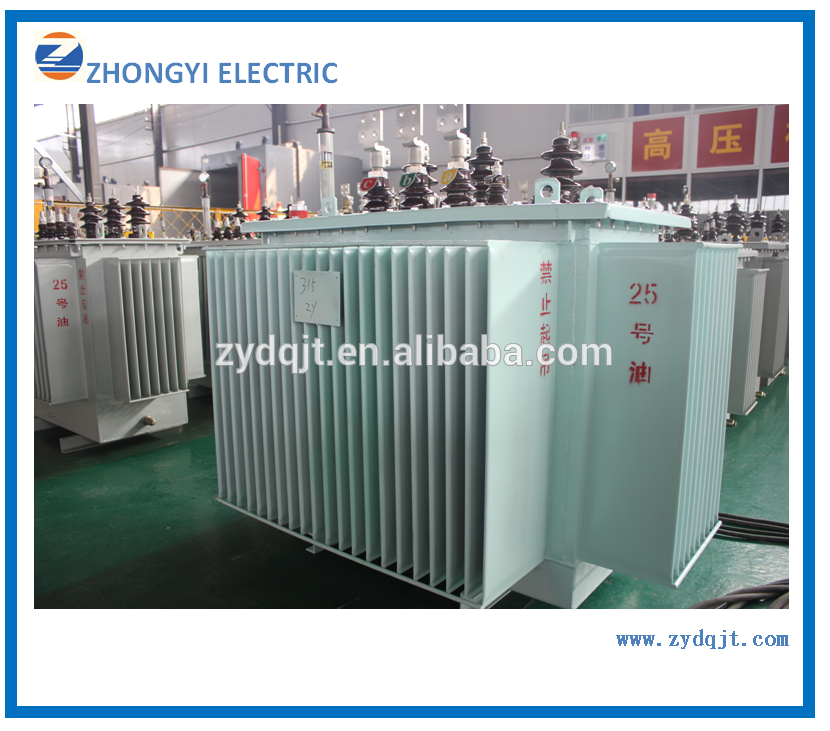

- oil-immersed power transformers,

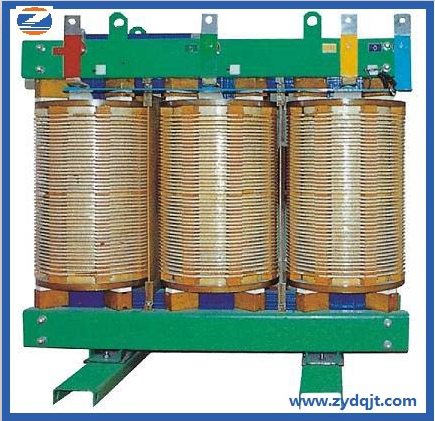

- dry-type transformers,
- power distribution electrical Transformer Substation,

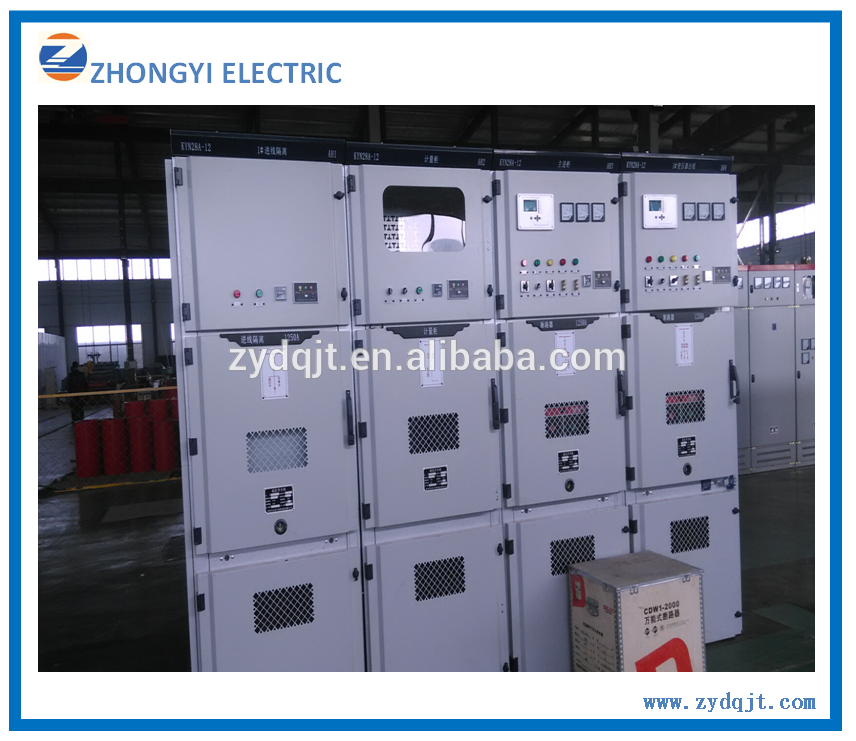

- high and low voltage switchgear assembly
- and a variety of special-type transformers.
our factory
Our company has passed the ISO9001-2015 international standard quality management system certification.
All performance indicators of the products have reached the relevant national standards and international standards.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
