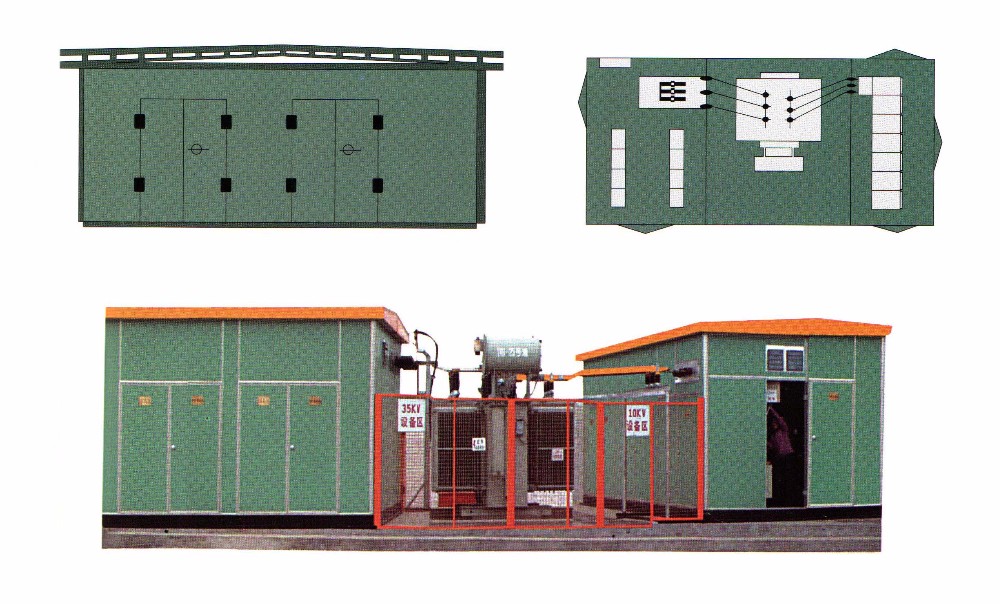

YBM(P) -40.5 Electrical Package Substation
Product Description
nsformer substation prefabricated substation Prefabricated transformer substation |
 500kva transformer substation prefabricated substation 1. Summary - Superior voltage is 40.5kv, subordinate voltage is 12kv or 7.2kv , Three phase / AC / 50HZ Outdoor substation.
YBM&YBP series prefabricated substation is the package unit including high-voltage devices, transformer, low voltage transformer and other devices. Applies to cities, towns,factories, large construction site and oilfields etc. Accept, converse and distribute electrical energy. YBM&YBP have the feature of small, easy to install, low costs, high integrated automation degree and safe reliable running etc.
2. Technical Parameter | Item | Unit | Data | | Rated voltage | KV | 40.5 | | Rated current | A | 630 1250 1600 2000 2500 | | Rated frequency | HZ | 50 | | Rated Rated short-time withstand current | KA | 25 31.5 | | Rated peak withstand current | KA | 63 80 | | Rated short-circuit breaking current | KA | 25 31.5 | | Rated short-circuit open and close current (peak) | KA | 63 80 | | Rated short-circuit duration time | S | 4 | | Rated operating sequence | | O-0.3s-CO-180s-CO | | Breaking time | MS | less than 80 | | Rated short-circuit breaking current (breaking times) | TIMES | 20 | | Mechanical life | TIMES | 10000 | | Rated operating voltage | V | DC110/AC110, DC220/AC220 |
 |
