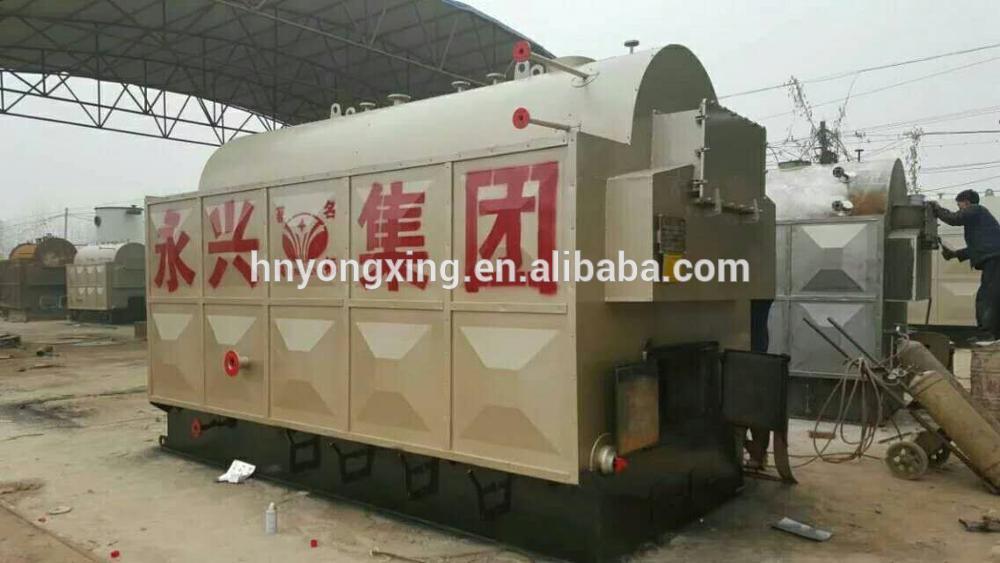

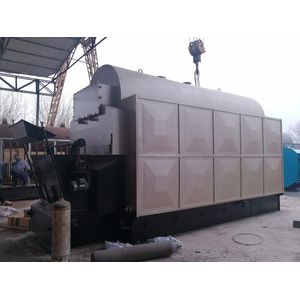

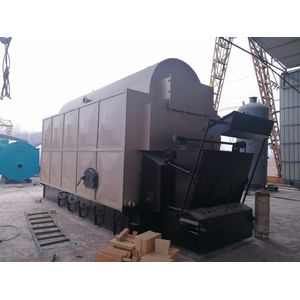

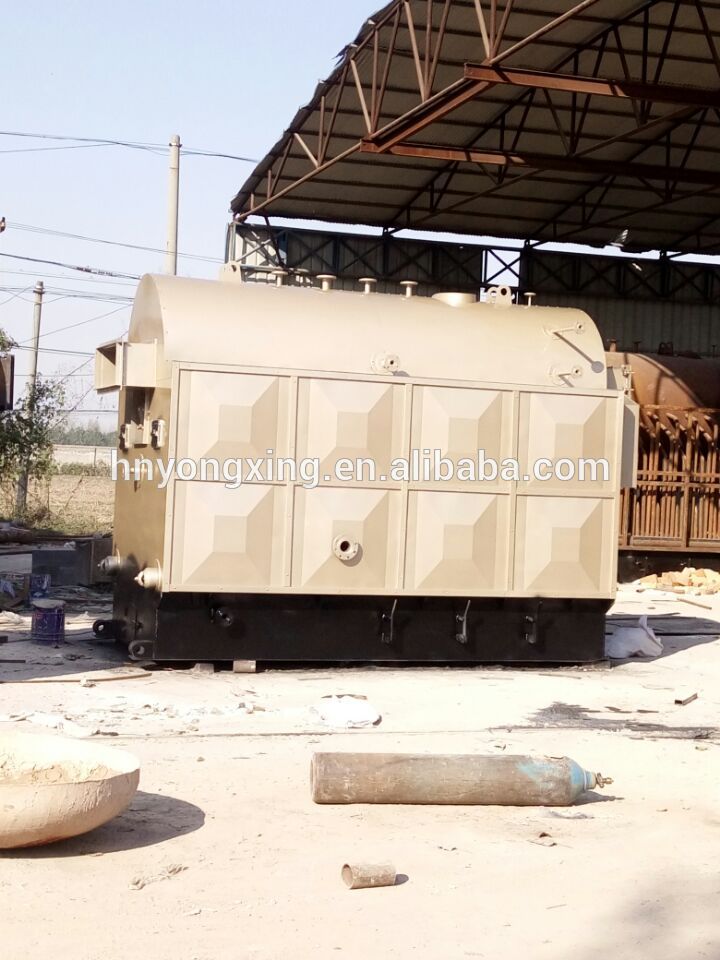

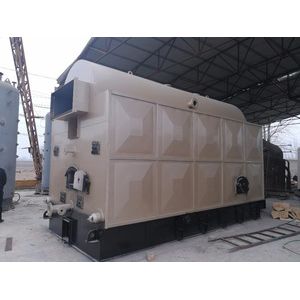

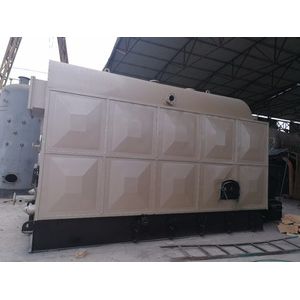

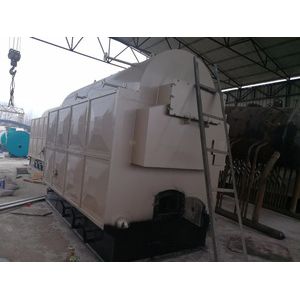

Description of 8 t/h automatic chain grate biomass coal fired steam boiler for sauna:

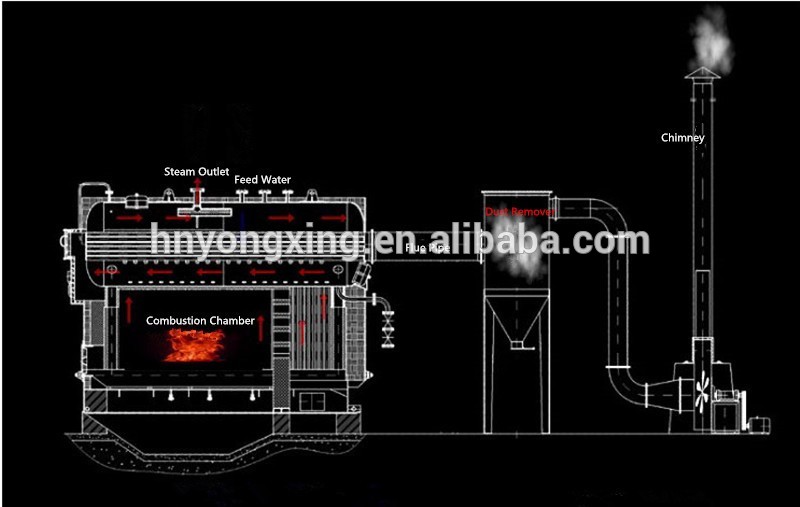

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.
Main Features of 8 t/h automatic chain grate biomass coal fired steam boiler for sauna:
- Automatic, Chain Grate, layer combustion;
- Automatic Control System---PLC control panel;
- Automatic Feeding System;
- Automatic water treatment plant (American FLECK);
- Automatic fuel combustion adjustment & feed water adjustment;
- Good coal adaptability and smoke eliminating effect;
- Protections: Low and high water level alarm, low water level interlock protection;

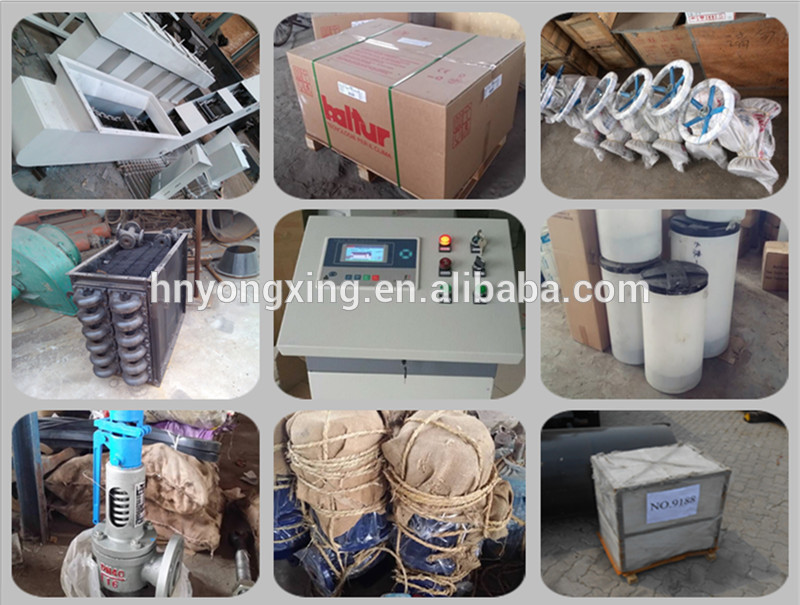

- Equipped with Economizer, Induced Draft Fan, Forced Draft Fan, Automatic Feeding System, and all Safety Devices by law.

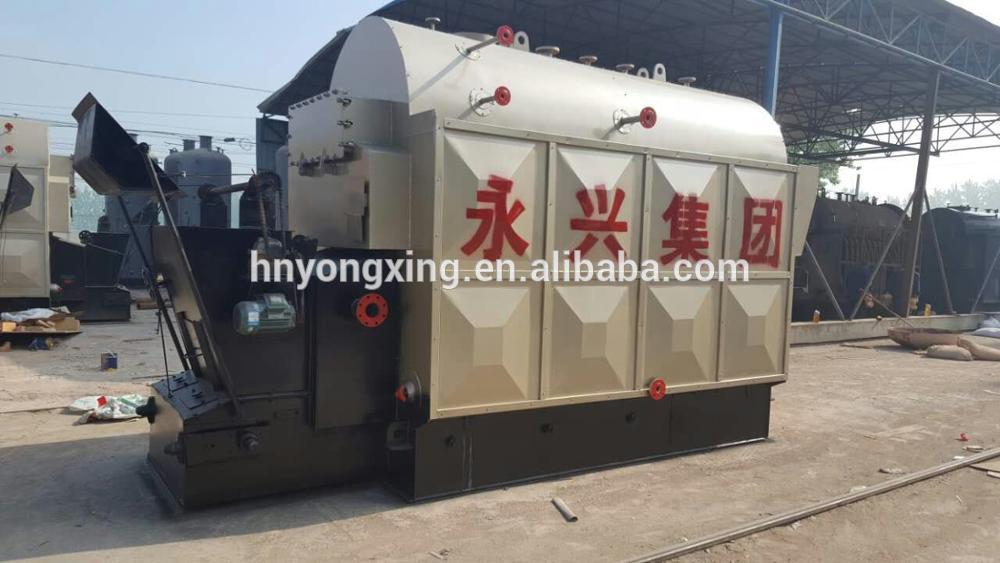

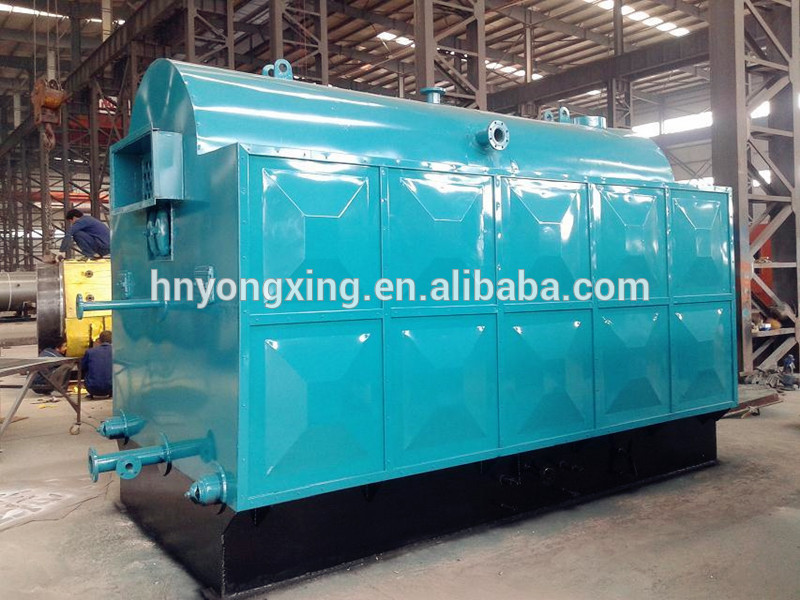

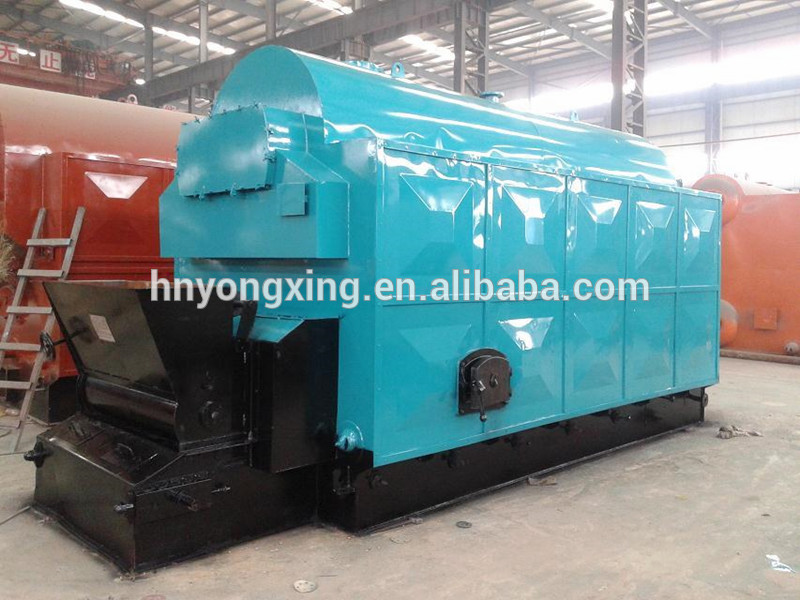

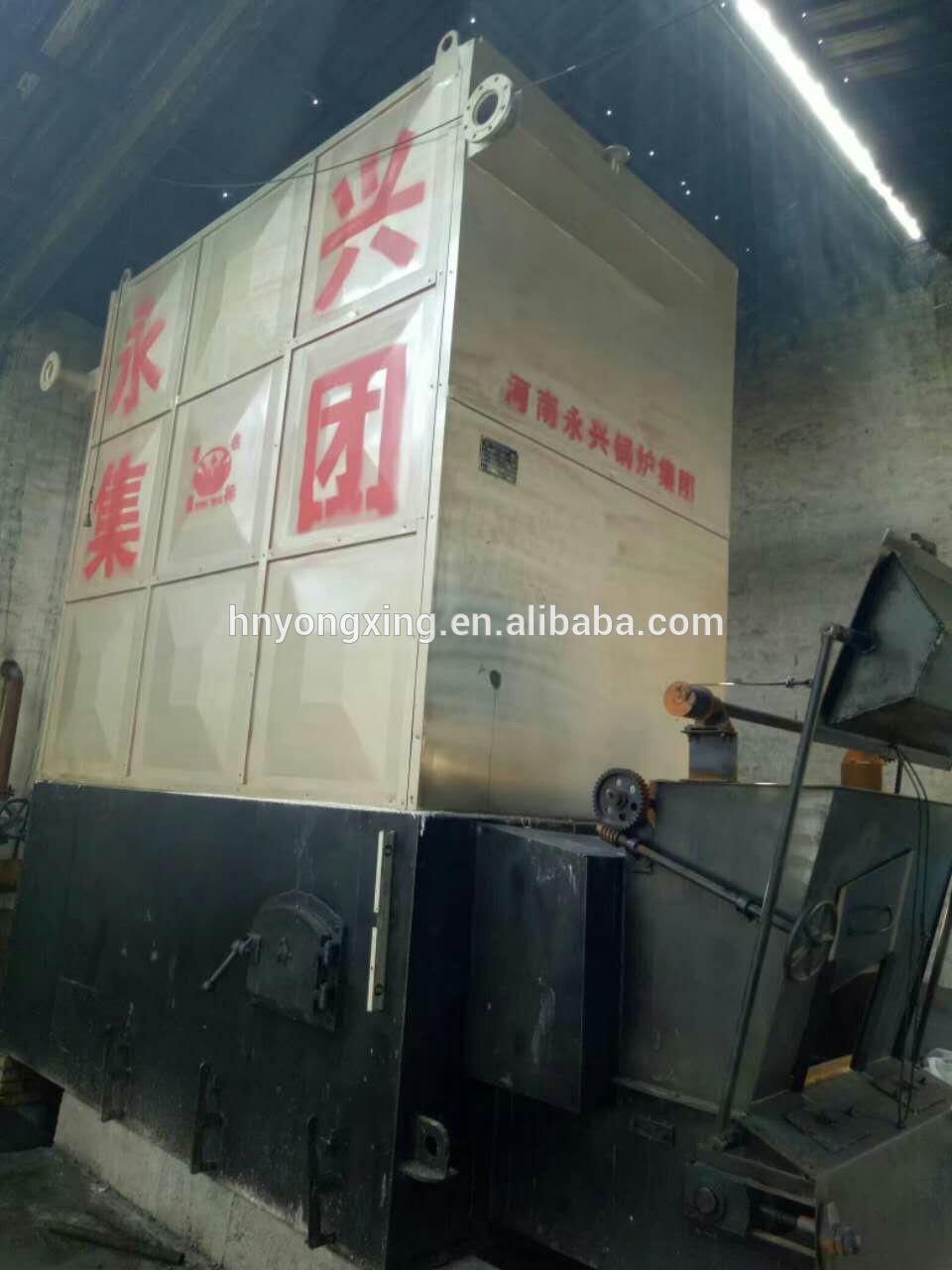

Automatic coal/Biomass/wood pellet Fired Steam Boiler
The Parameter Table of 8 t/h automatic chain grate biomass coal fired steam boiler for sauna:
Item | Unit | DZL2-1.25-T
| DZL4-1.25-T | DZL6-1.25-T | DZL10-1.25-T | |
Model | ||||||
Rated Evaporation | t/h | 2 | 4 | 6 | 10 | |
Rated Working Pressure | Mpa | 1.25 | 1.25 | 1.25 | 1.25 | |
Saturated Steam Temperature | °c | 193 | 194 | 194 | 194 | |
Feed Water Temperature | °c | 20 | 20 | 20 | 20 | |
Heating Area | m² | 79 | 144.1 | 216.4 | 391 | |
Grate Area | m² | 2.96 | 6.15 | 7.54 | 13.64 | |
Grate Thermal Efficiency | % | 80.2 | 80.1 | 80.3 | 79.5 | |
Grate Water Volume | m3 | 4.68 | 8.5 | 10.2 | 10.6 | |
Excess Air Temperature | °c | 163.1 | 134.85 | 135 | 138 | |
Fuel |
| Shaped biomass fuel | Biomass fuel | Biomass grain | Biomass grain | |
Fuel Consumption | Kg/h | 400.2 | 756.6 | 1134 | 1890 | |
Outside Dimension(L*W*H) | mm | 5650*2480*3452 | 6532*2650*3563 | 7420*3000*3670 | 8600*3780*5500 | |
Blowing Machine | Model |
| 4-72No3.6A | 4-72No4.5A | GG6-15 | GG10-15 |
Air pressure | Pa | 1540 | 2554-1673 | 2824 | 2969 | |
Blowing rate | m3/h | 3638 | 5712-10562 | 10000 | 16090 | |
Motor power | KW | 3 | 18.5 | 7.5 | 22 | |
Induced Draft fans | Model |
| Y6-41-11No.5.4 | Y5-47No6C | GY6-15 | GY10-15 |
Air pressure | Pa | 2925 | 3148-2148 | 4116 | 3793 | |
Blowing rate | m3/h | 7250 | 9110-16760 | 17517 | 30211 | |
Motor power | KW | 11 | 7.5 | 37 | 55 | |
Boiler Feed Pump(BFP) | Model |
| JGGC2.4-8*20 | 1.5GC-5*7 | JGGC8-8*20 | DG13-35*5 |
Head | m | 160 | 161 | 168 | 175 | |
Flow rate | m3/h | 2.4 | 6 | 7.5 | 13 | |
Motor power | KW | 3 | 7.5 | 7.5 | 18.5 | |
Precipitator | Model |
| XSG-2 | SM-4 | Dx6 | XD-10 |
Drag | Pa | 900 | 900 | 900 | 900 | |
Collection Efficiency | % | 94 | 92 | 92 | 92 | |
Slag Remover Model |
| SGC2 | SGC4 | SGC6 | SGC10 |
Before the products leave our factories, all the matters relevant to boilers will be undertaken by our company, such as equipment decoration in boiler room and also satisfactory, free-charge service will be offered by us until the turn-key project. The replacement is guaranteed if any problem concerning the product quality arises within a year; Warranty period is ONE YEAR; our engineers are always availabe if it they are needed in the installation process. In the manufacturing process, clients are quite welcome to our factory to examine the product quality and to carry out the follow-up inspections.
Henan Yongxing Boiler Group Co., Ltd, established in 1990s with the registered capital of more than RMB 102.7 million, is a professional manufacturer and exporter that specializes in the design, development and production of boilers and pressure vessels. All of our products comply with international quality standards and are quite greatly appreciated in a varitey of different markets throughout the world. Our company occupies an area of 230 arces, with two factories and six subsidiaries.
Our company is bounded by Beijing-Kowloon Railway on the east, and close to 106 country road. Very convenient for transportation!
Client Visiting
Q: What is our Qualification?
A: We are a Class-A Boiler Manufacturer, with 30 years' experience in the field of boilers and pressure vessels.
Q: What is our Product Range?
A: We specialized in Hot Water Boiler, Steam Boiler, Thermal Oil Boiler, Autoclave, Pressure Tanks, Wood Treatment Plant, Hot Air Generator, etc.
Q: How many countries we have exported?
A: We have exported to FIJI, Bangladesh, South Africa, Peru, Chile, Malaysia, Philippines, Indonesia, Packistan, etc.
Q: What is our Warranty Period?
A: The Warranty Period is ONE YEAR with lifelong service.
