High quality high pressure Steam Injection unit boiler for heavy oil production

dryness steam injection boiler adopts direct current and forced circulation mode,without pot and has the characteristics of compact structure, light weight, high automation and quick start and stop.

Technical Feature

  • New
  • Natural Circulation
  • Industrial
  • Water Tube
  • High Pressure
  • Horizontal
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~500

PRIMARY PARAMETERS

Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
Water Tube
Pressure
High Pressure
Style
Horizontal
Fuel
heavy oil or gas
Place of Origin
Shandong, China (Mainland)
Brand Name
CNPS
Model Number
YZG
Output
Steam
Dimension(L*W*H)
Depends
Weight
Max Boiler
Certification
ASME
After-sales Service Provided
Engineers available to service machinery overseas
Product name
High Dryness Steam Generator

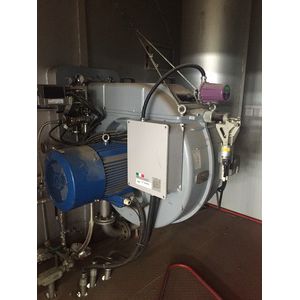

Burner
North American/SAACKE Burner
Rated Evaporation Capacity
5~30 t/h
Working Pressure(Mpa)
15, 17.2, 21
Steam Temperature(u2103)
342~370
Steam Dryness(%)
85
Heat Efficiency(%)
u2265 90
Combustion Method
Heavy Oil/Gas
Loading Method

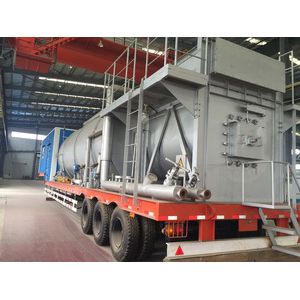

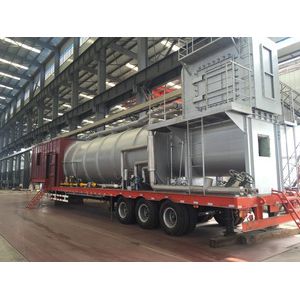

Truck Mounted/Skid Mounted
Piston Pump
HE Li (China)

DETAIL DESCRIPTION

Steam Injection unit ,heavy oil steam generator





Product Description



High-dryness steam injection boiler adopts direct current and forced circulation mode,without pot and has the characteristics of compact structure, light weight, high automation and quick start and stop.













Specifications



  •  Thermal efficiency :≥ 90%
  • Rated steam dryness : ≥85%

  • Combustion mode : Oil and gas dual

  • Control mode : PLC+ Touch screen + IPC





Features



  • Heavy oil and natural gas as fuel;

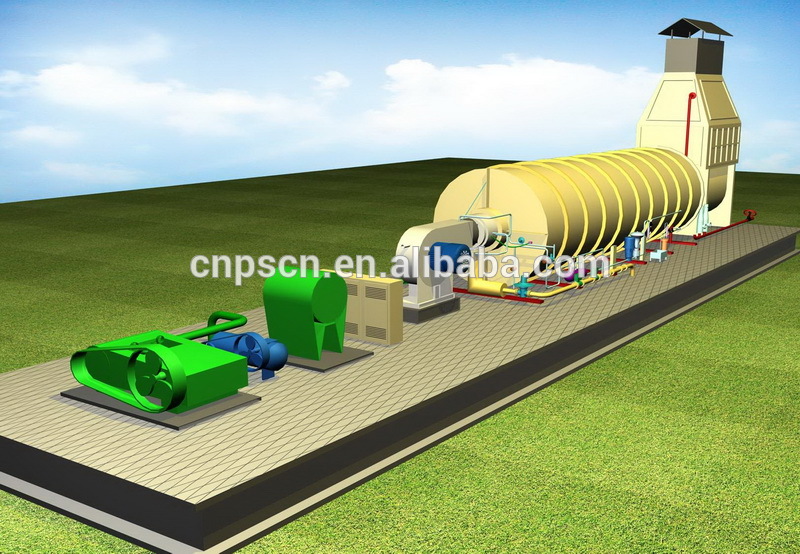

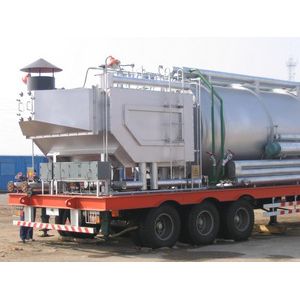

  • Fixed boiler and integral truck-mounted mobile boiler ;
  •  Fixed boiler is suitable for steam injection in intensive well pattern, and the integral truck-mounted mobile boiler is suitable for steam injection in detached well;
  • Automatic intelligent control.





Accessories for boiler.jpg



Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Standard Inquiry

CNPS Petro Equipment Co., Ltd.

OCTG, Mud Logging Equipment, Well Logging Equipment, Laser Gas Detector, Thermal Recovery Equipment

China
Supplier Page Contact Supplier

Products From Supplier

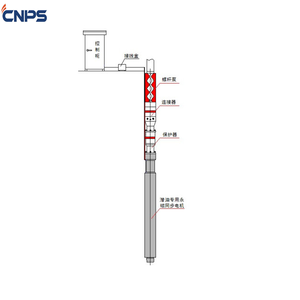

API spec 11 AX ESPCP Electric submersible direct drive hydraulic progressive screw cavity pump
