35mm Oblique Packing Tube Settler for Wastewater Treatment

Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area.

Technical Feature

  • Hebei, China (Mainland)
  • LT
  • Lamella PP Tube Settler
  • 35mm Oblique Packing Tube Settler for Wastewater Treatment
  • Lamella Clarifier PP Tube Settler
  • pp pvc
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
LT
Model Number
Lamella PP Tube Settler
Product name
35mm Oblique Packing Tube Settler for Wastewater Treatment
Other name
Lamella Clarifier PP Tube Settler
Material
pp pvc
Color
White Blue
Aperture Size
25 30 35 50mm
Type
Water Filter Parts Water purify
Thickness
0.35mm-0.7mm

DETAIL DESCRIPTION

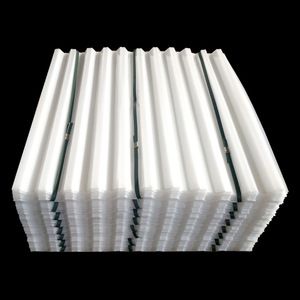

35mm Oblique Packing Tube Settler for Wastewater Treatment

Tube settler systems are an inexpensive solution for drinking water and wastewater plants to increase treatment capacity, reduce new installation footprints, improve effluent water quality, and decrease operating costs





Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times.

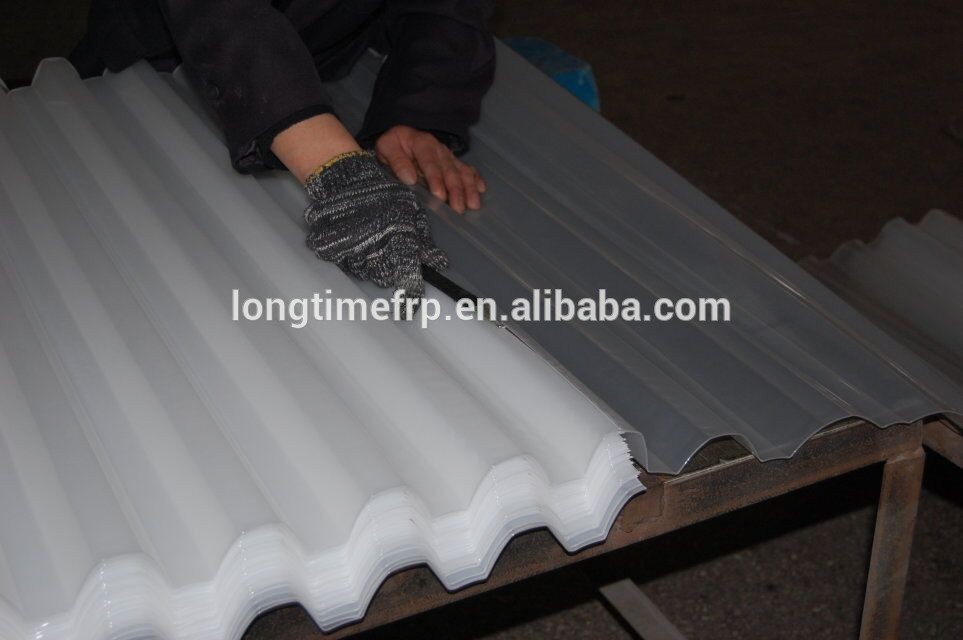

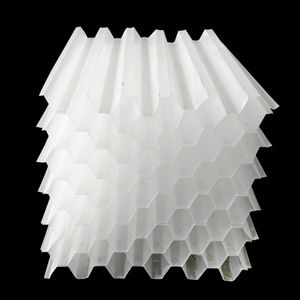

pp honeycomb lamella tube settler

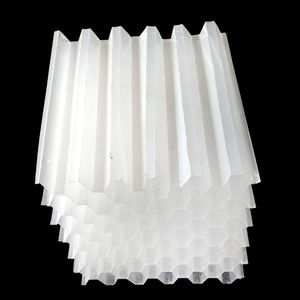

pvc honeycomb lamella tube settler

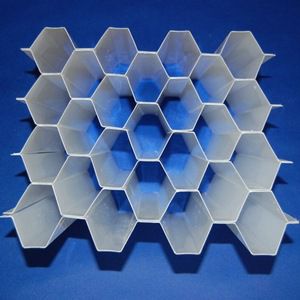

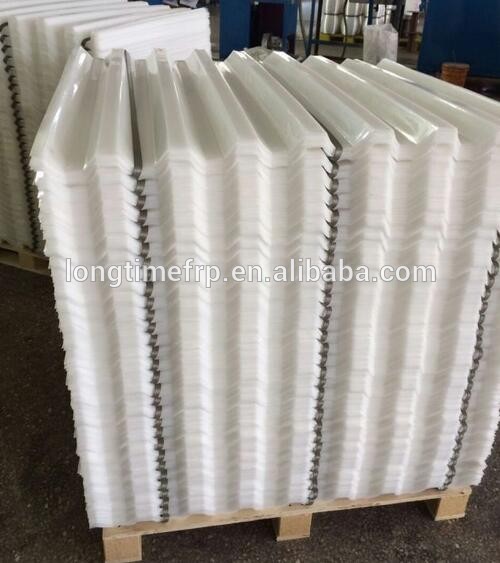

Details of Waste water pond PP hexagonal lamella plate

Name

35mm Oblique Packing Tube Settler for Wastewater Treatment

Dimension

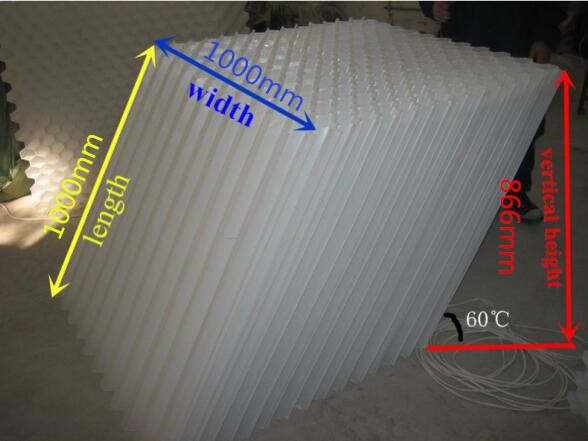

Shaping dimension(mm):1000×1000×866



aperture size : 35mm     50mm            80mm



thickness:        0.4         0.50mm         0.80mm



number/m2 :   40pcs     32pcs             20pcs

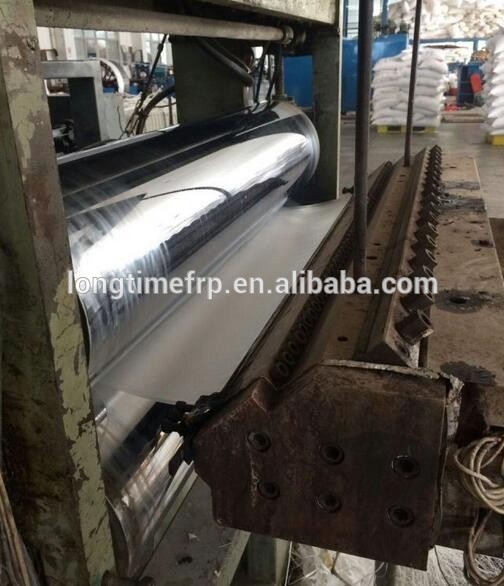

Shaping Method:Electric iron.



Installation angle:60°



Usage

different clarifiers and removing sand



Price terms

FOB,CIF,CNF



Payment terms

T/T or L/C at sight or Western Union



Loading port

Tianjin China Port.



Leadtime

10-15days

depends on customers' order quantity



Specifications

(aperture)

film thickness

(mm)

pieces /square

bulk density

(kg /cubic)

35mm

0.5

43

37

50mm

0.5

32

26

80mm

0.7

20

22

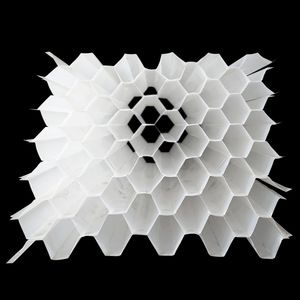

Packing Plastic honeycomb fills











Advantage

  • Easy installation,High efficiency.
  • Minimum space required for storage
  • Increases capacity of clarifier
  • Enhances particle agglomeration and growth
  • Factory sale directly

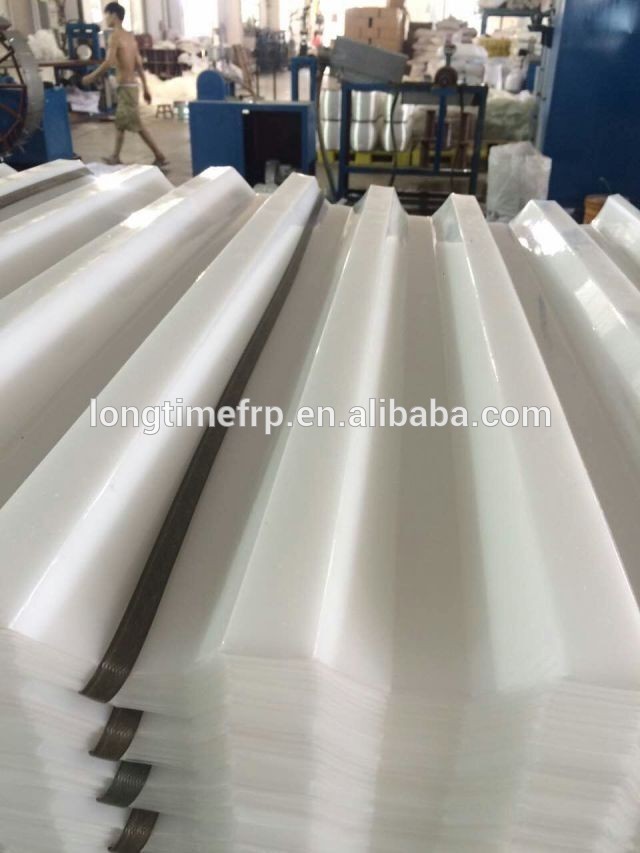

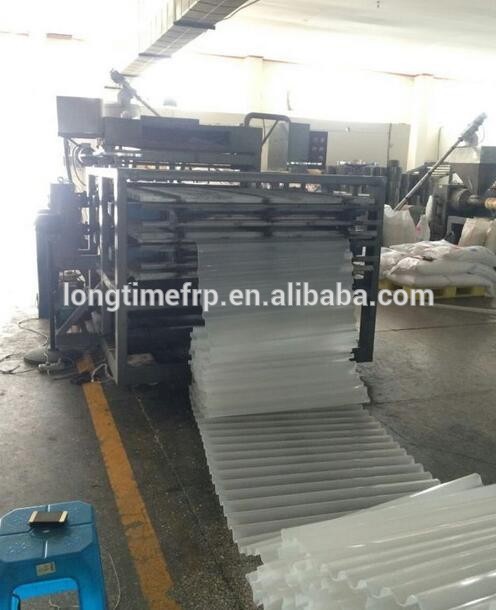

Lamella Tube Settler Machine









Related products

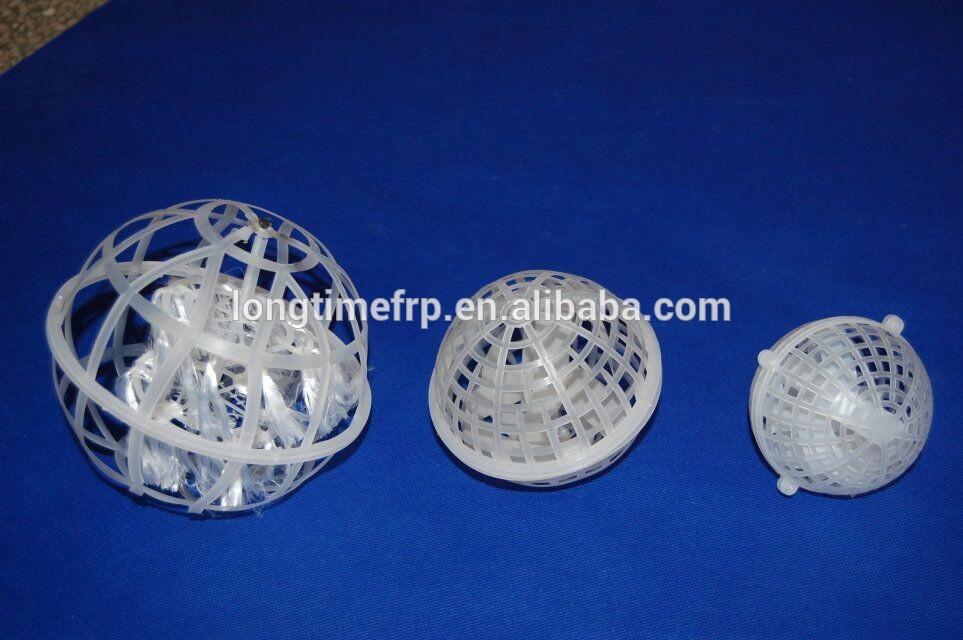

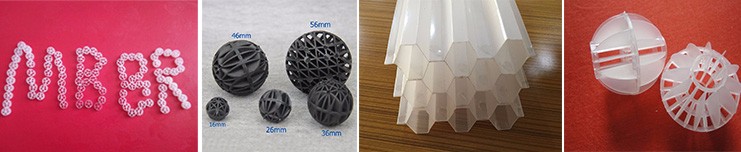

mbbr  filter       Aquarium Pond Filter   Tube settler    Hollow ball

 Bio ball media





I f you have any requries of Lamella Tube Settler,bio mbbr filter,bio ball.pls contact
