Patent product 100% polyester belt filter press for wastewater treatment with steel joint

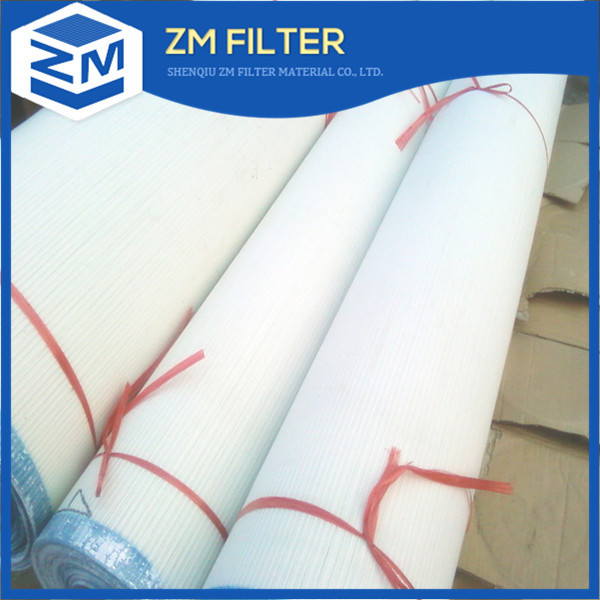

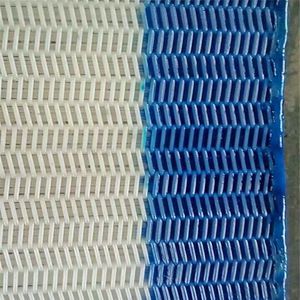

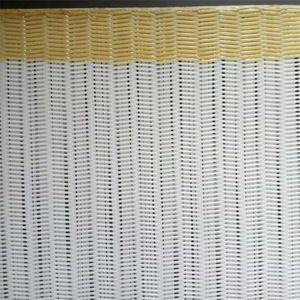

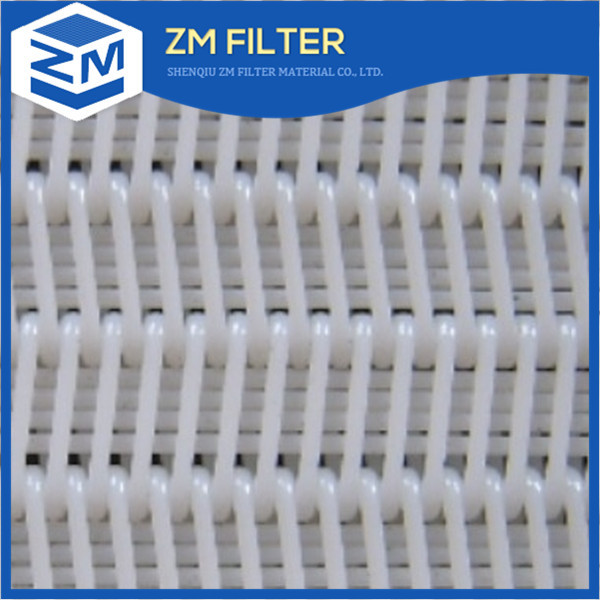

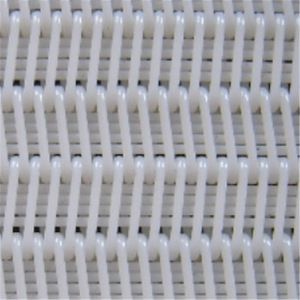

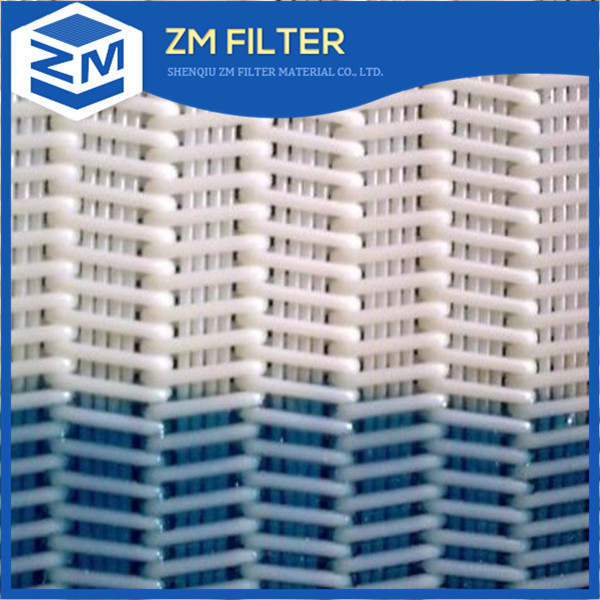

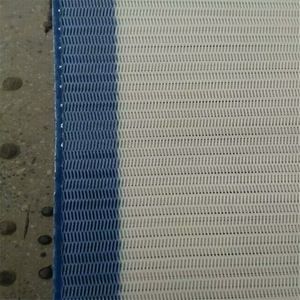

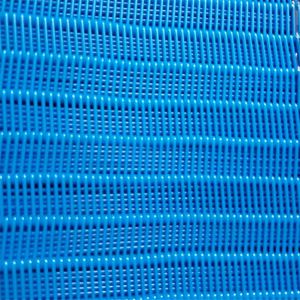

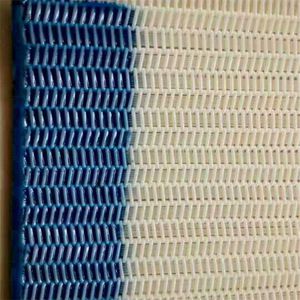

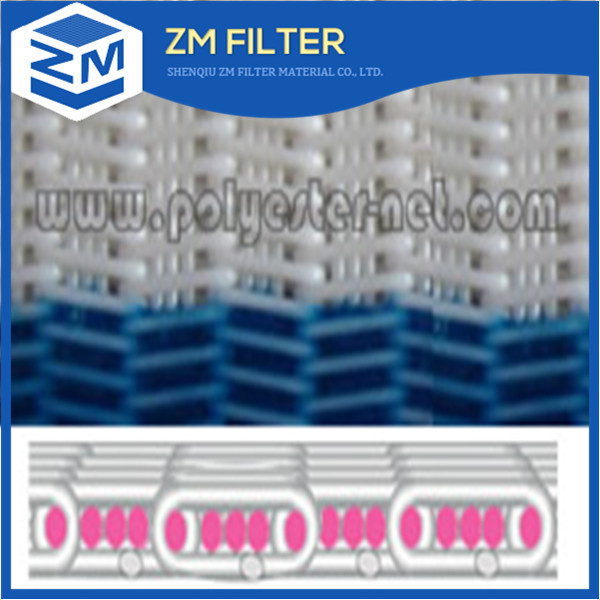

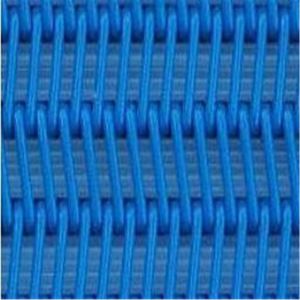

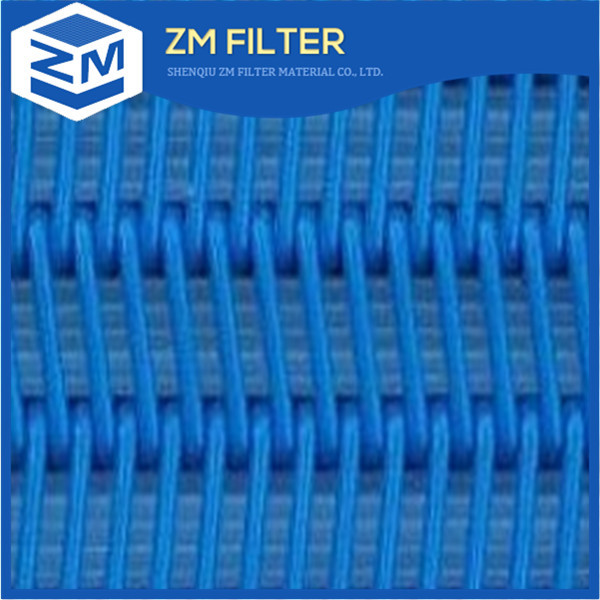

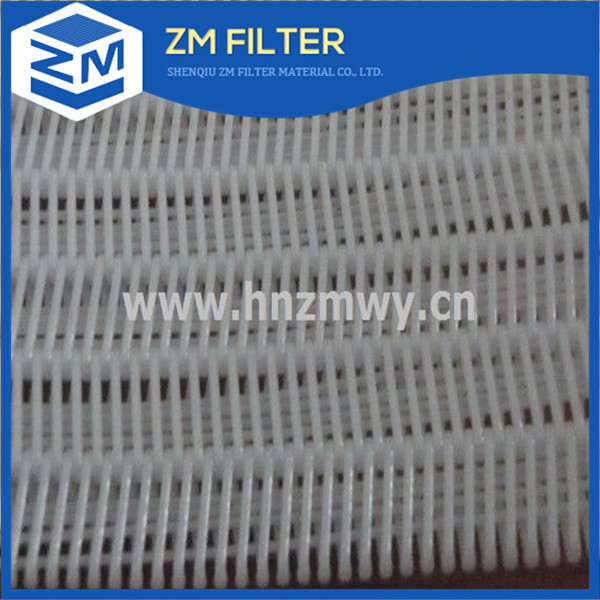

Polyester Spiral Pressure Filter Fabric is made of polyester spiral dryer fabric which is filled with stuff to reduce the air permeability and intensive the opening, hence to reduce the material loss from the mesh opening.
Applications
1.Polyester Spiral Press-filter Fabrics is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
2.It has been extensively used in all kinds of industries such as printing and dying, food, salt industry, pharmaceutical, environment protection, process hides, shoe-making, clothing, pottery and other conveyable belt etc.
Technical parameter
Type | mm Specification of single loop | mm Monofil diameter | N/cm Strength | mm Thickness | m2kg weight | m3/m2h Air permeability | ||
Spiral loop monofil | Threading | filler | ||||||
Super loop | 4.8X10 | 0.9 | 1.1 | 1.0X4 | 2300 | 3.03 | 2.21 | 4800 |
Medium loop | 3.5X6.0 | 0.68 | 0.9 | 0.8X3 | 2000 | 2.45 | 1.85 | 3525 |
Small loop | 3.2X5.2 | 0.50 | 0.8 | 0.6X3 | 1800 | 1.85 | 1.5 | 2850 |
Other color
Packing
