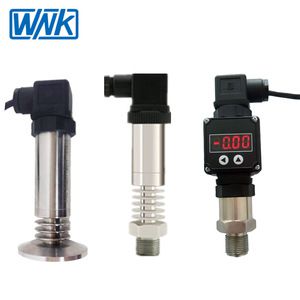

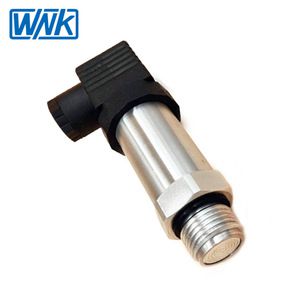

4-20mA Flush Membrane Pressure Transmitter and Transducer | |
Applicable media | Liquid, Gas, Steam |
Pressure measurment | Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure |
Pressure range | 0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa |
Output signals | Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC |
Accuracy | 0.25%, 0.5%, 1.0%FS |
Stability | ±0.25% FS/year |
Zero drift | 50% of full range span. |
Max overload | 200% of sensor range |
Display | LED (Optional) |
Housing material | 304SS, 316L |
Mechanical connection | M20×1.5; 1/2-18NPT, 1/4NPT, Customize |
Non-explosion: 10.5~45V DC | |
EEX ia:10.5~30 V DC | |
Ambient temperature | -40~85℃ |
Process temperature | -40~85℃ |
| Features |
| - Standard ranges from vacuum to 60Mpa |
| - Accuracy up to ±0.25% |
| - 4-20 mA 2-wire output signal, others available |
| - Highly resistant to pressure spikes and vibration |
| - Stainless steel case and wetted parts |
| - Full range of process and electrical connections |
| - Assemble to diaphragm seals for special applications |
| - Suitable for gas, liquid, steam pressure measurement |
| - Intelligent digital circuit with precise temperature characteristic compensation |
| - Tantalum sensor contact for option for pressure measurement with corrosive media |
| Contact us for other products |
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. All product are done with temperature-compensated and deliver calibrated output signal.
Q: What is the warranty of your products?
A: 12 month after receiving product for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
A: we provide OEM/ODM service and do customized orders, custom logo is allowed to print.
Q: What is yor MOQ?
A: We have no MOQ limits, 1 unit is accetable.
Q: What's the transport?
A: Courier Express such as DHL, Fedex, TNT, UPS , delivery in 4 -7 working days depending on countries/regions.
Q: Payment Terms
A: We accept payment from wire transffer to our bank or payment via alibaba Trade Assurance ( Escrow Service ), payment is safe with us.
