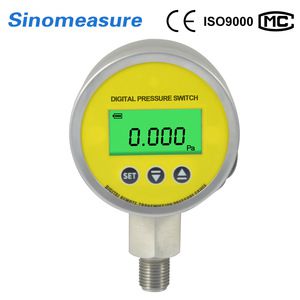

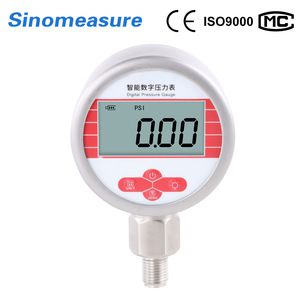

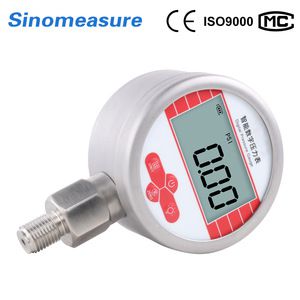

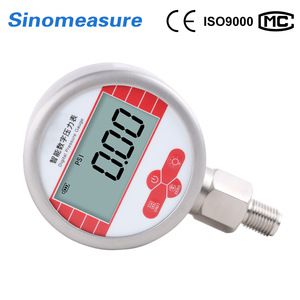

china high quality digital air water pressure gauge with 4-20mA and RS485

  Range0-0.2...1.0...1.6...5...10...25...40...60MpaOver Pressure150%Backlight Color WhiteDial Size60mmAcc. 0.5%FS  Long-term StabilityTypical:  ±0.5%FS/yearOperating Temperature -20~80℃Compensation Temperature 18 ~30 ℃Electric

Technical Feature

  • Zhejiang, China (Mainland)
  • Sinomeasure
  • SIN-YC190
  • air pressure gauge
  • 0-60Mpa
  • 0.5%FS
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$68~188

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
Sinomeasure
Model Number
SIN-YC190
Product type
air pressure gauge
Pressure range
0-60Mpa
Accuracy
0.5%FS
Application
Liquid or gas
Supply
24V

DETAIL DESCRIPTION



Range0-0.2...1.0...1.6...5...10...25...40...60Mpa
Over Pressure150%
Backlight Color White
Dial Size60mm
Acc. 0.5%FS
Long-term StabilityTypical:  ±0.5%FS/year
Operating Temperature -20~80℃
Compensation Temperature 18 ~30 ℃
Electric ProtectionEN61326
Sampling Frequency5 Times/sec
Measurement MediumGas, water, oil
Pressure Connection M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4
Connector Material304SS
Shell 304SS
Supply 24VDC
Weight0.35Kg

Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Standard Inquiry

Hangzhou Sinomeasure Automation Technology Co., Ltd.

flowmeter,pressure transmitter,level transmitter,PH meter,Paperless recorder

China
Supplier Page Contact Supplier

Products From Supplier

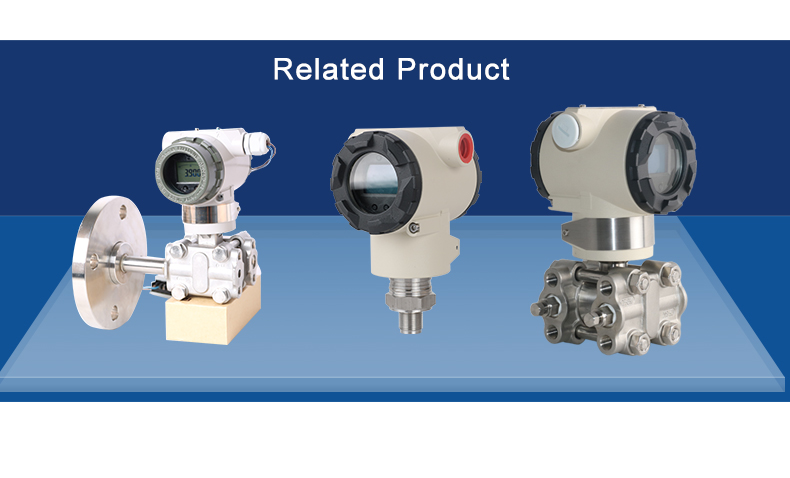

Pressure transmitter with Universal Industrial 4-20mA output Silicon Oil inside Pressure sensor with High accuracy
