4 Digital IP67 Air Gas Mass Accumulated Thermal Flowmeter
Description

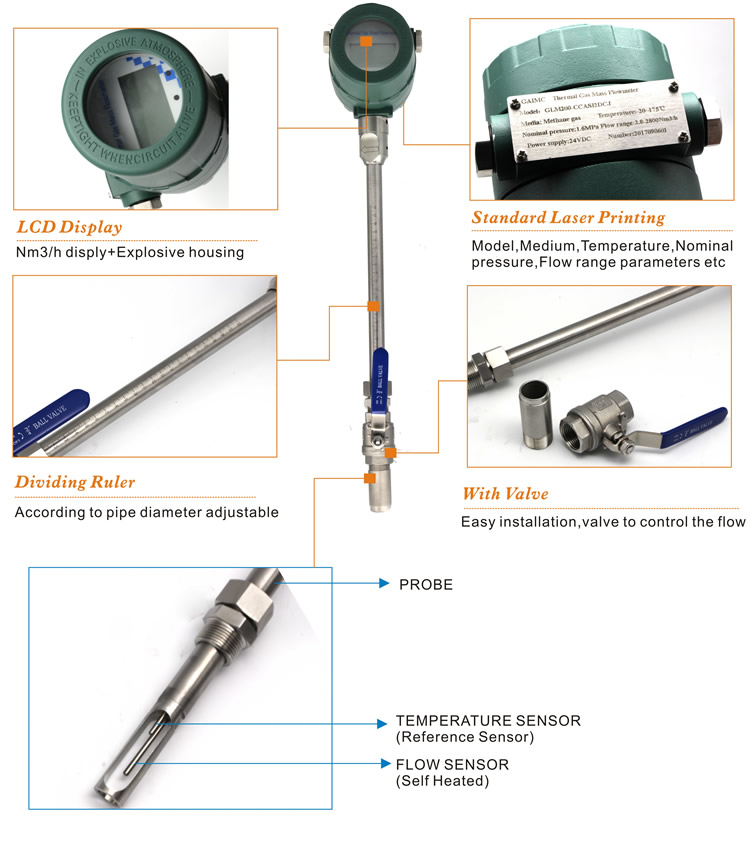

GLM200 Thermal gas mass flow meter is an instrument measures flow rate according to thermal properties of gases. By detecting constant temperature difference of the medium, the flow meter is able to provide high accuracy measurement result.
Sensor part of GLM200 thermal gas mass flow meter is composed by two reference level Pt100 temperature sensors. With a bridge loop circuit, one of the temperature sensor will detect temperature of the flow while the other one will be constantly in temperature higher than the flow, thus measurement will not be affected by both high temperature and pressure conditions.

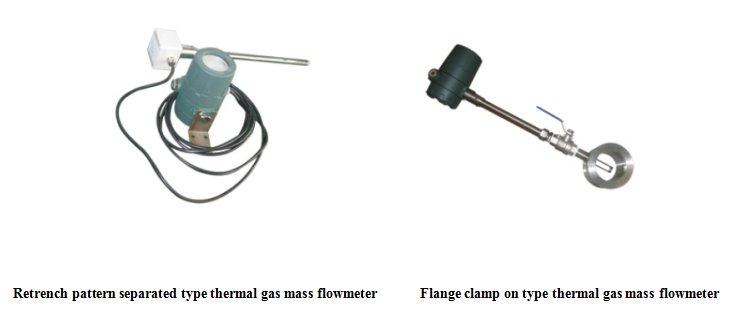

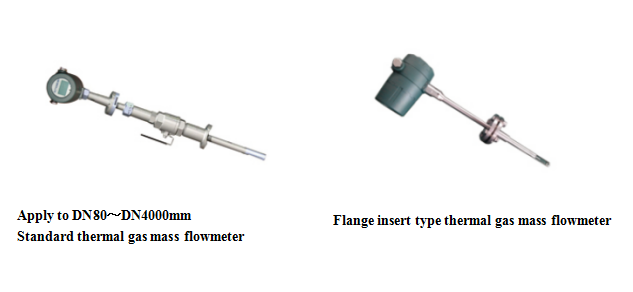

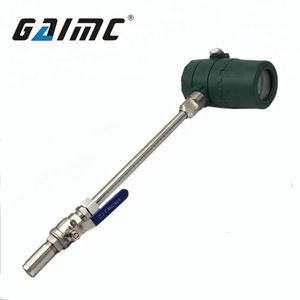

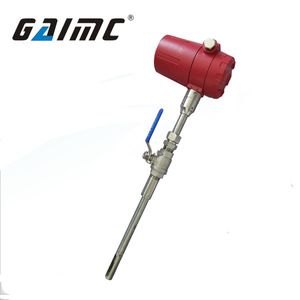

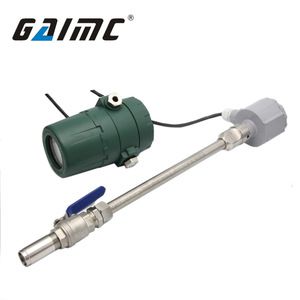

Detail show
Specification
Medium | All gases (except acetylene) | |

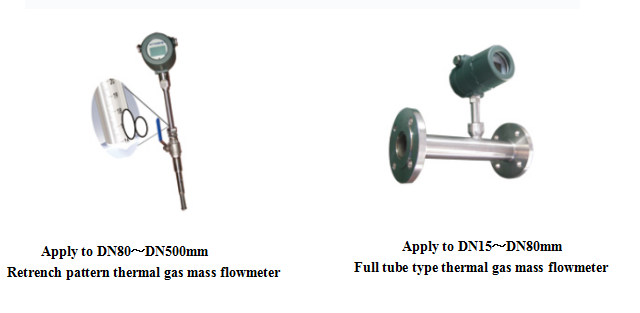

Pipe diameter | DN10-80 (Flange type) | DN100-6000 (Insert type) |
Flow rate | 0.5-100Nm/s | |
Accuracy | ±1% | |
Operating temp. | Sensor | Default type: -10~+200℃ High temp. type: -10~350℃ |
Transmitter | -20~+45℃ | |
Operating pressure | Medium pressure≤10MPa | Medium pressure≤2.5MPa |
Power supply | Compact type | DC24V or AC220V≤18W |
Remote type | AC220V≤19W | |
Response time | 1s | |
Output | 4-20mA | Optical isolation, max. load 500Ω |
RS485 | Optical isolation | |
HART | ||
Pipe material | Carbon steel, stainless steel, plastic, etc. | |

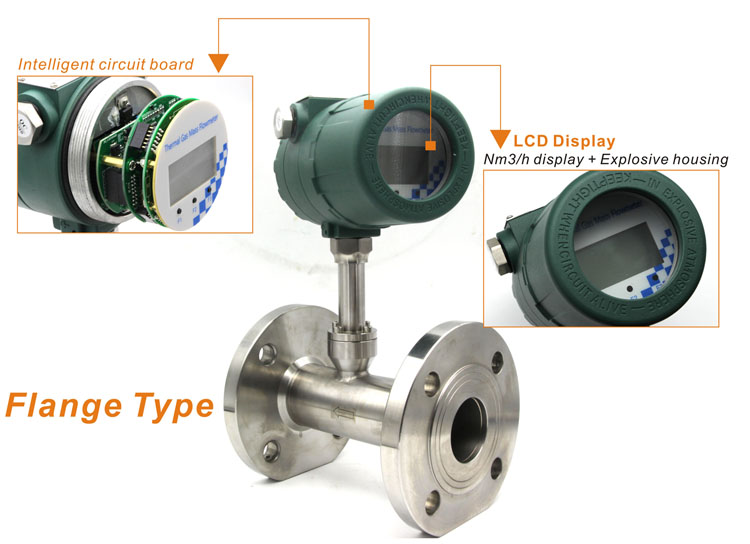

Display | Compact type: 4 lines LCD display | |
Display content | Mass flow, standard volume flow, accumulated flow, time, accumulated time, medium temp., standard flow, etc. | |
Ingress protection | IP67 (sensor part) | |
Sensor material | Stainless steel | Stainless / carbon steel |

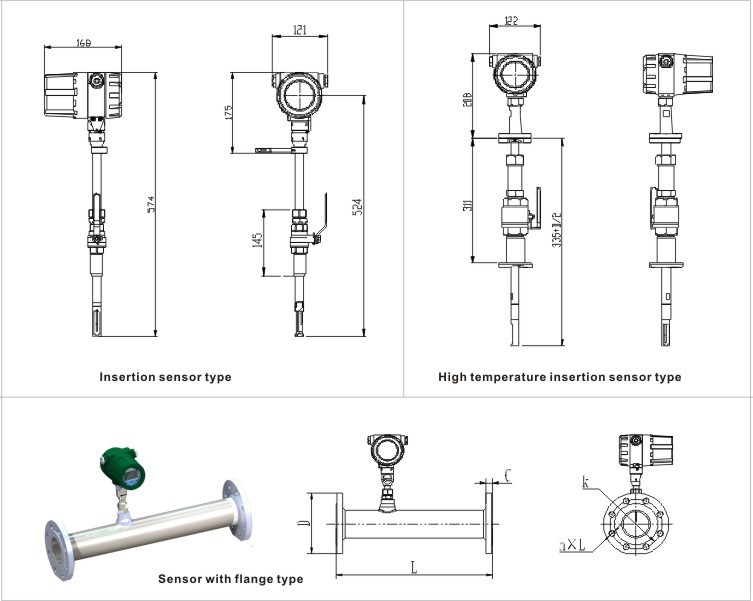

Dimensions
PN1.6Mpa steel pipe flange (Unit: mm)
Nominal diameter | Flange outer diameter | Pipe hole | Screw Hole | Screw | Sealing surface | Flange thickness | Pipe length | |
DN | D | k | n×L | / | d | f | C | L |
15 | 95 | 65 | 4×14 | M12 | 46 | 2 | 14 | 280 |
20 | 105 | 75 | 4×14 | M12 | 56 | 2 | 16 | 280 |
25 | 115 | 85 | 4×14 | M12 | 65 | 2 | 16 | 280 |
32 | 140 | 100 | 4×18 | M16 | 76 | 2 | 18 | 350 |
40 | 150 | 110 | 4×18 | M16 | 84 | 2 | 18 | 350 |
50 | 165 | 125 | 4×18 | M16 | 99 | 2 | 20 | 350 |
65 | 185 | 145 | 4×18 | M16 | 118 | 2 | 20 | 400 |
80 | 200 | 160 | 8×18 | M16 | 132 | 2 | 20 | 400 |
100 | 220 | 180 | 8×18 | M16 | 156 | 2 | 22 | 500 |
