Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as:
Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
| Nominal diameter | 15-2000mm | |||
| Velocity range | 0－10m/s | |||
| Degree of accuracy | ±0.1%R，±0.5%R，±1%R（＜DN20 ) | |||
| Medium conductivity | ≥5uS/cm，Actual conductivity≥30uS/cm | |||
| Nominal pressure | 1.0MPa | 1.6MPa | 2.5MPa | 4.0MPa |
| DN15-DN800 | DN15-DN800 | DN15-DN600 | DN15-DN50 | |
| Environment temperature | Sensor | 0℃ - +80℃ or -25℃ - +120℃ or + 70 -+ 250℃ | ||
| Compact type | -10℃ - +55℃ | |||
| | Compact type | +80℃ | ||
| Remote type | CR chloroprene rubber liner (CR) | +80℃ | ||
| Polytetrafluoroethylene lining(F4) | +120℃ | |||
| Politef lining(F46) | ||||
| Teflon(PFA) | +180℃ | |||
| Fluorosilicone rubber(FVMQ) | +250℃ | |||
| Output signal | 4-20mA；Pulse/Frequency 2kHz(Default)，5KHz(Max) | |||
| Cable entry size | M20 × 1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector) | |||
| Supply voltage | 110/220VAC(100-240VAC)，50Hz/60Hz；24VDC ±10% | |||
| Power dissipation | ≤15VA | |||
| Communication | RS-485,Support standard Modbus-RTU protocol;GPRS | |||
| Electrode material | Stainless steel 316L,Hastelloy C,Hastelloy B,titanium, tantalum, platinum | |||
| Form of electric pole | Interpolating, extrapolating electrode need to customize | |||
| Number of electrodes | Standard configuration 3-4 electrodes (two measuring electrodes plus a grounding electrode) | |||
| Flange Standard | Conform to the international GB9119 ( customize according to customer's demand) | |||
| Flange material | Standard carbon steel and stainless steel are needed to be customized | |||

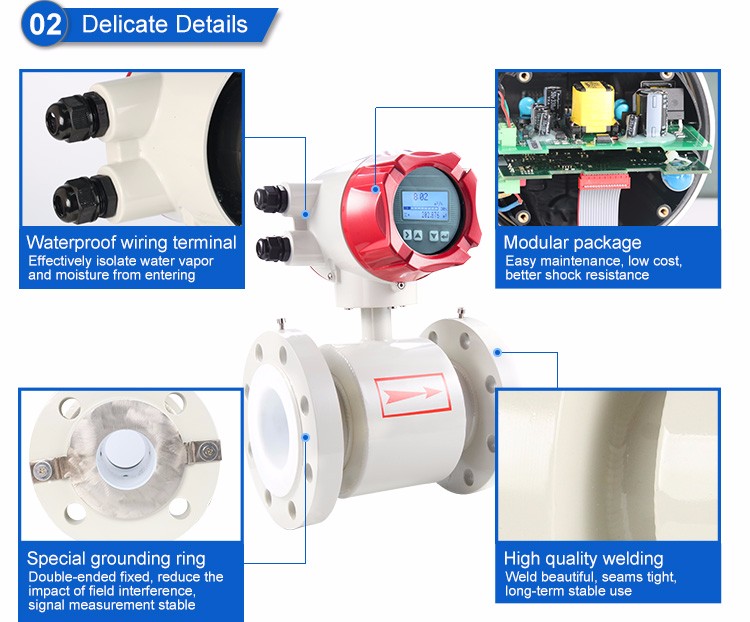

| Grounding ring material | Stainless steel, and stainless steel that contains molybdenum, etc. | |||
| DN15-DN450 | Stainless steel 1Cr18Ni9Ti(Ordinary austenitic stainless steel SUS321) | |||
| Housing material | Standard carbon steel and stainless steel are needed to be customized | |||
| Level of protection | Remote type | IP68、IP65 | ||
| Compact type | IP65 | |||
| Cable length | 10m standard configuration connecting line, optional 15m, 20m, 25m, 30m. (Remote type) |
Accept OEM customization, Multi-language customization.

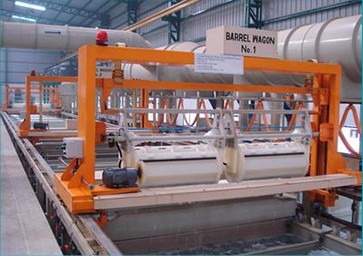

Printing and dyeing industry
<<<<<<<<<<<<<
Heating/energy saving industry
Professional engineers to provide one-on-one service
Response time: Online chatting within 1 minute,
inquiry within 5 minutes
After-sales service: 2-years warranty, free replacement for non-human-oriented operation during the warranty period
Overseas Service Center: Malaysia, Singapore
After-sales service process:
1.Contact us via Online chatting, inquiry, email or phone call(+8613777833374)
2.Confirm the problem, try to figure it out local
3.If can not be solved, send back to maintenance or replacement.
automatic packer
carton
wooden case
Lead time : Most products within 3-5 working days(if have stock, could be sent same day), customized product would be longer
Delivery process：
1.Use customer’s own delivery account， or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)
2.Delivery time is 2-7 working days, some products have stock in Malaysia.
3.Help to do the destination customs clearance

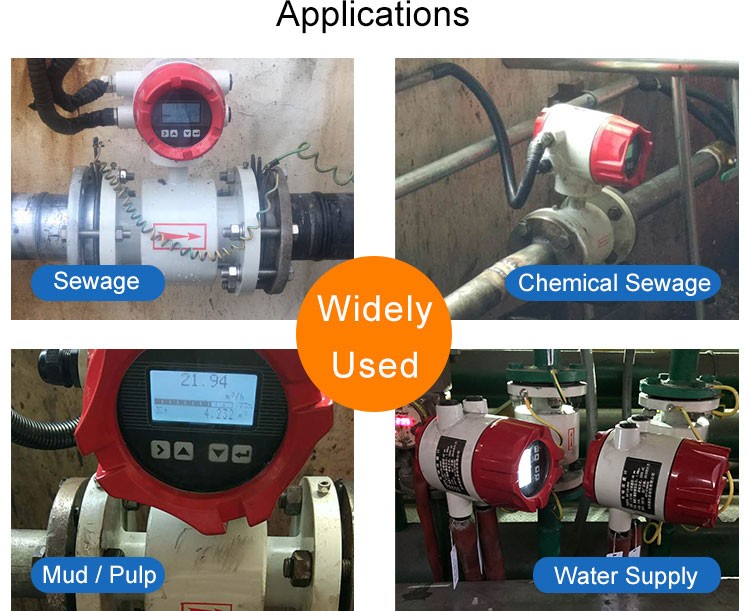

Applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others.
Used in numerous branches of industry to measure the volume flow of liquids, gases and steam.
Applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others.
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?

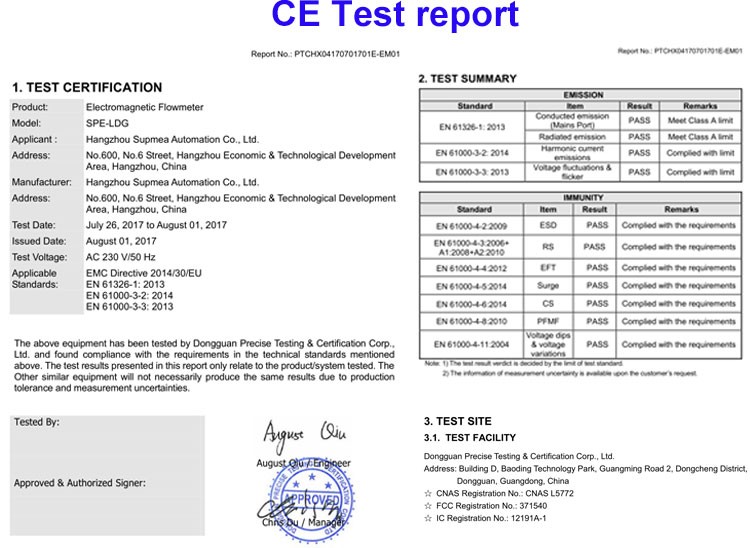

A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
