Laser Particle Size Analyzer

Bettersizer S2 is a classic wet dispersion particle analyzer with a high degree of intelligence, excellent stability, and compact design. Bettersizer S2 strikes a perfect balance of function and value.

Technical Feature

  • Measurement: Particle size
  • Particle size range: 0.02µm to 2000µm
  • Dispersion type: Wet
  • Technology: Laser diffraction
  • -
  • -
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2000~50000

PRIMARY PARAMETERS

Usage
Measuring particles size
Accuracy grade
-
Work temperature
-
Stability
-
Environmental temp.
-
Range
0.02µm to 2000µm
Protection level
-
Power supply
-
OEM/ODM
Not Available

MODEL SPECIFICATIONS

Model Bettersizer S2
- -

DETAIL DESCRIPTION


Laser Particle Size Analyzer


High-precision and smart laser particle analyzer

Bettersizer S2 is a classic wet dispersion particle analyzer with a high degree of intelligence, excellent stability, and compact design. Bettersizer S2 strikes a perfect balance of function and value.

● Measurement: Particle size
● Particle size range: 0.02µm to 2000µm
● Dispersion type: Wet
● Technology: Laser diffraction


Features

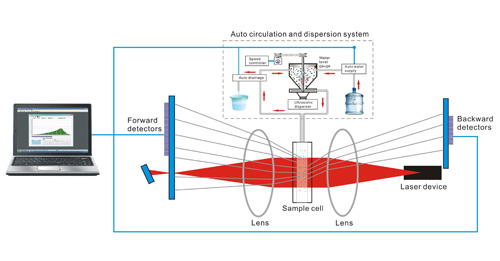

Dual Lens Optical System (DLOS) provides accurate test result on particle size.

s2-Features

• Automatic alignment ensures optical path stability.

• High-performance fiber lasers with long lifespan.

• Forward and backward detectors improves the detections of diffraction signals.

• High-speed signal transmission system ensure stability and sensitivity of analysis.

• Circulation & dispersion system: automatic circulation, dispersion, mixing, inflow, rinsing, and cleaning. Water flow rate can be adjustable. A Selectable volume of circulating medium between 200-600ml.

• Equipped with dry run protection ultrasonic dispersing device.

• Standard Operation Procedure (SOP) offers smart testing experience.
result changes with user-defined parameters.


Specification

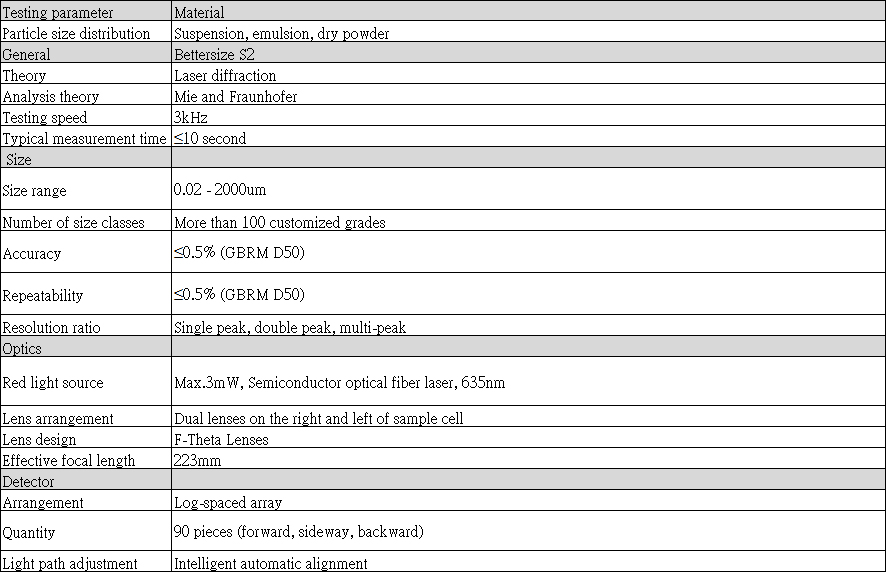

s2-a

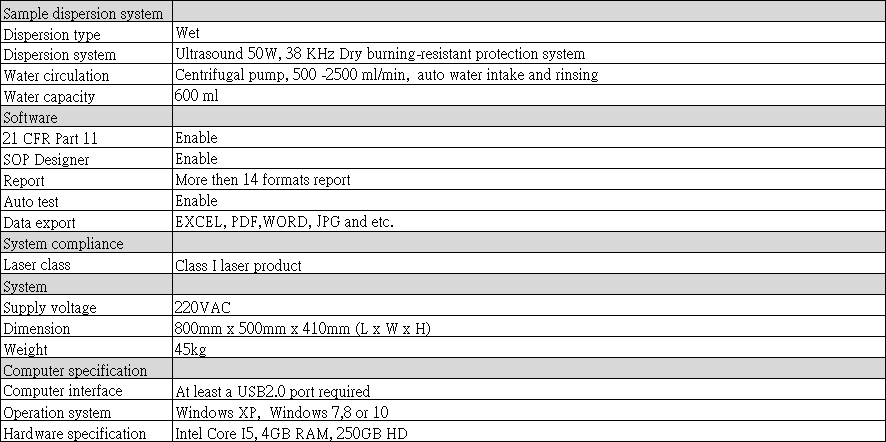

s2-b
