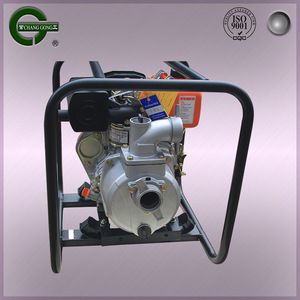

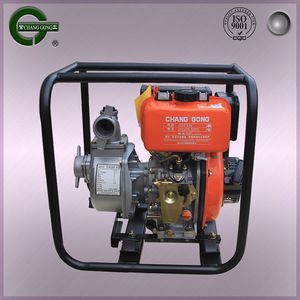

CGP20BL-173F suction pump for grains

PRIMARY PARAMETERS

Place of Origin

Jiangsu, China (Mainland)

Brand Name

CHANGGONG

Model Number

CGP20BL-173F

Theory

Centrifugal Pump

Structure

Single-stage Pump

Usage

Water

Power

Electric

Standard or Nonstandard

Standard

Fuel

Diesel

Pressure

Low Pressure

Application

Submersible

Product name

CGP20BL-173F suction pump for grains

Rate lift

15m

Rate suction

Self-absorption time

120s/4m

Efficiency

44%

Dimensions

510x455x515mm

Net weight

46-55kg

Engine type

CG173F

Rate output

4.05/3600kw/rpm

Cooling system

Forced air-cooled

DETAIL DESCRIPTION

CGP20BL-173F suction pump for grains

Product Description

CGP20BL-173F suction pump for grains description:

Application:

CGP20BL-173F suction pump for grains mainly apply to the various needs of pumping place.

Feature:

new design make diesel engine more beautiful
Fuel-efficient enviromental protection, the comsumption 60% off
high rate lift over 80m
aluminum alloy wheel hub, easy to transport

The detail technical data of CGP20BL-173F suction pump for grains

Mode	CGP20BL-173F
Bore (mm)	80(3")
Rate flow (m³/h)	30
Rate lift (m)	15
Rate suction (m)	8
Self-absorption time (s/4m)	120
Efficiency (%)	44
Cavitation allowance	4
Dimensions (LWH) (mm)	510x455x515
Net weight (kg)	46-55
engine type	CG173F
Engine type	Vertical Single-cylinder 4 stroke Air-cooled Direct injection
Rate output (kw/rpm)	4.05/3600
Cooling system	Forced air-cooled
The output axis direction of rotation	For output to counterclockwise
Starting system	Starting hand/electricity starting
Fuel consumption (g/kw.h)	≤285
Fuel tank capacity (L)	2.5

Different kinds of Diesel water pump sets

Mode	CGP20BL-173F	CGP40DL-186F
Bore (mm)	80(3")	100(4")
Rate flow (m³/h)	30	40
Rate lift (m)	15	16
Rate suction (m)	8
Self-absorption time (s/4m)	120	180
Efficiency (%)	44
Cavitation allowance	4	4.5
Dimensions (LWH) (mm)	510x455x515	650x470x610
Net weight (kg)	46-55	≤79
engine type	CG173F	CG186FA
Engine type	Vertical Single-cylinder 4 stroke Air-cooled Direct injection
Rate output (kw/rpm)	4.05/3600	6.3/3600
Cooling system	Forced air-cooled
The output axis direction of rotation	For output to counterclockwise
Starting system	Starting hand/electricity starting
Fuel consumption (g/kw.h)	≤285	≤280
Fuel tank capacity (L)	2.5	5.5

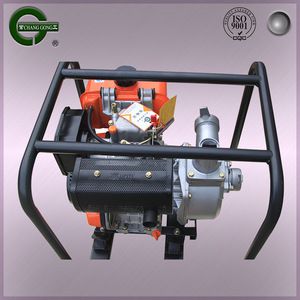

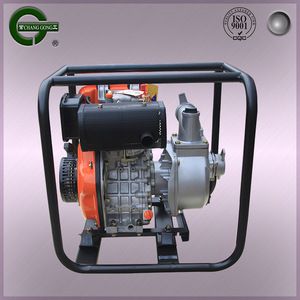

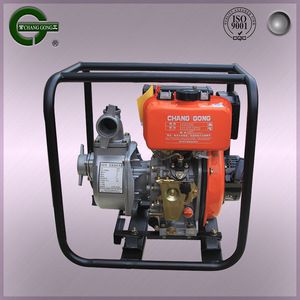

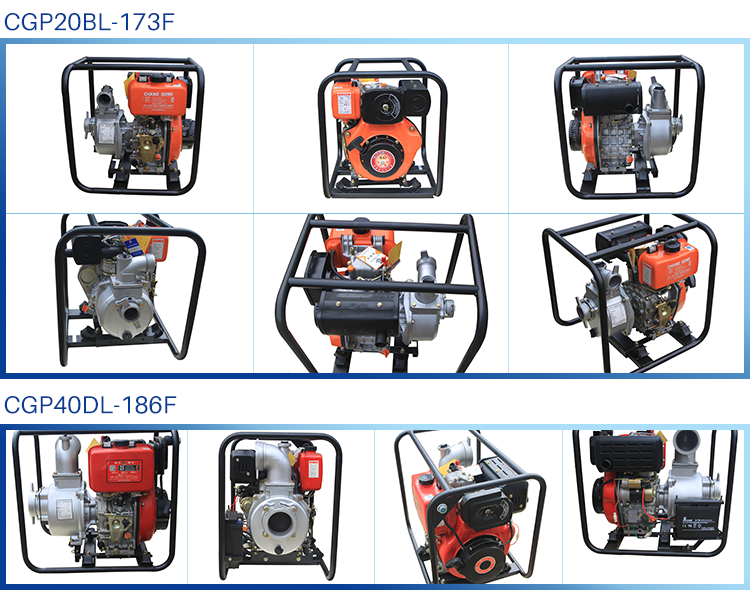

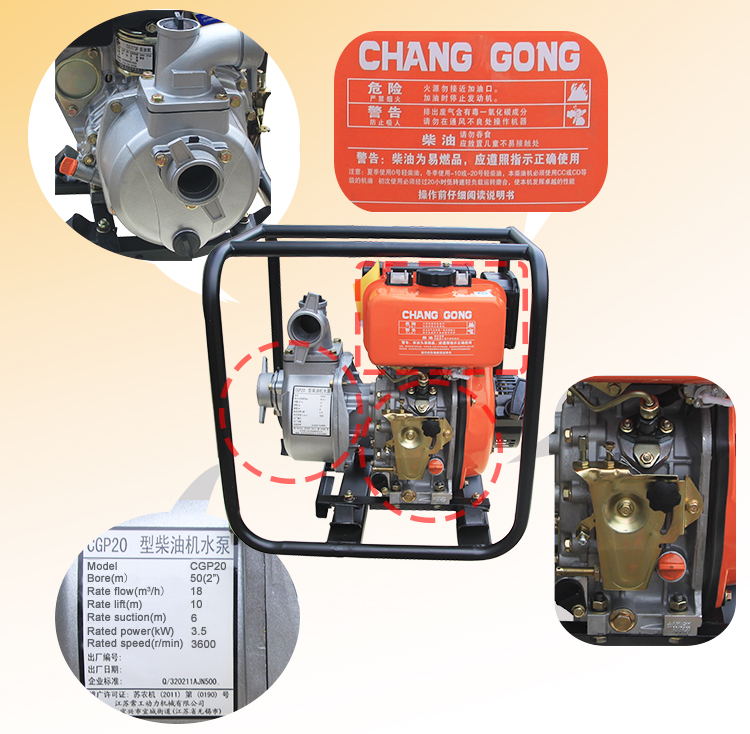

Details of CGP20BL-173F suction pump for grains

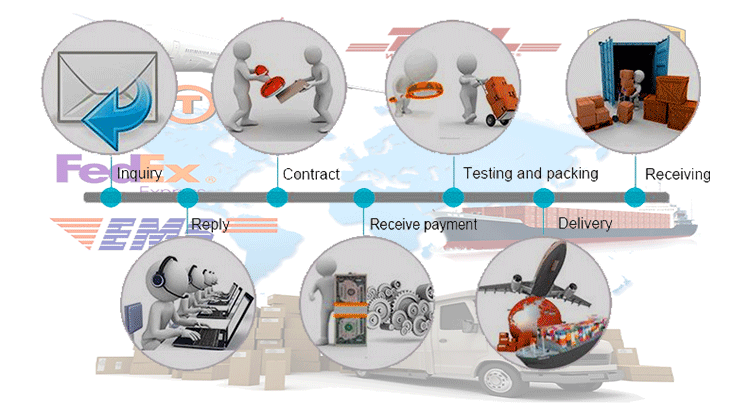

Product flow

Packaging & Shipping

Package: 1PC/ EXPORT CARTON, WOODEN BOX

Or as your demand

Delivery Time: 30days after receiving your payment
