Starch filter

Filter starch digestion and absorption of my company on the basis of similar foreign products, combined with the actual use of domestic users, based on my company's products on the DL series design and development of a new generation of filter. Excellence

Technical Feature

  • User-oriented design, should customer required
  • Large capacity, high cutting dry
  • Simple technology and equipment, less investment, strong adaptability
  • Advanced flat-contact dispensing valve, sealing, high vacuum
  • Plates advanced structure, circulati
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5000~50000

PRIMARY PARAMETERS

Brand name
Yisun
Application
Starch
Process input material
Starch milk
Process output material
Starch filter cake
Place of origin
China
Equipment material
-
Power (kW)
Depends
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model XDL5 XDL6 XDL10 XDL12 XDL18 XDL20 XDL25 XDL30 XDL40
Filter area(m2) 5 6 10 12 18 20 25 30 40
Feed concentration(%) 23-28 23-28 23-28 23-28 23-28 23-28 23-28 23-28 23-28
Production capacity(t/m.D) 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6
Cutting dryness(%) ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60
Run the vacuum(Mpa) 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.07
Main motor power(kw) 3 3 3 4 4 4 4 4 5.5
Drum speed(r/min) 8-15 8-15 8-15 8-15 5-8 5-8 5-8 5-8 5-8
Mixing motor power(kw) 1.5 1.5 2.2 2.2 3 3 3 3 4
Stirrer swing(beats/min) 16-25 16-25 16-25 16-25 16-25 16-25 16-25 16-25 16-25
Weight(kg) 3500 4020 4100 4650 6270 6500 7100 8600 11680

DETAIL DESCRIPTION


Starch filter


 Filter starch digestion and absorption of my company on the basis of similar foreign products, combined with the actual use of domestic users, based on my company's products on the DL series design and development of a new generation of filter. Excellence in technology, modern manufacturing, rich experience in the use of mature grain deep processing industry will be accompanied into the future. The product is mainly used in filtration and dewatering and dehydration of potato starch potato skin, the slightest change in the local structure, it can also be used in chemical, pharmaceutical, mining and other industries washed and solid-liquid separation of materials, is an advanced and practical filtration equipment.


Product Features:
    User-oriented design, should customer required
    Large capacity, high cutting dry
    Simple technology and equipment, less investment, strong adaptability
    Advanced flat-contact dispensing valve, sealing, high vacuum
    Plates advanced structure, circulation area, high filtration efficiency
    Use of pre-hanging technology, the filter media becomes starch pre-hung layer and filter, filter effects
    Advanced and practical structure, smooth operation, low failure rate


How it works:
  Starch filter works with the general vacuum drum filter basically the same. Starch granules precoating layer was filtered, the tank body of the slurry, under vacuum suction, is formed on the outer surface of the drum a certain thickness, the cloth will form a mass filter, the filtrate was separated by precoating layer filter via a pipette, the dispensing valve and vapor-liquid separator is discharged to the outer surface of the lower filter cake moisture by scraping blade. In the drum during operation, completed the suction filter, unloading and other work processes.

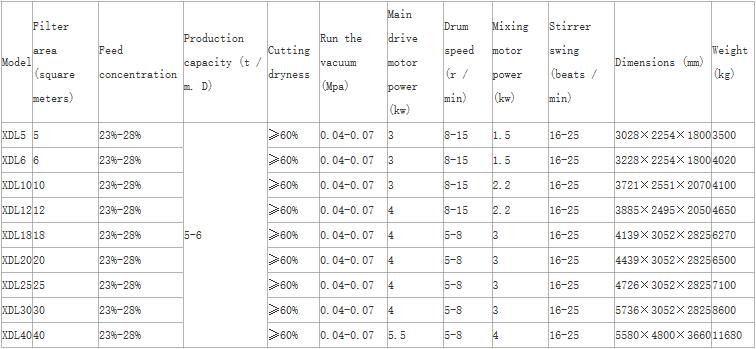

Technical parameters:
