stainless steel 1000l fermenter, industrial fermentor, beer fermentation tanks

is located in Fengxian District of Shanghai, China.

Technical Feature

  • Fermenting Equipment
  • New
  • Shanghai, China (Mainland)
  • Hengcheng
  • MT-10
  • Alcohol
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~8

PRIMARY PARAMETERS

Processing
Fermenting Equipment
Condition
New
Place of Origin
Shanghai, China (Mainland)
Brand Name
Hengcheng
Model Number
MT-10
Processing Types
Alcohol
Voltage
380V
Power(W)
15-70Kw Depends
Dimension(L*W*H)
Capacity Request
Weight
200KG-2000KG
Certification
ISO9001
Warranty
3 Years
After-sales Service Provided
No overseas service provided
Material
Stainless Steel
place of origin
shanghai,china(mainland)
weight
depends on capacity
Capacity
100-5000L
Heating method
Electricity /Steam /Fire
Control system
Pressure Auto Control
Usage
Brewery Pub Hotel and restaurant
Thickness of Tanks
Inner Container/2mm
Volume Design
Customers Specifications

DETAIL DESCRIPTION

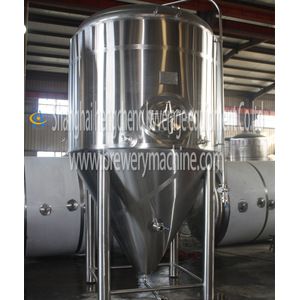

Product Description



Design pressure 15 psi
Interior shell:304 stainless steel,thickness 11 gaugge
Exterior shell:304 stainless steel, thickness 14 gaugge
Exterior and Interior finish bright polish to 250 grit,hygiene surface
60 degree cone bottom, with 25% head space
Racking port and discharge port with butterfly valve and fittings
Side manway door, shadowless
Dual zone dimple cooling jacket with glycol inter and outer (3 zone for large tank)
Polyurethane insulation thickness 2" for cooling jacket on side and bottom
Fully welded exterior shell
4 stainless steel legs with leveling foot pads in stainless steel
CIP arm and spray ball Co2Blow-off arm in 2“
Rotating tank racking arm
PRV 15 psi
pressure gauge
Thermometer
Perlick style Sample valve

Tank complete with fittings ,valves and all parts

Packaging & Shipping

Package

1.LCL/FCL(20GP/40GP/40HQ)

2.Packed with plastic film in fumigation free wooden case or fixed with iron frame

3.Up to export standard, suitable for delivery

4.Customer's requirements available

Company Information

Shanghai HengCheng Beverage Equipment Co., Ltd. is located in Fengxian District of Shanghai, China. Our company specializes in beer equipment and it's parts and Manway's R & D, manufacturing, installation and transformation. To ensure product quality, the product design, the manufacturing, the security installation, the testing etc, the whole process has been effectively controlled in accordance with the requirements of the quality assurance system. With it’s high-quality and cost-effective, Our products have won high praise at home and abroad.

For the domestic and international market trends, "energy saving, environmental protection, clean production," the theme of the beer industry, our company designed for the majority of manufacturers with low energy consumption saccharification equipment, fermentation equipment and ancillary equipment, which extending equipment life, improving energy efficiency.

Shanghai HengCheng Beverage Equipment Co. Ltd. take "Equipment closely work with process technology, process technology to promote equipment innovation" for the purpose of service, according to local conditions, we provide a variety of solutions according to customer requirements, whether it is micro brewing equipment, brasserie beer brewing equipment or larger production of beer equipment, Shanghai HengCheng can provide the corresponding supporting programs and projects from the initial design and planning, to equipment manufacturing and brewing commissioning, to carry out a one-stop service for customers.

Welcome to call, to visit.  Thank you!

wirting to me

wirte to me with following information:

1. material requirement

2. Diameter requirement

3. Thickness requirement

4. order quantity

5. formaing type and other special requirement
