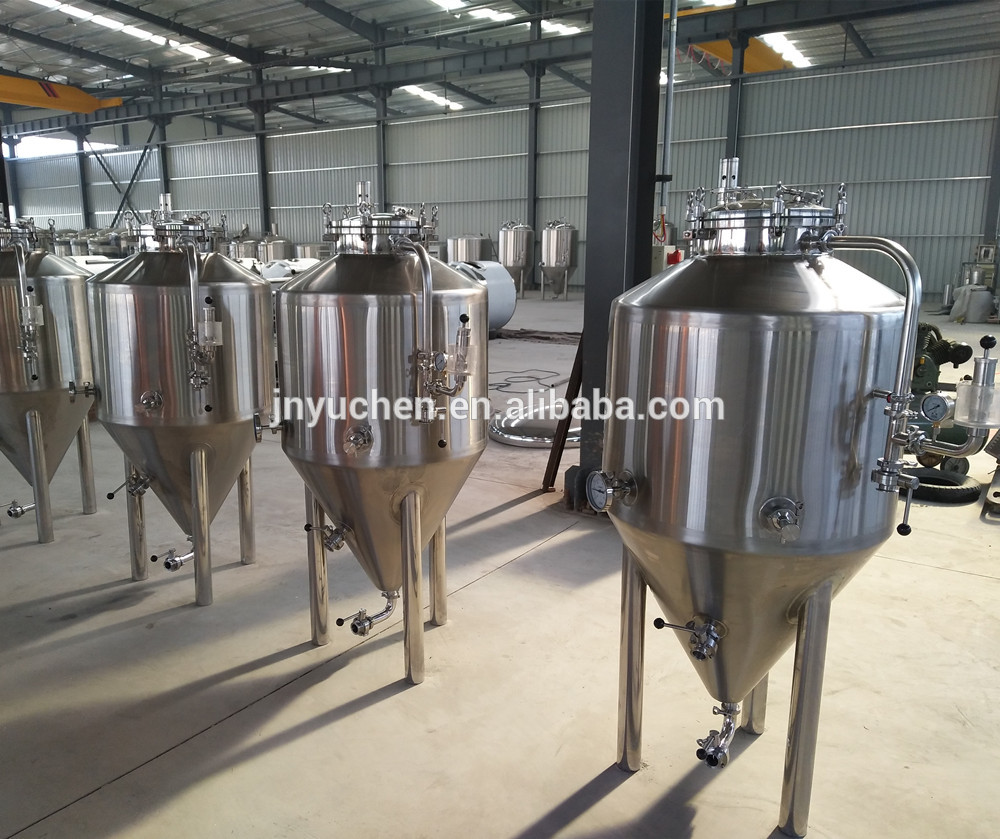

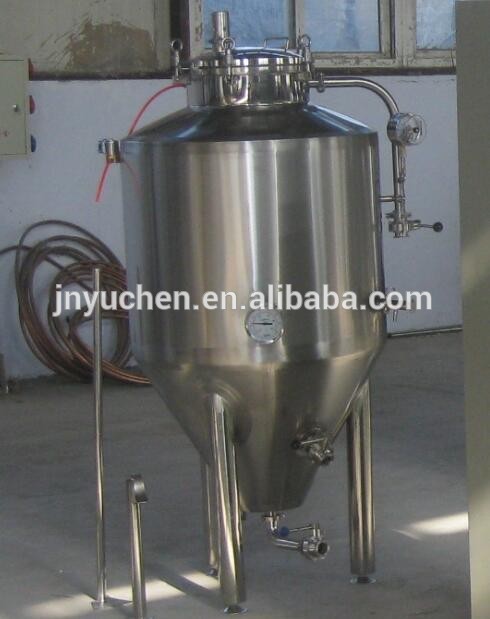

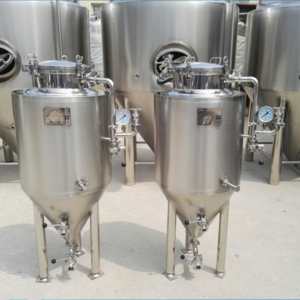

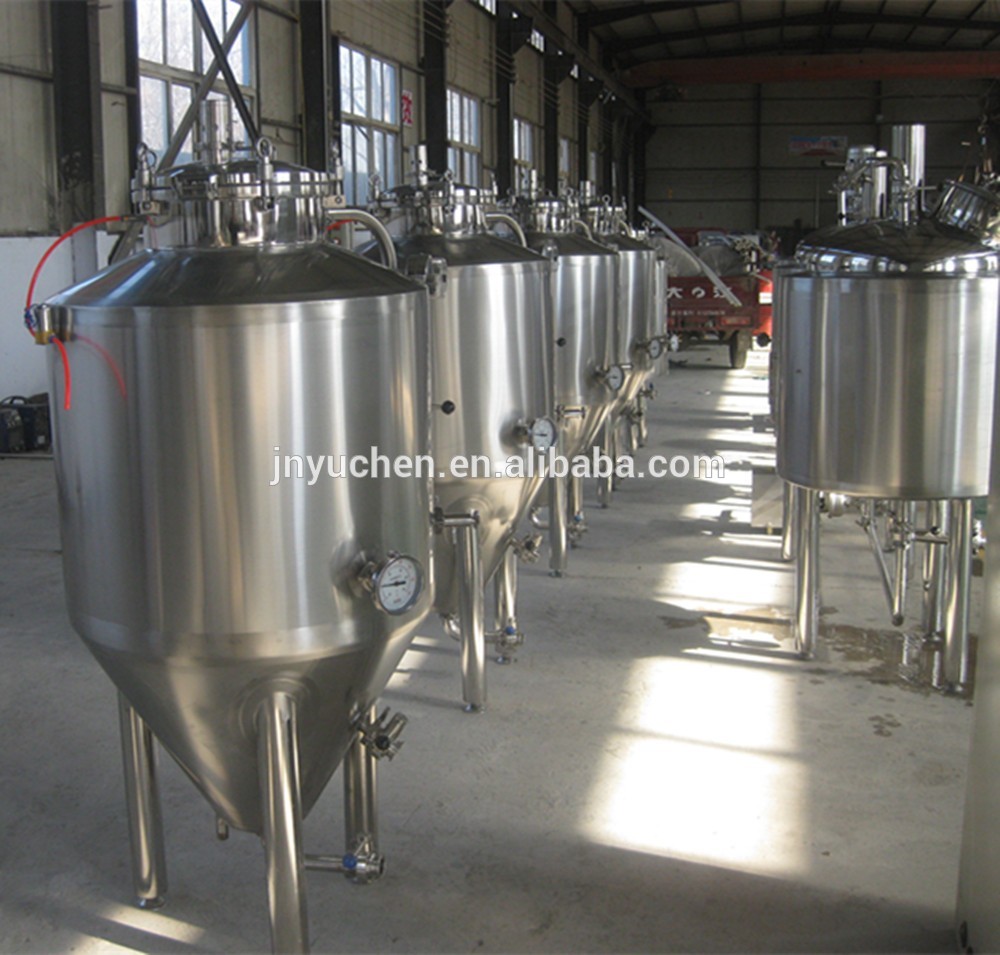

100L beer fermenter
COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
SPECIFICATIONS:
-Total capacity: 120L
-Useful capacity: 100L
-Material:
Inside wall, SUS 304, 3mm
Outside wall, SUS 304, 2mm
Cooling jackets on both cylinder and cone,SUS 304
-Insulation: polyurethane 100mm
-Cone bottom, 60-72 degree
-Cooling jackets on both cylinder and cone
-Inside 360 rotating CIP ball
-Thermowell, 8mm
-Temperature sensor, Model: PT100
-Pressure gauge
-Safety valve on top
-Sample valve on side
-Inside mirror polishing 0.4-0.6 micron
-Working pressure: 0.15Mpa
-Testing pressure: 0.3Mpa
-Wort piping and butterfly valves, ø32mm
-Drainage piping and butterfly valve, ø38mm
-3 legs with adjustable bolts
Optional:
Capacity range: 100L to 20000L per patch, can be customized

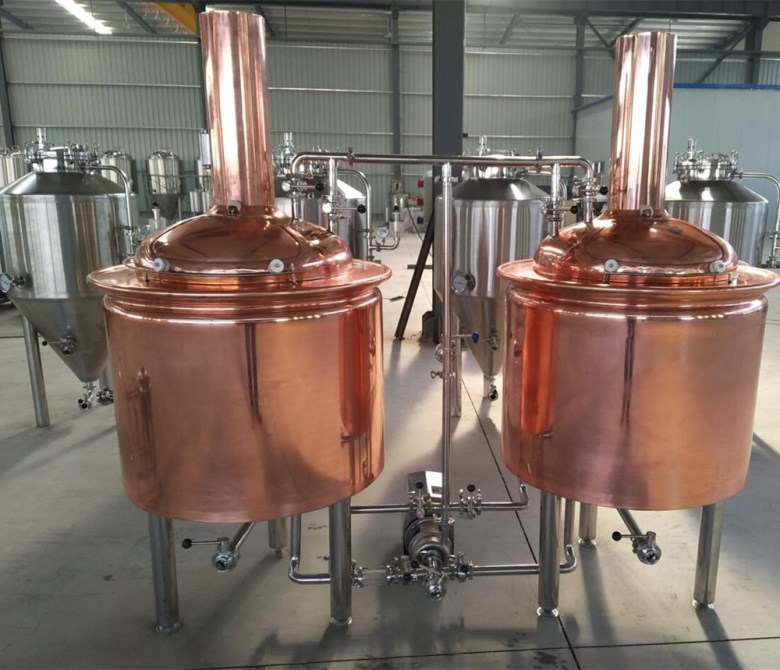

complete beer brewing system, include malt miller, brewhouse system, fermenting system,
cooling system, CIP system, controlling system, filter system.
Beer bottling machines.
Kegs washer and filler.
