1000l copper brewery equipment with conical fermentor

PRIMARY PARAMETERS

Processing

Fermenting Equipment

Condition

New

Place of Origin

Shandong, China (Mainland)

Brand Name

Yuxin

Model Number

YX-10bbl 20bbl 30bbl 50bbl

Processing Types

beer

Voltage

380v/50hz

Power(W)

15-70Kw Depends

Dimension(L*W*H)

Capacity Request

Weight

various in different configuration

Certification

CE ISO UL

Warranty

3 Years

After-sales Service Provided

Engineers available to service machinery overseas

Material

Stainless Steel 304/316

Function

Beer Brewing

Heating method

Electric Steam

Control system

Semi-automatic

Interior thickness

3.0mm

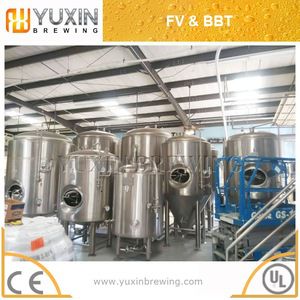

Fermenter Design

25% head space

Process

TIG welding, mirror polishing

Exterior thickness

2.0mm

Inner Polishing Precision

0.4-0.6 Micrometer

area request

20-100M2 depends on size

DETAIL DESCRIPTION

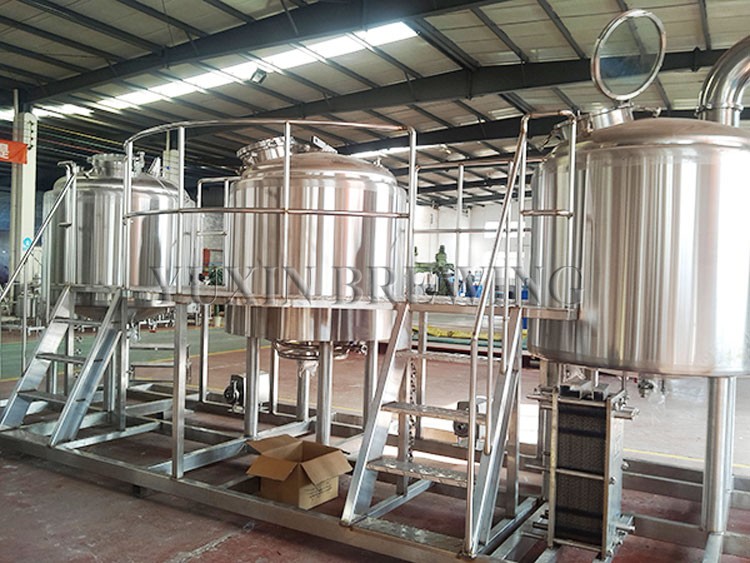

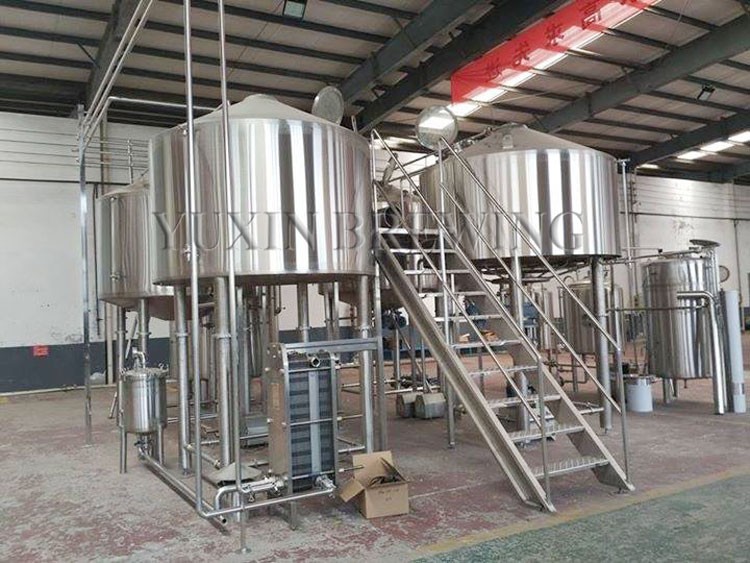

1000l copper brewery equipment with conical fermentors

Basic Overviews

1000-2000L:

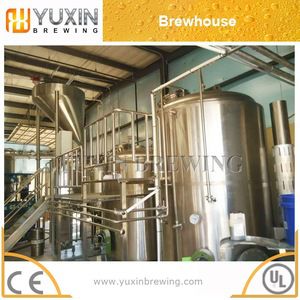

STANDARD FEATURES:

· 1 x kettle/whirlpool tank(steam/electric heated, or direct fire)

· 1 x lauter tank with lauter rakes & grain out plows

· 1 x hot liquor tank

· 1 x SS work platform with sanitary process piping & sanitary valves

· 1 x Sanitary wort pump with variable speed control

· 1 x hot liquor pump

· 1 x Sanitary heat exchanger and wort aeration system

·Stainless steel 304 construction

OPTIONS:

· Separate whirlpool tank

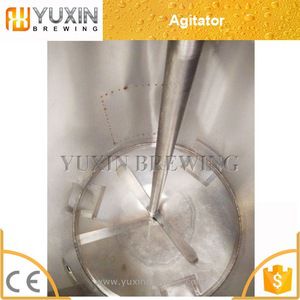

· Separate mash tank with mash mixer & mash pump

· Grist Hydrator

· Grist hopper

· Wort grant

· Outer wall: copper construction

2000-5000L:

STANDARD FEATURES:

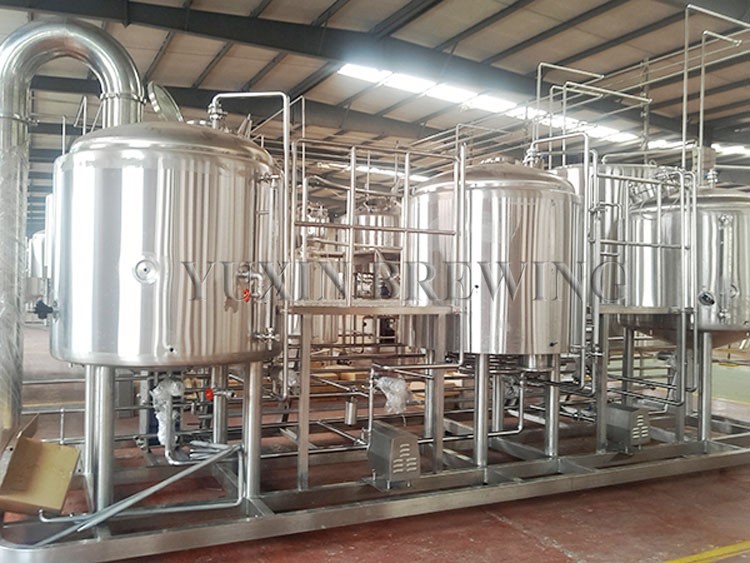

· A: 1 x mash tank, 1 x lauter tank, 1 x kettle/whirlpool tank

· B: 1 x mash/lauter tank, 1 x kettle tank, 1 x whirlpool tank

· Steam/electric heated, or direct fire

· Lauter rakes & grain out plows

· 1 x hot liquor tank

· 1 x SS work platform with sanitary process piping & sanitary valves

· 1 x Sanitary wort pump with variable speed control

· 1 x hot liquor pump

· 1 x Sanitary heat exchanger and wort aeration system

· Stainless steel 304 construction

OPTIONS:

· Separate whirlpool tank (if A)

· Separate mash tank with mash mixer & mash pump (if B)

· Grist Hydrator

· Grist hopper

· Wort grant

· Outer wall: copper construction

Specification

Model Items	YX-1000	YX-2000	YX-3000	YX-4000	YX-5000
Capacity	1000L/Day	2000L/Day	3000L/Day	4000L/Day	5000L/Day
Area Request	100M2	150M2	200M2	300M2	400M2
Installed Power	15Kw	20Kw	25Kw	35Kw	40Kw
Steam Request	0.15Ton/Hr	0.2Ton/Hr	0.2Ton/Hr	0.3Ton/Hr	0.3Ton/Hr
Water Consumption	2M3/Day	3M3/Day	5M3/Day	6M3/Day	8M3/Day

Our Advantage

1.Free consulation service before,during and after sales

2.Turkey brewery projects plan and design service

3.Layout plan in CAD drawings of your brewing tanks

4.Management of long distance shipping from seller's factory to named port or station by buyer

5.Professional engineers going abroad for the installation,debugging,and training

6.Provide three years complete warrantee for main parts and life-time maintenance service

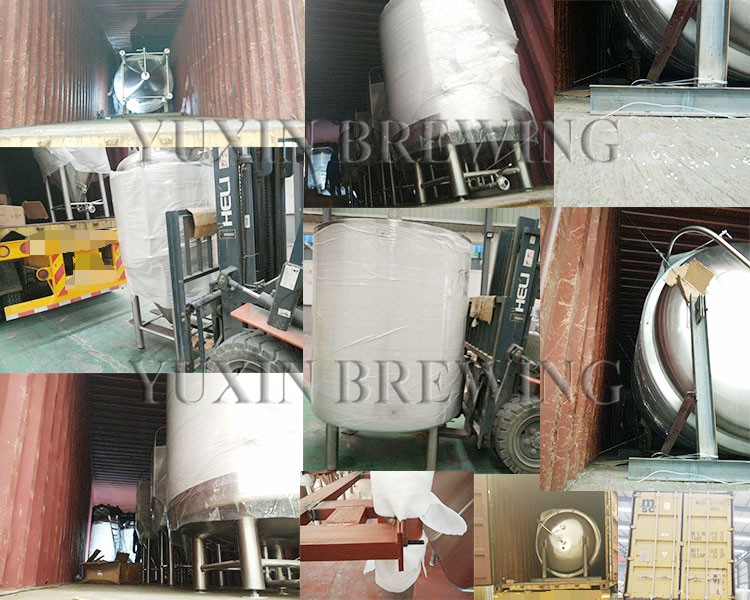

Packaging & Shipping

Our Services
