Detailed Product Description

I, Applicable scope

1, the mechanism for screw extrusion granules, rock granules, wet high-speed mixing granulation.

2, pharmaceutical, foodstuff, feed, chemical and other fields wet granular and powder drying  materials.

3, large granules, small bulk, viscous granular materials.

4, konjac, polyacrylamide dry volume variation of material.

II, Equipment characteristics

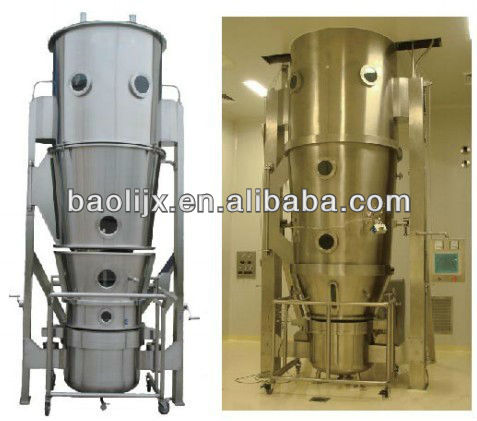

1, the fluidized bed is a circular structure, avoid dead ends.

2, set the mixing hopper, avoiding agglomeration of wet raw material and forming channel.

3, the overturning blanking which is convenient and fast, also designed by automatic feeding system.

4, Operation in a closed negative pressure environment , airflow through the filter. Simple operation, easy cleaning, is according to the GMP requirements.

5, Enjoy quick drying speed, uniform temperature, each batch can dry generally 20 ~ 60min.

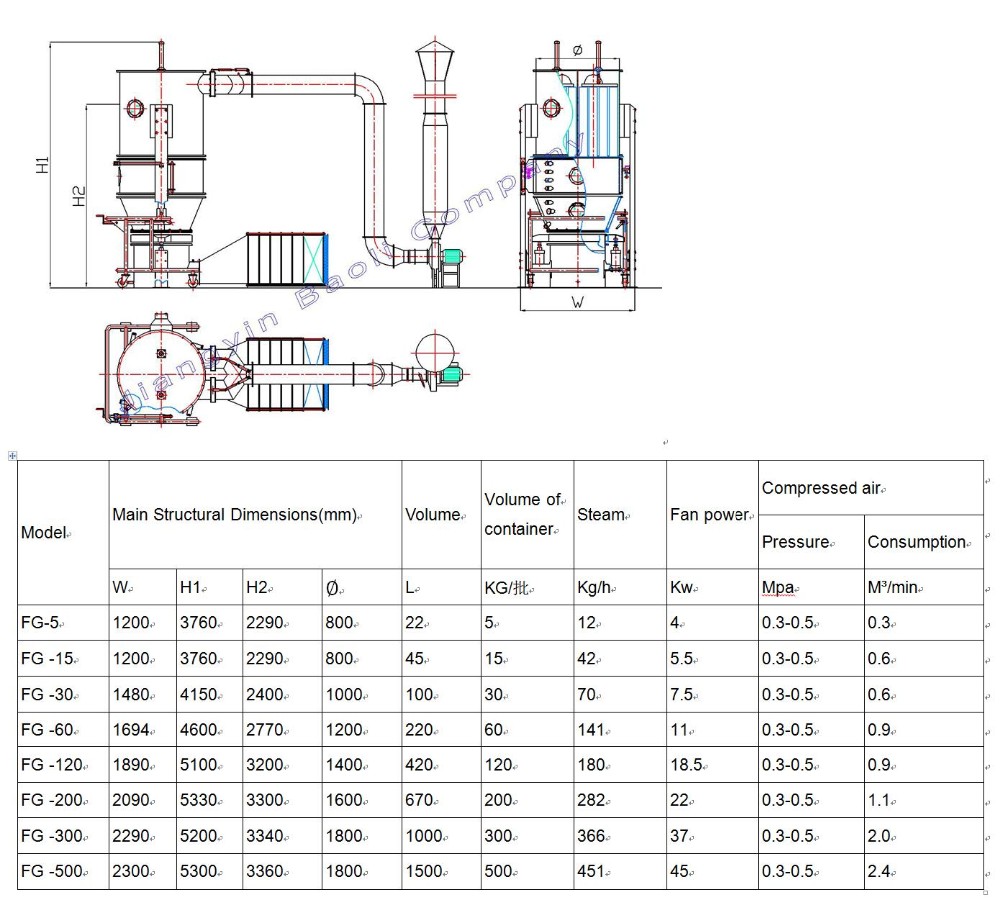

III, 120 type_Technical parameters

1, air volume: 4901m3 / h

2, pressure: ~ 5300Pa

3, wind power: 18.5kW

4, the stir power: 0.75kW

5, the stirring speed : 0 ~  11rpm,

6, skip volume: 500L

7, steam heat source: steam

8, heating area: 120 square meters

9, steam consumption: 240 kg / h

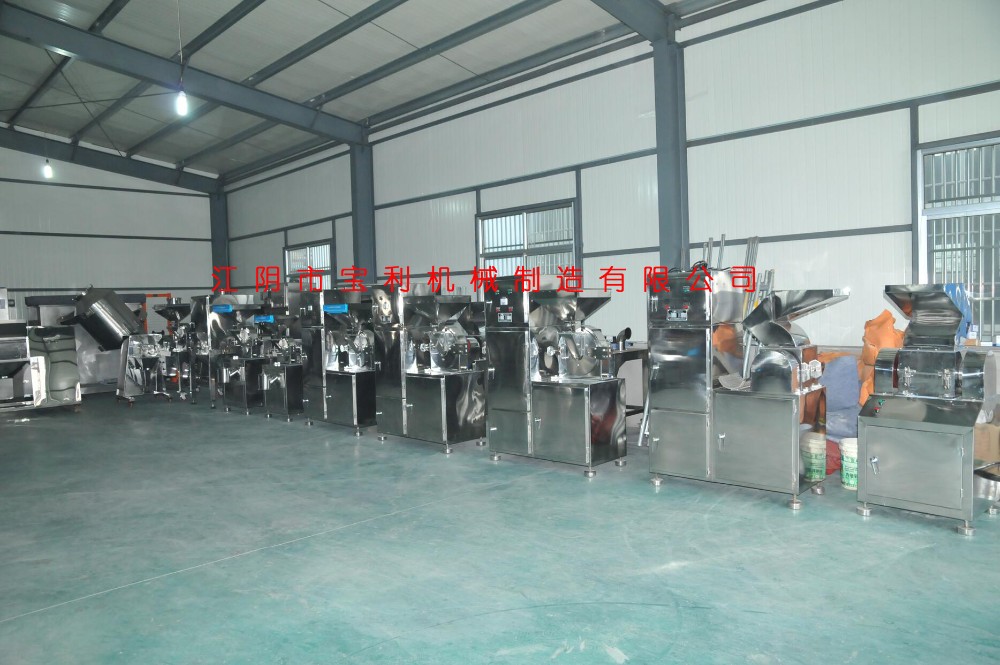

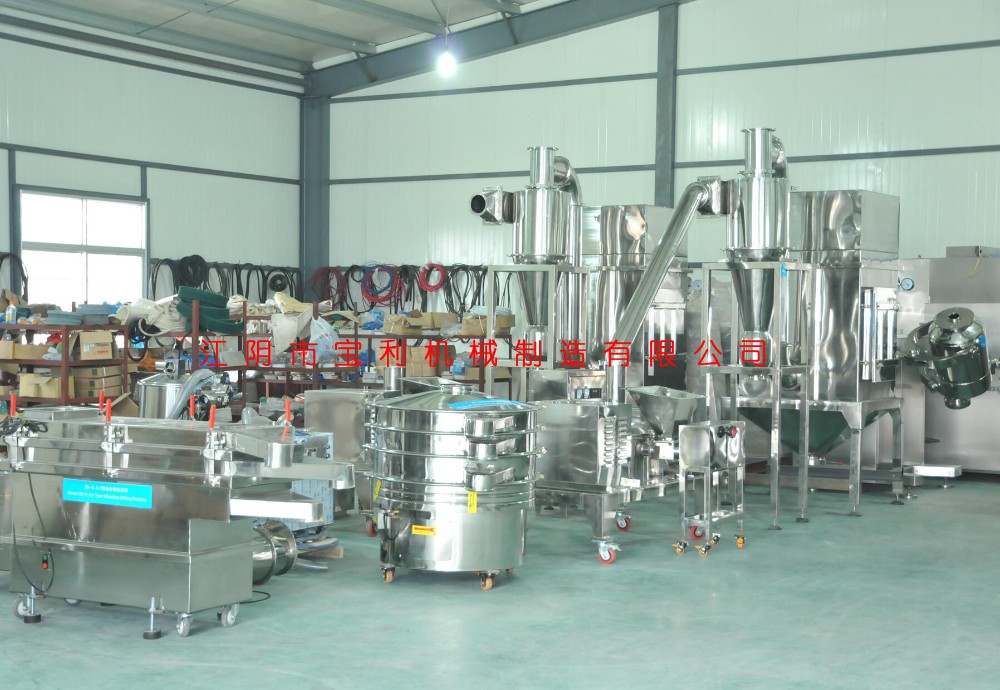

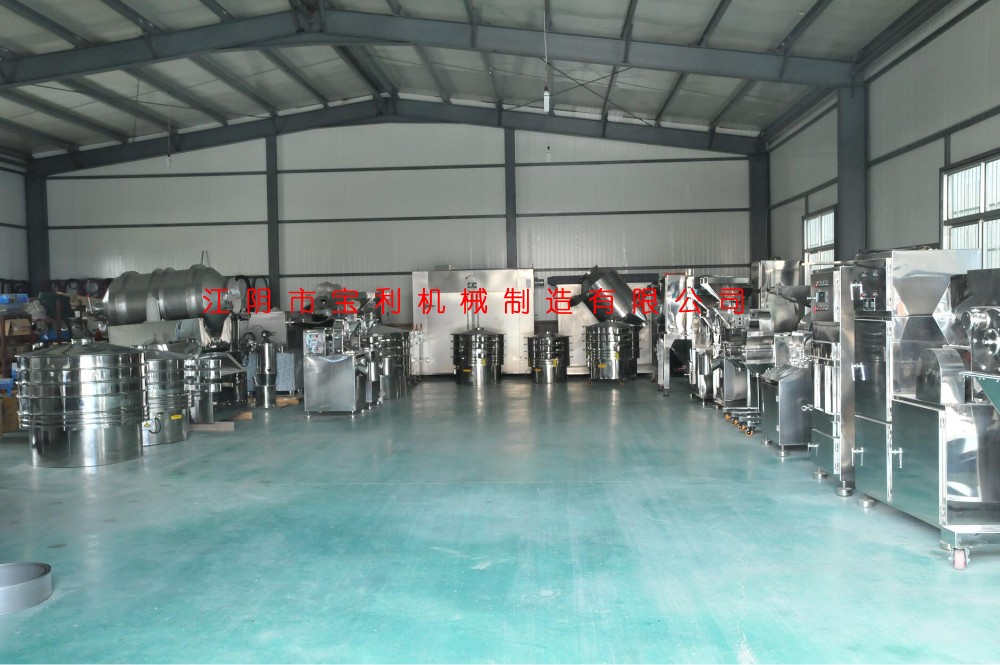

Warehouse Look:

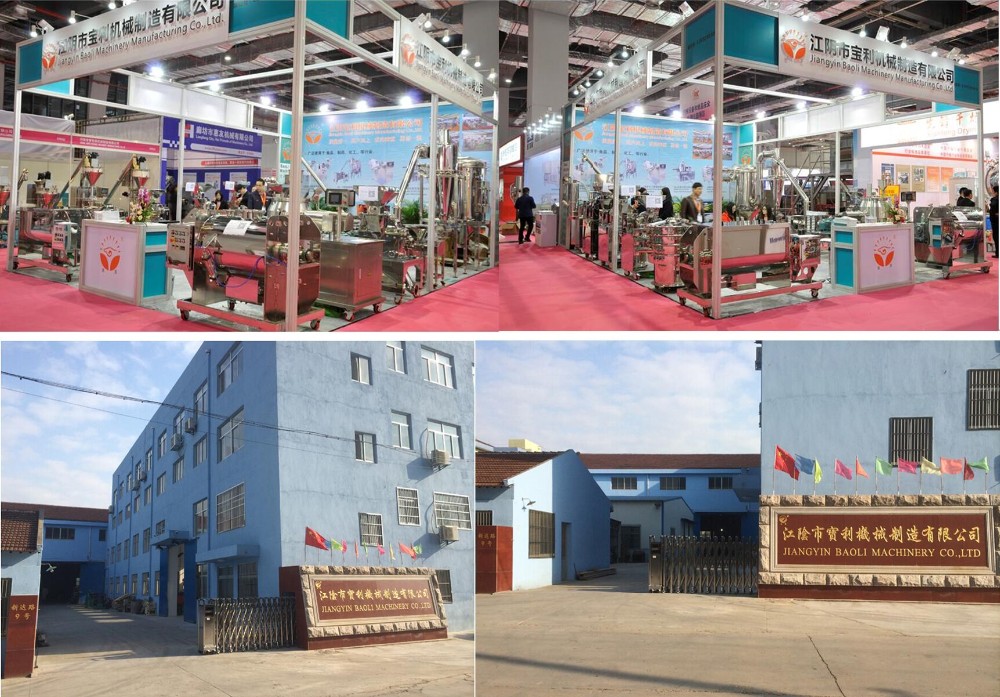

Factory look:

If you want to send inquriy to me about our JB powder mixing machine, could you please tell me?

1)  What material you want to dry?

2)  What capacity you expect ? (kg/batch or litre/batch )

3)  What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

     (We only provide 3P, because our machines are all for industrial use,not for family.)

4)  What material of the equipment you want? usually we adopt all stainless steel 304.

     You can also choose  A all carbon steel

                                       B contact part SS304, other parts carbon steel

                                      C all SS 316

                                      D contact part SS 316, other parts SS 304

Then our communication will be more efficient.
