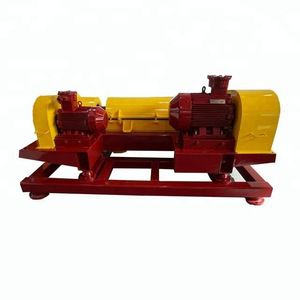

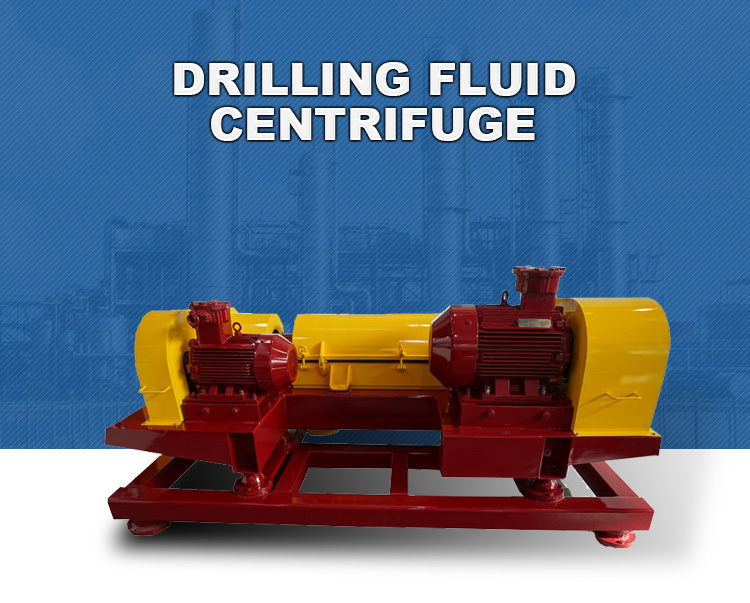

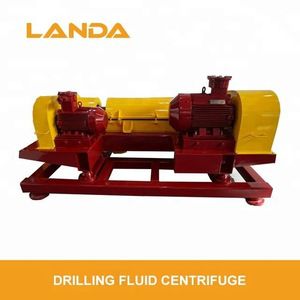

Drilling fluid centrifuge is an important solid control equipment in the drilling platform, It can separate the solid phase greater than 2μm, effective solution of cyclone can’t separate the problem of superfine and harmful solid phase. The centrifuge can quickly recover the specific gravity of drilling fluid, provide reliable assurance for efficient and scientific drilling. It is mainly divided into drilling fluid medium speed centrifuge and drilling fluid high speed centrifuge.
Characteristics:
1. The drum and propeller parts are made of high quality 304 or 316 stainless steel, High quality and long service life.
2. The outlet of drilling fluid centrifuge drum used hard alloy sleeve or ceramic Mosaic, outlet is more durable.
3. Spiral propeller discharge surface spray welding tungsten carbide wear-resistant layer, it is more durable.
4. Bearings are German FAG or Swedish SKF brand products, Top quality, trustworthy.
5. Electrical components for Siemens, Schneider and other international brands.
6. Large capacity, suitable for most drilling fluids.
7. Easy to install and easy to operate.
Advantage:
1. Inherit the advantage of all drilling fluid medium speed centrifuge, wide range of application.
2. Faster speed, higher accuracy, better meet user needs.
3. Unique model, super long drum length, higher processing effect.
4. Competitive price, high cost performance.
Medium speed drilling fluid centrifuge parameters.
model | LW450x842N | LW450x1000N | LW600x1019N |
drum diameter | Φ450mm | Φ450mm | Φ600mm |
drum length | 842mm | 1000mm | 1019mm |
slenderness ratio | 1.9 | 2.2 | 1.7 |
Drum shape | Columns taper structure | Columns taper structure | Columns taper structure |
revolving speed | 1800rpm | 2200rpm | 1500rpm |
main motor power | 22KW | 30KW | 55KW |
Auxiliary motor power | 5.5KW | 7.5KW | 11KW |
maximum throughput | 40m³/h | 50m³/h | 60m³/h |
separation point | 5~7μm | 5~7μm | 5~7μm |
separation factor | 815G | 1215G | 705G |
Supply pump power | · 4KW(deeply embedded) | · 5.5KW(deeply embedded) | · 7.5KW(deeply embedded) |
boundary dimension | 2600×1550×1650 | 2750×1550×1700 | 2900×1600×1700 |
· Weight | 2200kg | 2800kg | 3500kg |
High speed drilling fluid centrifuge parameters
model | GLW355x1258D-N | GLW450x1258D-N | GLW530x1320D-N |
drum diameter | Φ355mm | Φ450mm | Φ530mm |
drum length | 1258mm | 1258mm | 1320mm |
slenderness ratio | 3.5 | 2.8 | 2.5 |
Drum shape | Columns taper structure | Columns taper structure | Columns taper structure |
revolving speed | 3200rpm | 3000rpm | 2800rpm |
main motor power | 30KW | 37KW | 55KW |
Auxiliary motor power | 7.5KW | 11KW | 11KW |
maximum throughput | 35m³/h | 60m³/h | 65m³/h |
separation point | 2~5μm | 2~5μm | 2~5μm |
separation factor | 2035G | 2250G | 1817G |
Supply pump power | 7.5KW(deeply embedded) | 7.5KW(deeply embedded) | 7.5KW(deeply embedded) |
boundary dimension | 2900×1480×1650 | 2900×1550×1650 | 3300×1700×1750 |
· Weight | 3000kg | 3200kg | 4000kg |
Pre-sale Service
According to the customer's demand, Landa petroleum technology and sales personnel provide the best supporting solution for users in the first time, solving the problem of customer demand.
After Sales Service
Guarantee & Commissioning
According to the customer's demand, Landa petroleum technology and sales personnel provide the best supporting solution for users in the first time, solving the problem of customer demand.
Emergency Service
For domestic users
If the equipment is broken, the company promised to arrange engineers within 1, 000 km to arrive at the site within 48 hours;1000km away, the company will arrange engineers to arrive at the site within 72 hours.
For domestic users
According to the requirements of each country, the company will arrive at the user site as soon as possible.

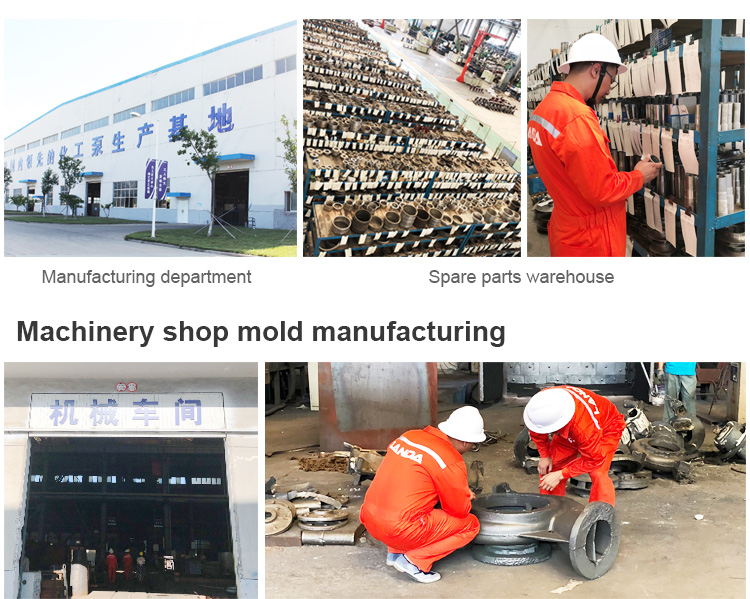

Spare Parts
The company has establish a certain warehouse and service organization in China, and will continue to expand its service institutions, and ensure spare parts inventory and timely supply for customer accessories.
