Chinese Drilling Mud Horizontal Decanter Centrifuge Manufacturer

Product Description Oilfield Equipment Drilling Mud Decanter Centrifuge  1.Drilling Mud decanter centrifuge adopts centrifugal force to separate solid particles out of drilling fluid. 2.Different solid or particle have different density and flow

Technical Feature

  • New
  • Centrifuge
  • Other
  • Hebei, China (Mainland)
  • OGEM Solids Control
  • AJLXJ series
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$36~48

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Product Description

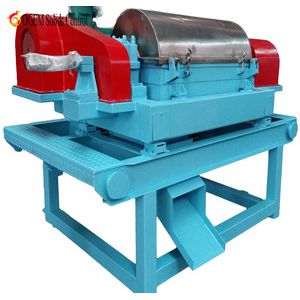

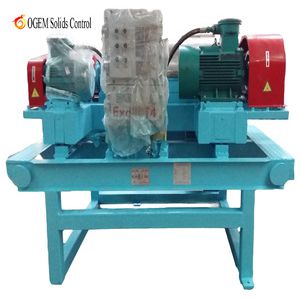

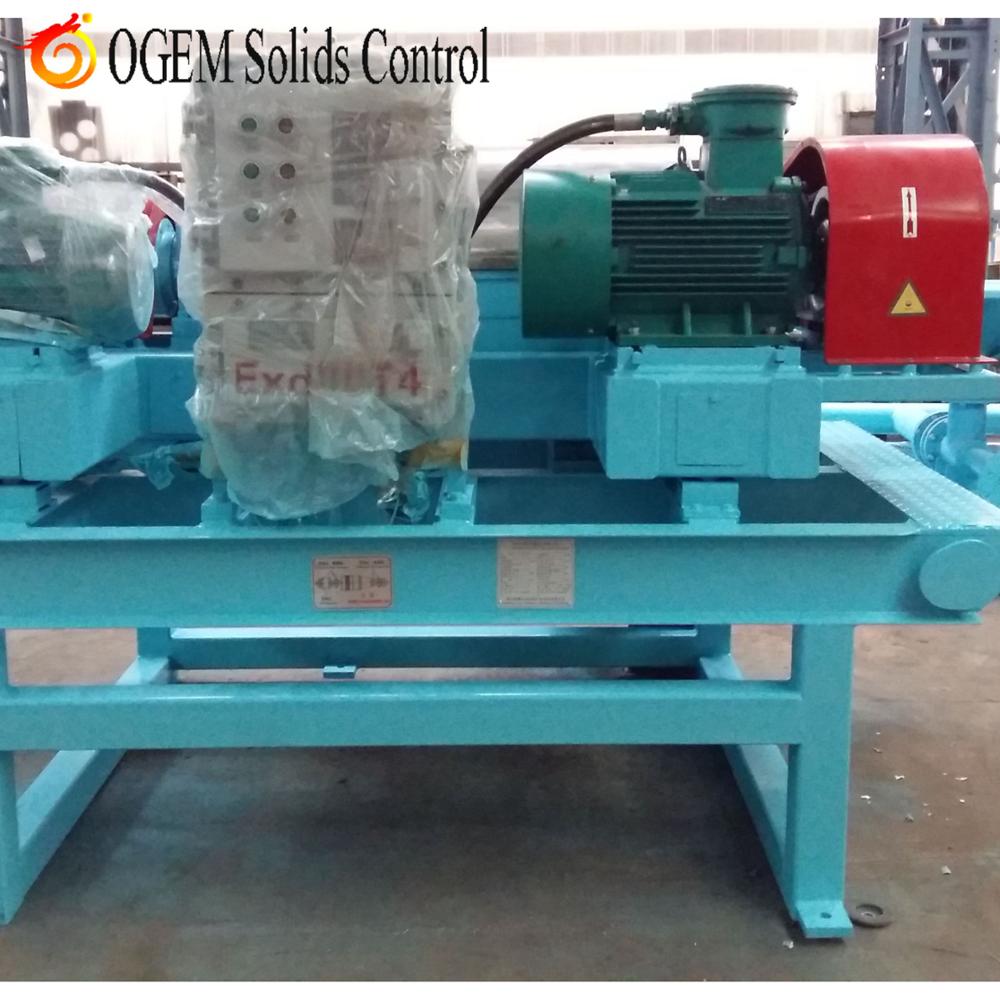

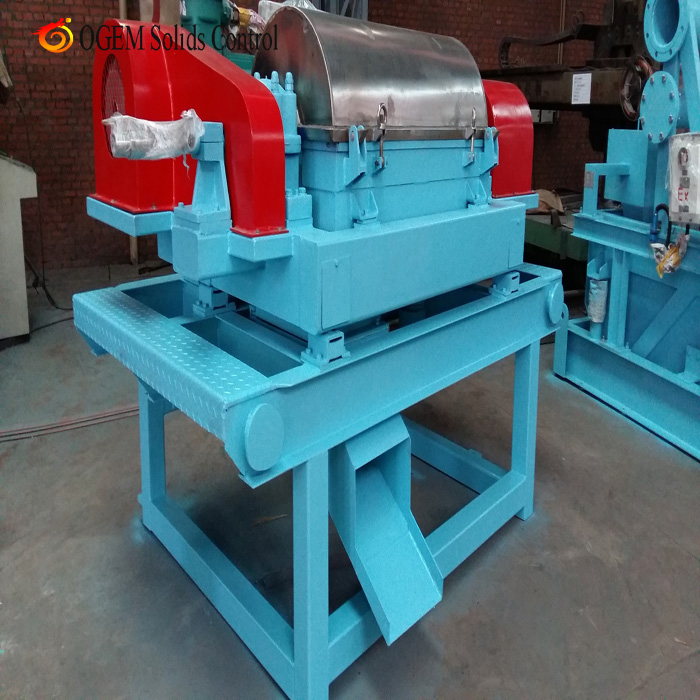

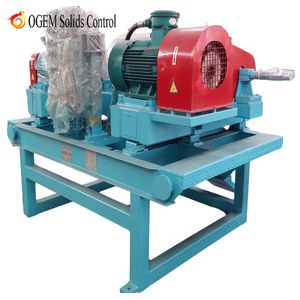

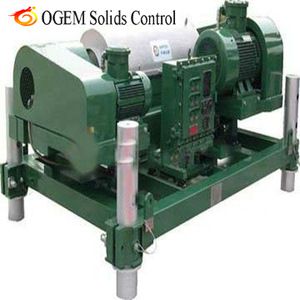

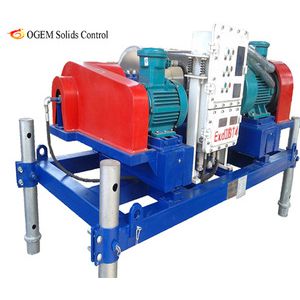

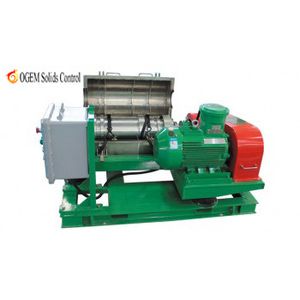

Oilfield Equipment Drilling Mud Decanter Centrifuge





1.Drilling Mud decanter centrifuge adopts centrifugal force to separate solid particles out of drilling fluid.



2.Different solid or particle have different density and flow speed, some of AJLXJ series decanter centrifuge also can separate particles as different size and density.



3.OGEM Solids Control AJLXJ decanter centrifuge is widely used in oil and gas drilling, chemical, foodstuff, pharmacy, mineral beneficiation, water treatment, etc. industries.





 Technique parameters of horizontal decanter centrifuge

Model

AJLXJ450x842NAJLXJ450x1000NAJLXJ700x1200NAJLXJ600x1000
Bowl diameter 450mm 450mm700mm 600mm
Speed 1800RPM 1800RPM1800RPM 1800RPM
Separation factor 815G 815G1268G860G
Separation size 5~7μm 5~7μm 5~7μm 5~7μm
Main drive motor 22KW-4p
30hp		 30KW-4p
40hp		55KW-4p
75hp		 45KW-4p
60hp
Back drive motor 5.5 KW-4p
8hp		 7.5 KW-4p
10hp		15KW-4p
20hp		 7.5 KW-4p
10hp
 Treating capacity ≤40m3/h ≤60m3/h≤90 m3/h ≤60m3/h
Weight 2550kg 2700kg4300kg 4580kg
Dimension (mm)2360x1850x17502600x1850x17503250x1800x21802700x1880x1800

























































ModelAJLXJ600x1500NAJGLXJ355x1250NAJGLXJ450x1258N
Bowl diameter600mm 355mm450mm
Speed2600RPM 3200RPM2800RPM
Separation factor2268G 2035G2191G
Separation size2~5μm 2~5μm2~5μm
Main drive motor55KW-4p
75hp		 30KW-4p
40hp		37KW-4p
50hp
Back drive motor15KW-4p
20hp		 7.5 KW-4p
10hp		11KW-4p
15hp
Treating capacity≤90m3/h ≤40m3/h ≤60m3/h
Weight4000kg 2950kg3000kg
Dimension (mm)3200x1700x18002900x1850x17502950x1620x850

























































 oil decanter centrifuge



Contact Information

Lisa Ma

Skype:maxiaoqiu16

ogem3(AT)ogemsolidscontrol.com

Whatsapp:8615733797085

OGEM Solids Control

Tangshan Aojie Petroleum Machinery Equipment Make Co.,Ltd

Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Standard Inquiry

Tangshan Aojie Petroleum Machinery Equipment Make Co., Ltd.

Shale Shaker,Mud cleaner,Hydrocyclone desander,solids control system,mud tank

China
Supplier Page Contact Supplier

Products From Supplier

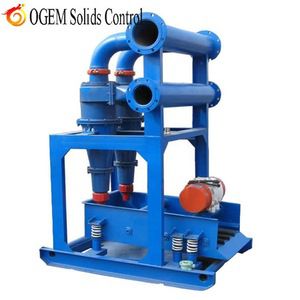

TBM Separation Plant hydrocyclone cyclone desander

Ltd is an intergated company specialized on designing, producing and selling mud process equipments and system.

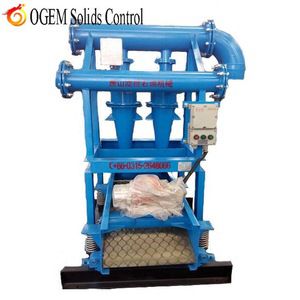

Trenchless mud recycling system solids control unit desander

Ltd is an intergated company specialized on designing, producing and selling mud process equipments and system.

Kaolin Extraction Screen Continuous Decanter Centrifuges

Description of Drilling Mud Decanter Centrifuge 1.Drilling Mud decanter centrifuge adopts centrifugal force to separate solid particles out of drilling fluid.  2.Different solid or particle have different density and flow speed, some of LXJ serie

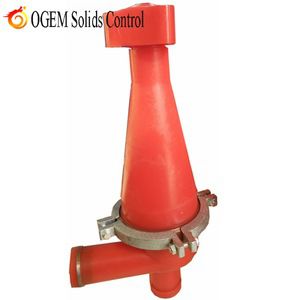

For classification and desliming FX mining polyurethane cyclone
