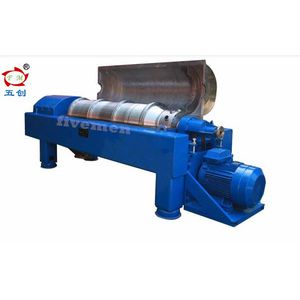

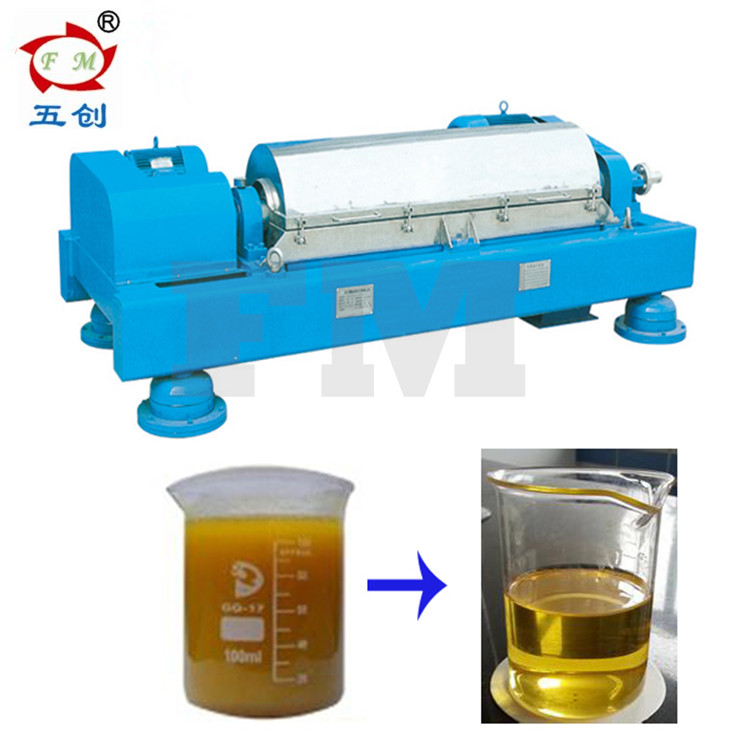

LW horizontal sludge dewatering decanter centrifuge for wastewater treatment plant
| Product Descripition |
Instruction

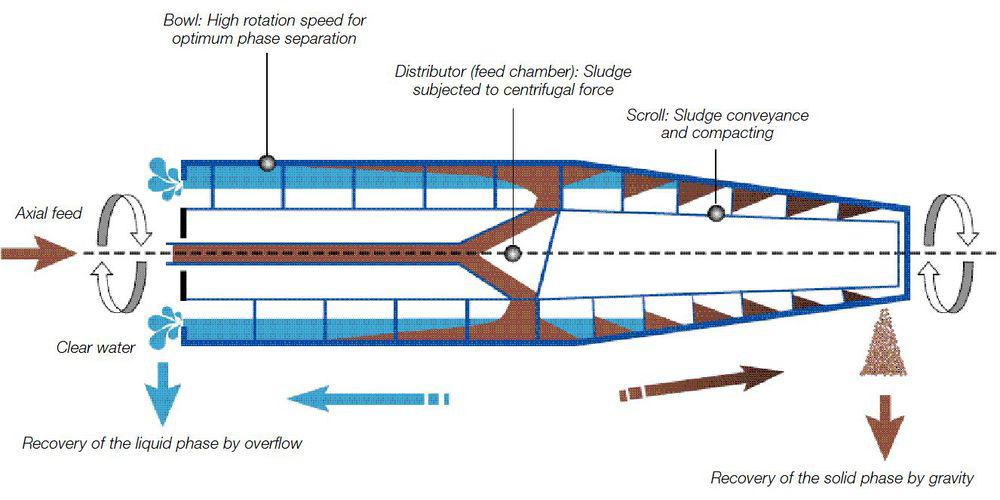

Horizontal screw continuous decanter centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or classify 1um-5um solid phased particles. This is three phase decanter centrifuge, which can separate the water and solid from the oil.
Feature
It is wide application range, work continuously, large processing capacity, low cost, convenient
maintenance and so on. It is the best equipment for separating solid-liquid.
Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Application:
It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)
LW two phase appication in :
Liquid clarification: to remove the solid particles in suspension to get clarify liquid.
Solid phase dehydration: dealing with the solid particles to reach dehydration material.
Particle size classification: to remove solid particle of large size in material.

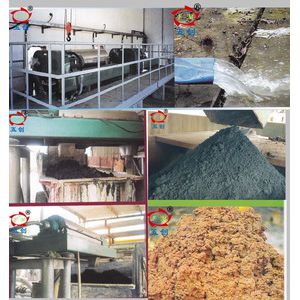

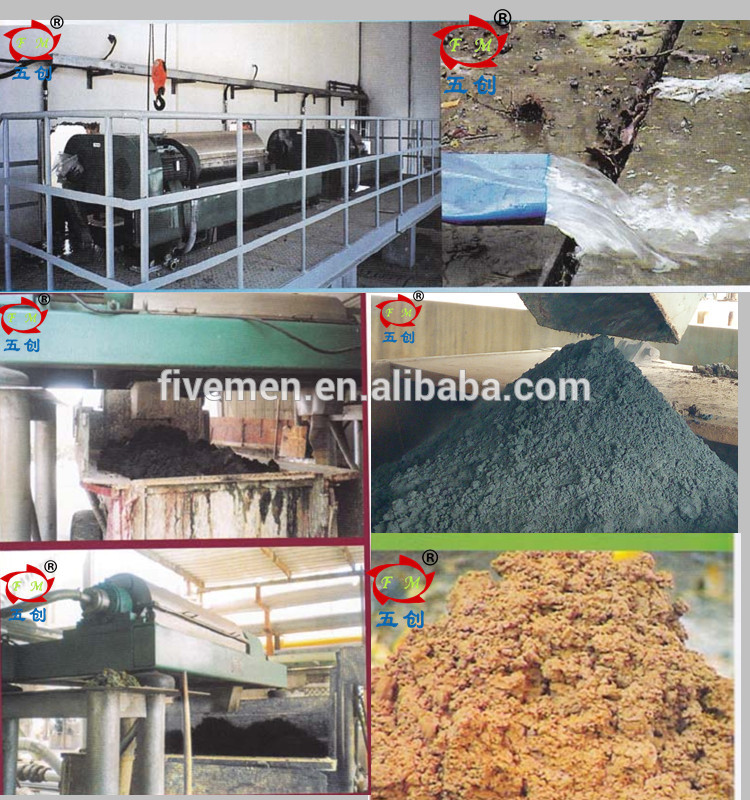

1. coking, industrial sludge concentration, sludge dewatering
2. Food and drink fruit juice slag, slag of animal oil, plant oil, Soy protein isolates of dehydration,
concentration of fish protein, wheat starch B dehydratio.
3.Chemical * barium dehydration, kaolin industry classification and grade of graphite and PPT,
classification of drilling mud.

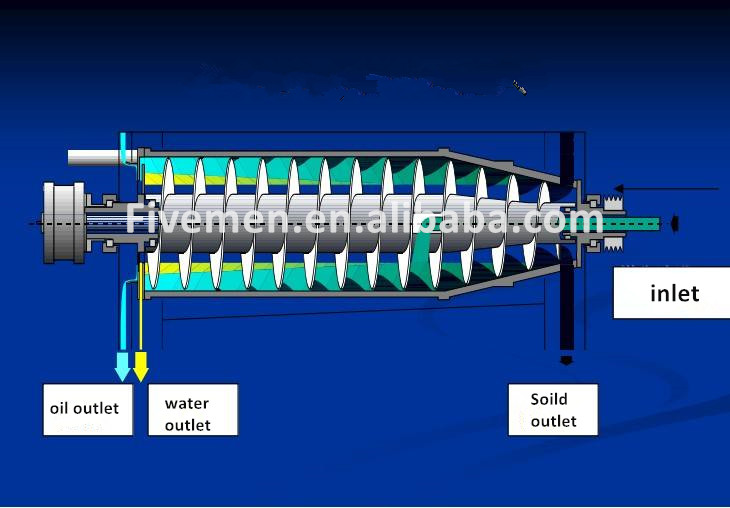

LWS three phase centrifuge
For three phase separation, to remove moisture and solid sludge from all kinds of oil.
Soybean oil separator, coconut oil separator, olive oil separator, sunflower oil separator ect.
Such as all kinds of plant oil, all kinds of animal oil, Restaurant waste oil, petroleum,
heavy engine oil ect.
| LW Two Phase |
Type No. | Length to diameter ratio | Drum speed (r/min) | Motor power(KW) |
LW260 | 3.5-4 | 5000 | 7.5-11 |
LW355 | 4200 | 11-37 | |
LW420 | 2-4.5 | 3800 | 15-45 |
LW450 | 2-4.5 | 3300 | 18.5-45 |
LW480 | 2-4.5 | 3000 | 18.5-55 |
LW530 | 2-4 | 3450 | 22-75 |
LW650 | 2-4 | 2800 | 37-110 |
LW750 | 2-4 | 2500 | 55-132 |
| LWS Three Phase |
Type No. | Length to diameter ratio | Drum speed (r/min) | Motor power(KW) |
LW355 | 2-4 | 4000 | 11-30 |
LW420 | 2-4 | 3600 | 15-37 |
LW530 | 2-4 | 3000 | 18.5-45 |

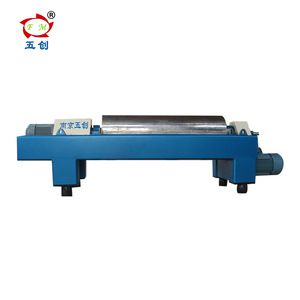

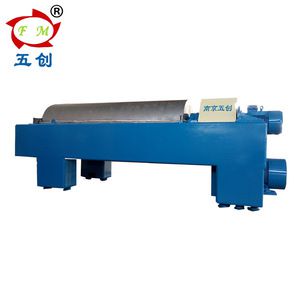

The two phase

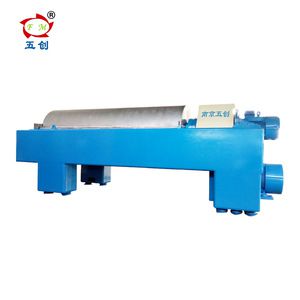

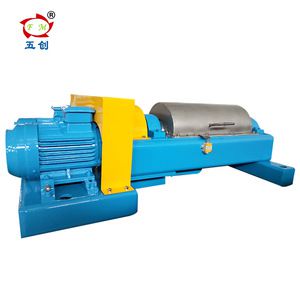

The three phase
1. 12 months guarantee period from machine arrive date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4.7* 24 hours technical consultation.
5.Your workers could get trained both in our factory and yours.
6.Routine tracing till the machine work properly will be done timely.
7.We will remind you to do the normal maintenance.
8.Your suggestions or any comments & reflection would be treated in priority.
9.Marketing team will visit you during our visit to your country if your require.
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
