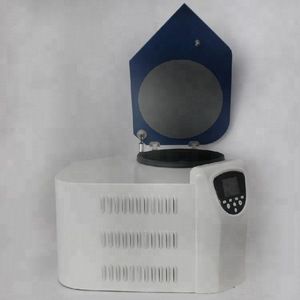

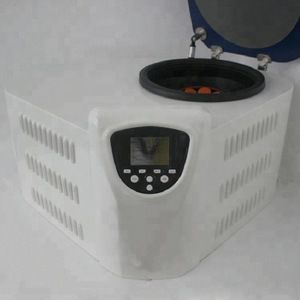

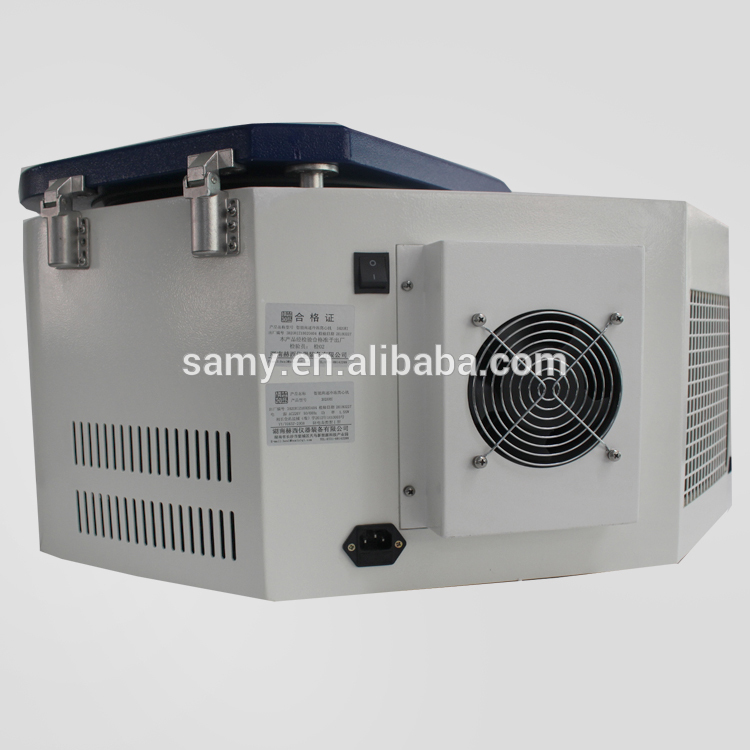

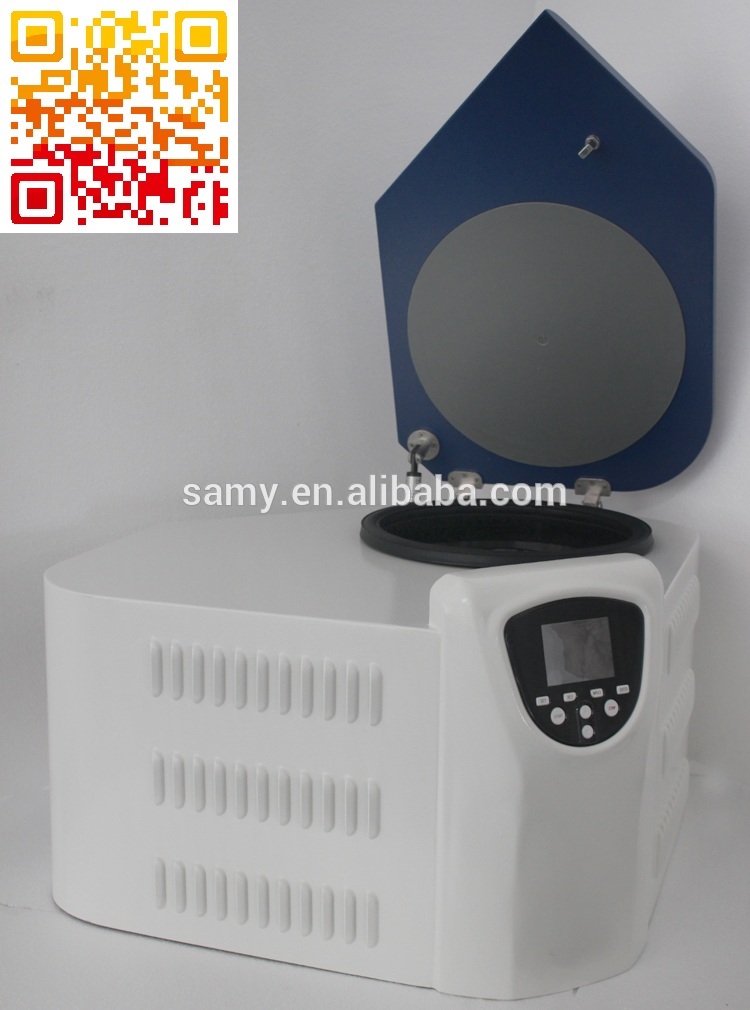

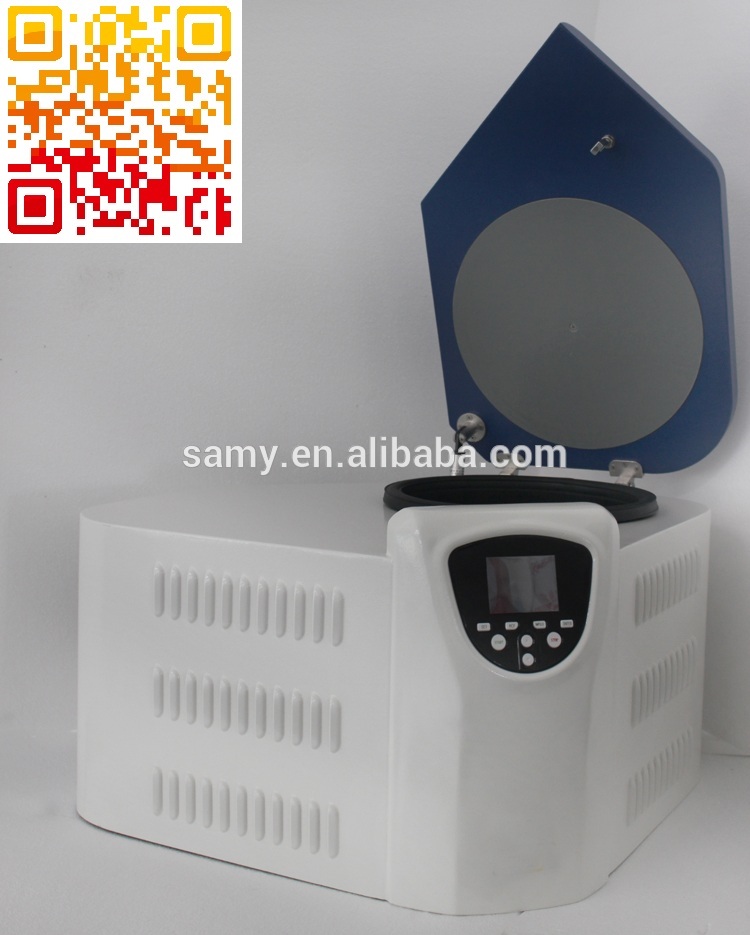

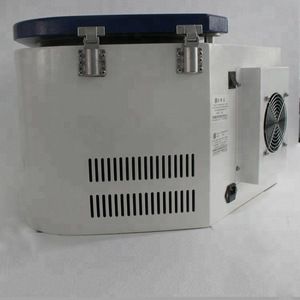

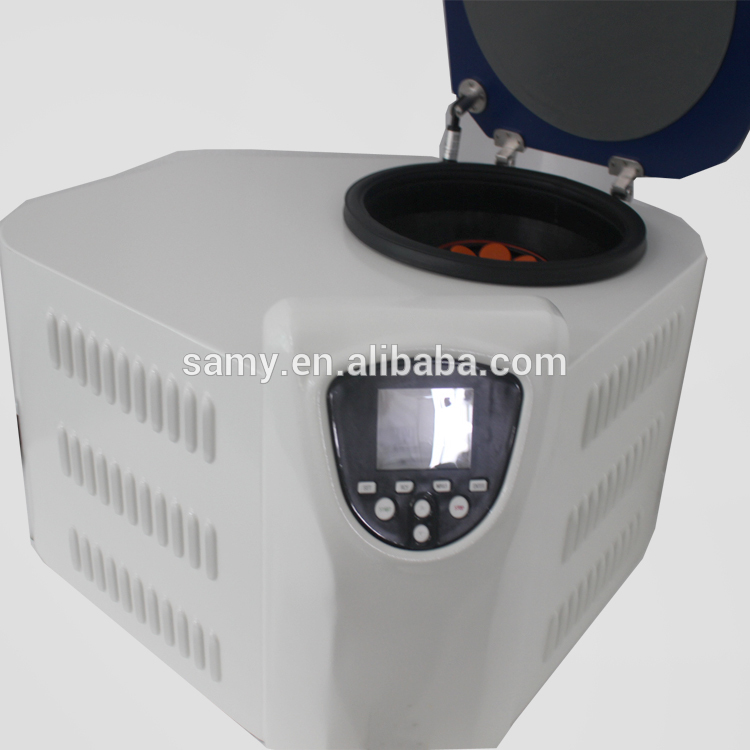

3H20RI desktop horizontal prp centrifuge
As an advanced intelligent device, Intelligent high speed refrigerated centrifuge is widely applicable in a variety of fields such as biochemistry, medical treatment and public health, and pharmaceutical products. It is ideal equipment for separation, precipitation, concentration and preparation of samples and a high-tech product that can compare favorable with import ones and be exported in large quantities .
Features:
§ Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchip’s dsPIC30F series and driven by a special driver module of FAIRCHILD’S FSBB30CH Series to ensure the circuit’s reliability .
§ With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly. With triple protective layers of steel bushings to achieve secure and reliable operation as well as personnel and equipment safety.
§ With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones .
§ With a motor gate lock mute mechanical & electrical integration .
§ Able to provide more than 100 kinds of operating modes for the user to programme and use freely .
§ 10 levels speed-up and speed-down control .
§ Maximum rotation speed : 20800 r/min, Maximum centrifgal force :30000 xg .
3H20RI desktop horizontal prp centrifuge
| Model | 3H20RI Intelligent High-speed refrigerated centrifuge |
| Max Capacity | 4×100ml Swing bucket rotor |

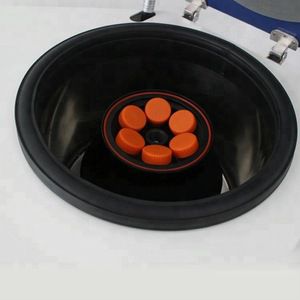

| Standard rotor | 12×1.5/2.0ml |
| Max Speed（r/min） | 20800 r/min |
| Max RCF（×g） | 30000 xg |
| Speed precision | ±50r/min |
| Refrigeration system | Import fluoride-free compressor and control valve（R404a） |
| Operation programe | 100 |
| Control and drive systerm | AC Frequency motor, micro-control |
| Temp.control range | -20℃～+40℃ |
| Temp.precision | ±1℃ |
| Timer range | 0-99h59min |
| Total power | 1.5 Kw |
| Noise | ＜65 dB (A) |
| Dimension（L×W×H） | 710×630×350 mm |
| weight | 75 kg |

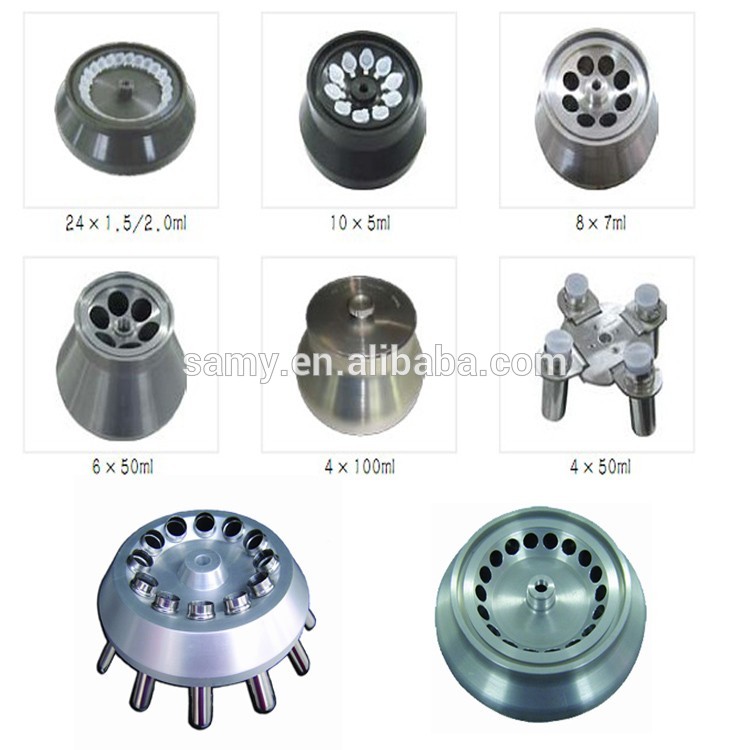

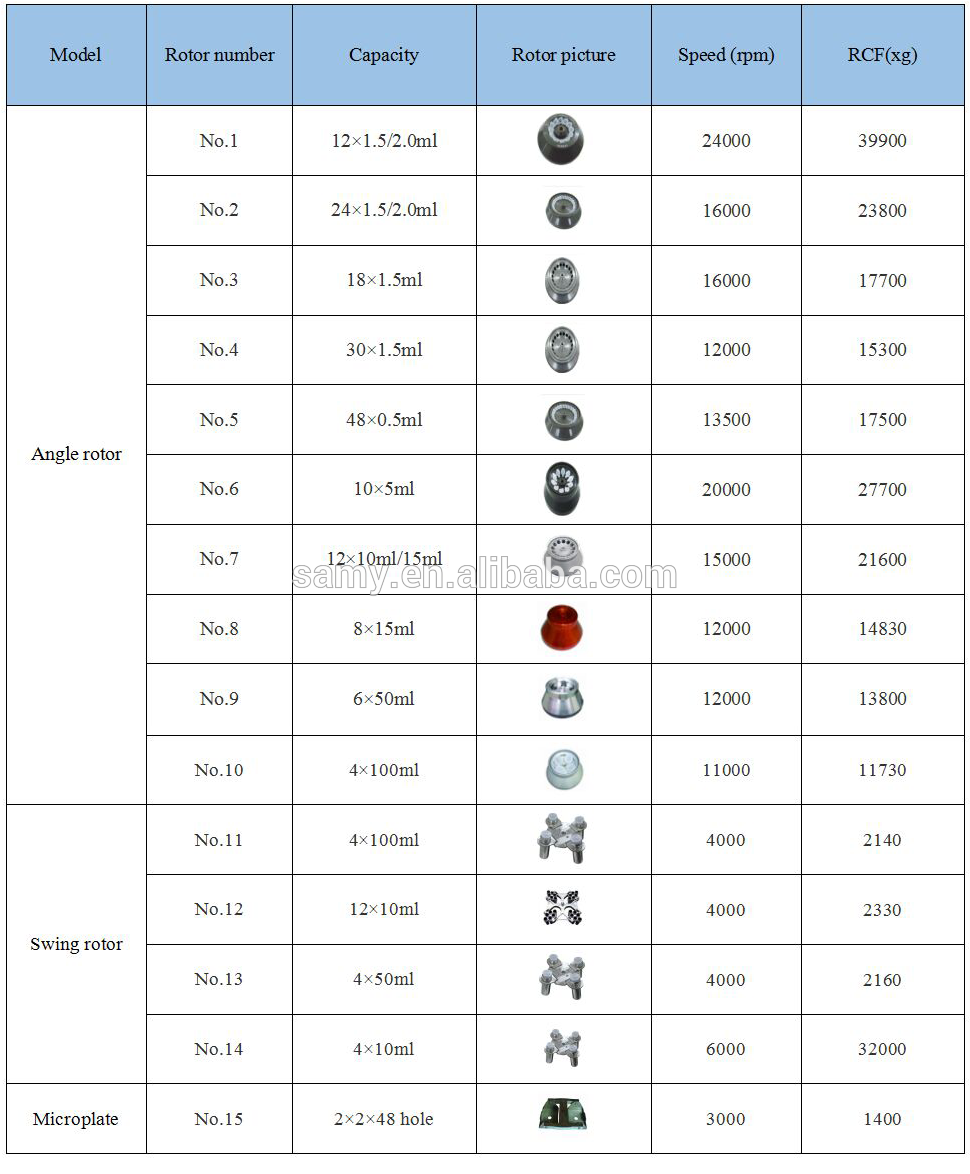

Other Rotors from our centrifuge factory :

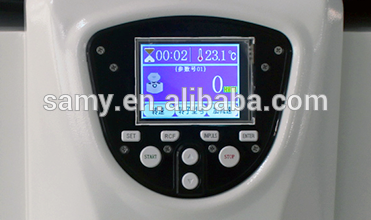

LCD Touch-able 4.7 inch display screen
Our LCD touch-able display screen is the only one factory in China has this type function.
All the specification and data shows on the display,can be use finger to select the request function directly.
Another,the above key button has the same function,it means you can not only use LCD control the requirement but also can be use key button for selection.

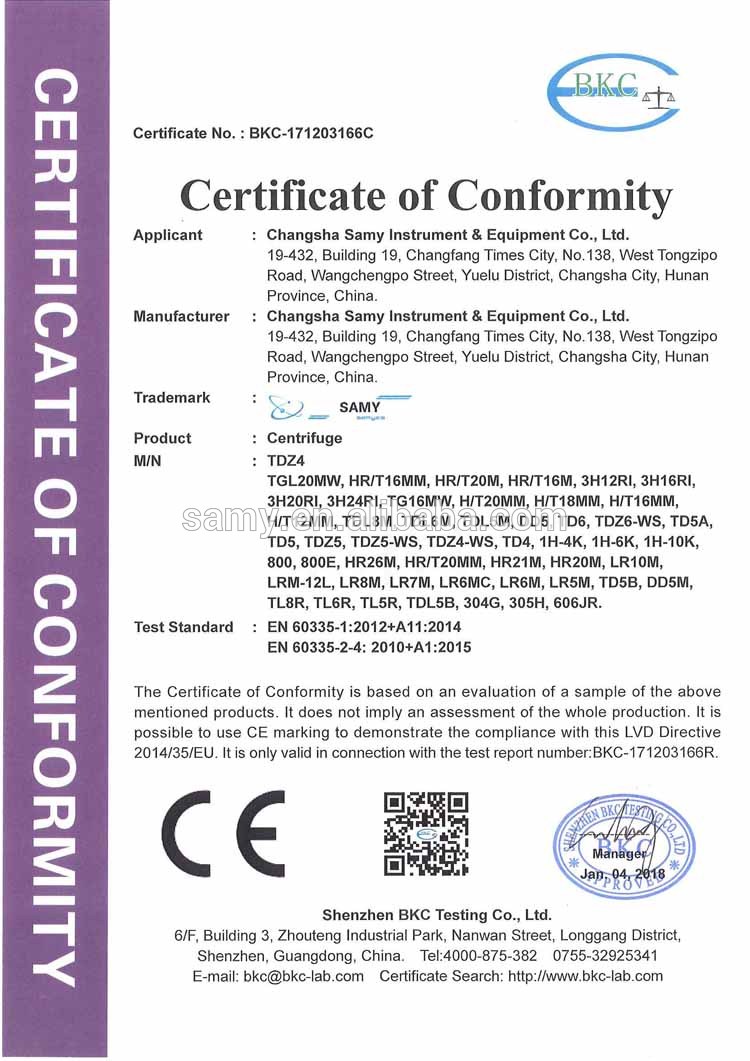

Certifications for centrifuge:
Package for each set of centrifuge:
Our centrifuge factory will check the quality and other details for each set of centrifuge, and each set of centrifuge will be packed in separate wooden cases, we will ship the centrifuge to customer's address.
Changsha Samy Instruments & Equipment Co.,Ltd is a professional high-tech Company,engaged in research &development,manufacturing and marketing of laboratory instruments,we have laboratory planetary ball mill,vacuum furnace,centrifuge and other series laboratory test products .
With the tenet"Quality is Life", our company has established an impeccable quality management system,and taken the lead of our industry in passing the ISO9001:2008 quality management system certification,CE compliant and ISO13485 medical apparatus and instruments quality management system certification.
Products of our company are widely applied in the fields of manufacturing and scientific research,such as military industry,science research institutions,institutions of higher education,central blood banks,hospitals,biological,products,pharmacy,bio-chemical,examination,agricultural,science,
environmental protection,petrifaction,etc.

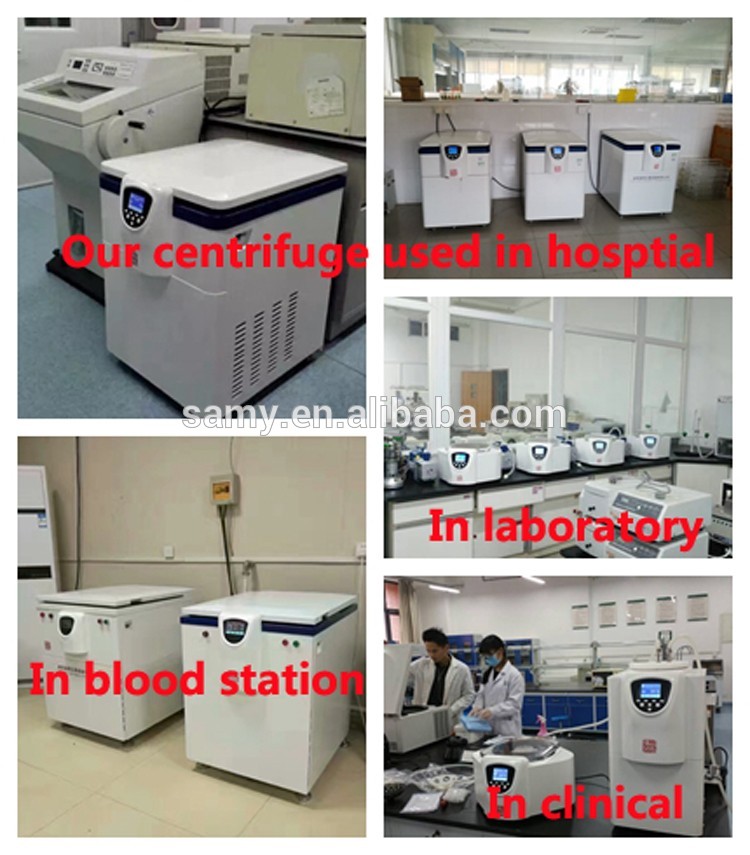

Our Fair and Customer:
In the past few years, we have participated in many centrifuge exhibitions and other trade exhibitions, we meet a lot of customers, and they have different needs, sometimes, customers come back to our factory to visit, our centrifuges have been well received by our clients, customers trust our product quality and are satisfied with the price of our products.

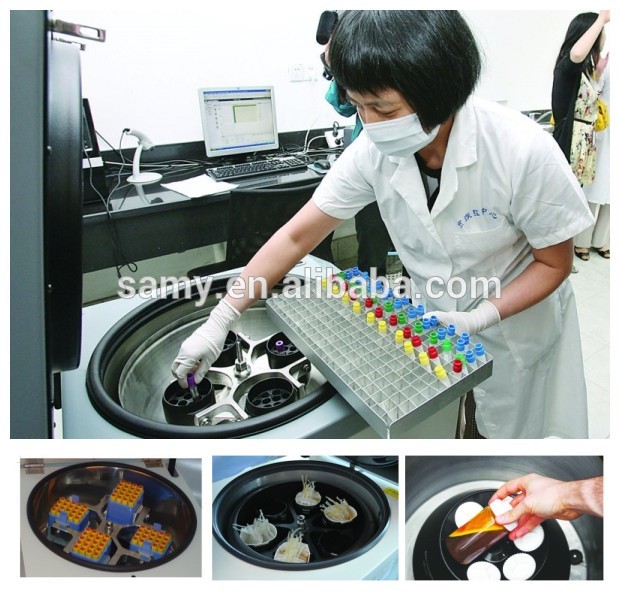

Our centrifuge experiments:
For each kind of centrifuge, our factory will arrange professional personnel to test it, sometimes we test samples according to customer requirements.

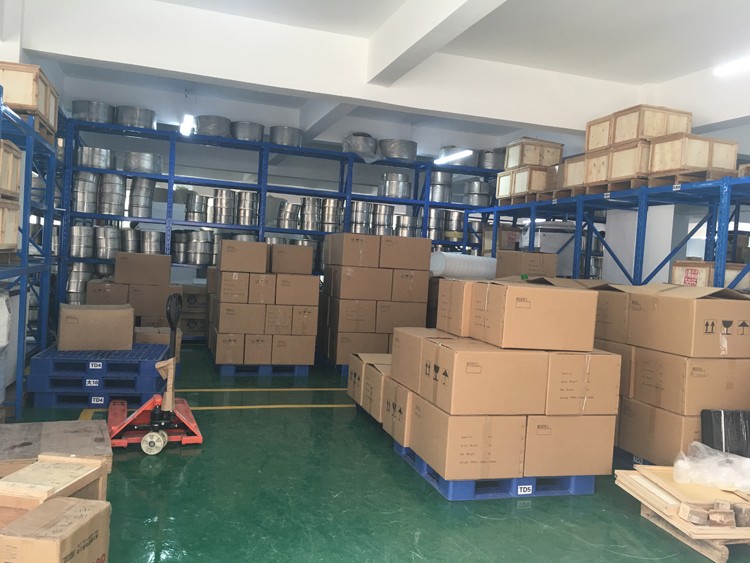

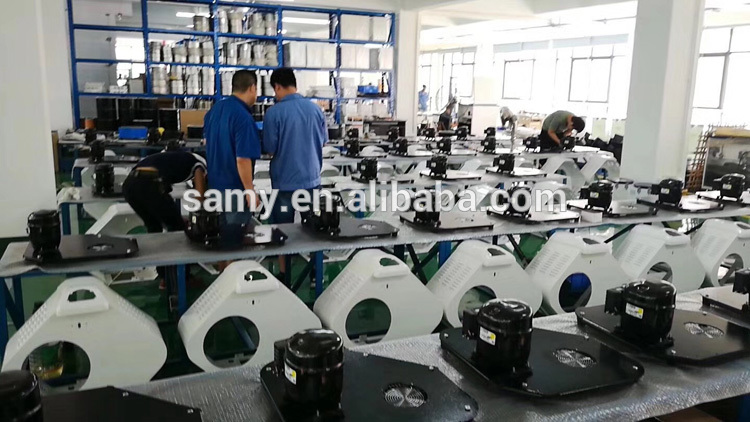

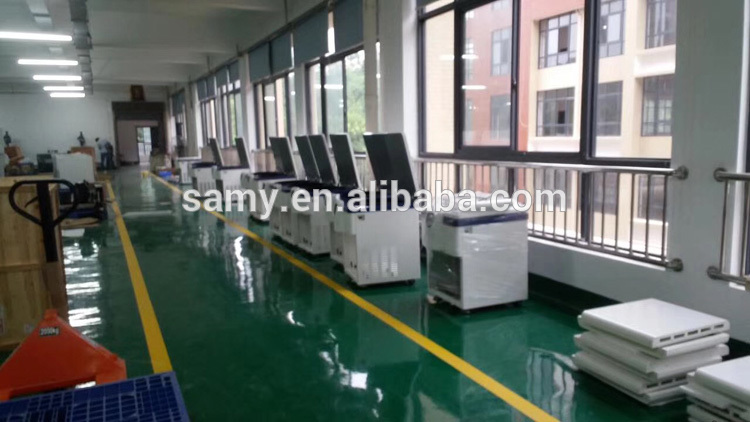

Images of our factory
FAQ
1. Why we choose Changsha Samy ?
Samy mainly engaged in biological and medical engineering equipment and laboratory equipment . And we are committed to make products more practical and high quality.
2. How about Biosafer payment term?
T/T & L/C & Western Union, or other payments.
3. How about Samy's delivery time?
Within 3-5 workingdays after receiving payment.
4. How about Samy's validity of quotation?
Usually 60 days as the shipping freight and exchange rate can be fluctuant .
5. What is the shipping port?
Any port in China.
6. How about the package?
Standard export wooden case.
7. How to inspect the goods?
Products will be checked by our QC staff first , then our project manager. Client can come and check by themselves.
