Continuous Horizontal centrifuge separator in Soda

stage Pusher Centrifuge is a kind of perforated basket centrifuge, which works both continuously and effectively.

Technical Feature

  • New
  • Centrifuge
  • chemical industry
  • Zhejiang, China (Mainland)
  • ZHEJIANG ESCHER WYSS
  • p
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$42~98

PRIMARY PARAMETERS

Condition
New
Type
Centrifuge
Product Type
chemical industry
Place of Origin
Zhejiang, China (Mainland)
Brand Name
ZHEJIANG ESCHER WYSS
Model Number
p
Voltage
customization
Power(W)
customization
Weight
customization
Dimension(L*W*H)
Refer
Certification
ISO9001
Warranty
24 Months
After-sales Service Provided
Engineers available to service machinery overseas
Color
blue&white
Machine Type
Two Stages Centrifuge
Function
Perforated Basket Soda Centrifuge
Using range
Chemical indu.
Using range2
soda

DETAIL DESCRIPTION

Product Description

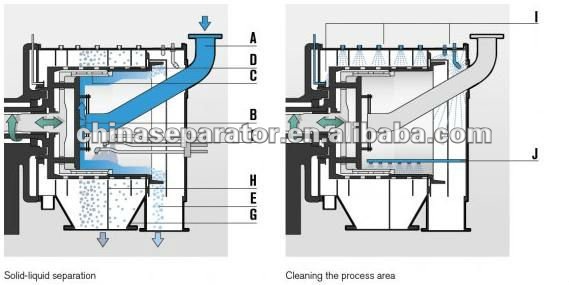

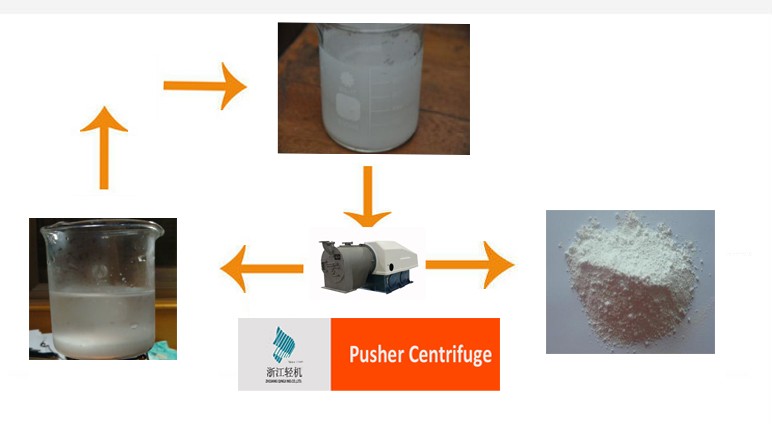

Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, which works both continuously and effectively. The mixture to be separated is fed through the feed pipe to the distributor continuously and evenly distributed to the wall of first stage basket. Most of the mother-liquor which is filtered by centrifugal force from the feed departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates The formed filter cake is pushed into the second stage basket as the first stage basket is rotating and reciprocating .The cake can stay in the centrifuge for a sufficient time and therefore the required Moisture content of the cake can be achieved under the powerful centrifugal force.


Afterwards, the cake is continuously discharged out of the basket. The effective washing can be carried out in the centrifuge in case of requirement of high purity of the solid product. The washing liquid and the mother-liquor can be discharged separately if necessary.

Based on the very successful Sulzer Escher Wyss design, our company has improved and developed these pusher centrifuges consistently and according to the latest requirements.

our pusher centrifuges P-40 to P-100 guarantee best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.

centrifuge separator ,Perforated Basket Soda Centrifuge.

Zhejiang-EscherWyss Two-stage Pusher Centrifuge is China's only product manufactured
under the licence and whole technology from Swiss Sulzer Escher Wyss
Model
P40
P500
P60
P85
P100
Basket diameter
(inner diam in last stage basket)
360
500
630
800
1000
[mm]
Number of stages
1 - 2
1 - 2
1 - 2
1 - 2
1 - 3
Max. rotation speed
3000
2000
1900
1500
1300
[r/min]
Max. number of strokes
80
80
108
108
80
[min-1]
Hydraulic oil pressure
(loading&operating)
2.5
2
8
8
8
[MPa]
El. power rotation / stroke
(*required with NaCl)
15/7.5
30/15
45/22
75/45
113/53
[kw]
Operating weight
(with oil filling, w/o  counterweight)
2600
4400

4860
8000
12000
[kg]
*Maximum throughput in NaCl
(dependent on feed conditions)
3
12
35
55
70
[t/h]

Dimensions
L
2346
3600
3200
3800
4350
[mm]
W
1090
1420
1700
2000
2300
[mm]
H1 without vibration isolation
1006
2078
1300
1550
1900
[mm]
H2 vibration isolation with concrete counterweight
1750
2200

2000
2200
2550
[mm]
H2 vibration isolation with steel counterweight
1300
1400
1550
1850
2200
[mm]
H2 vibration isolation without counterweight
(with damping elements)
1280
1350
1450
1700
1890
[mm]

Main Features

*Hydraulic pusher drive for high pusher forces

*Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc.

*Typical products
chemicals : glaubers salt,salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
centrifuge separator
fertilisers : ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
food stuff animal feeds : extraction residues, meat pulp.
benefication : rock phosphate, gypsum, ores, coal.
Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.
centrifuge separator


Certifications

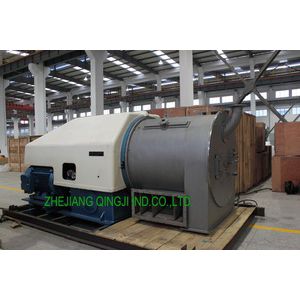

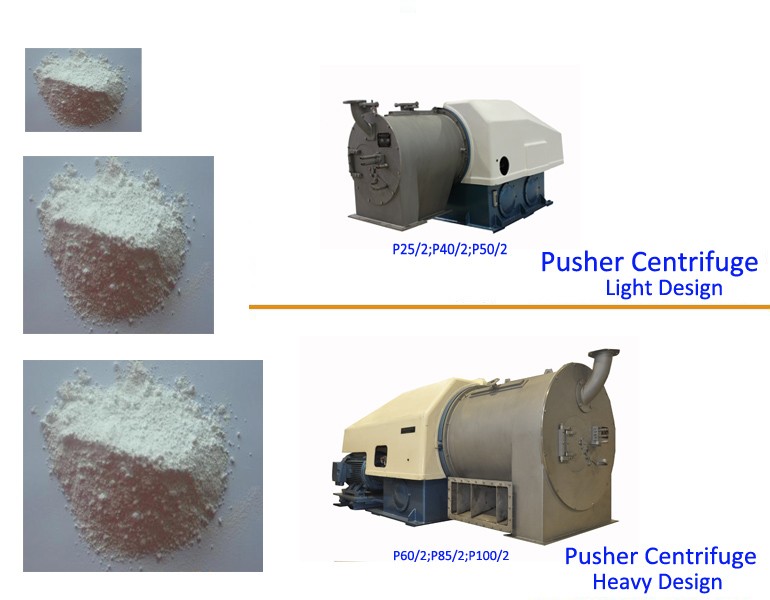

Detailed Images




Model P40

Brand: Zhejiang-EscherWyss

Original: China






Model P50

Brand: Zhejiang-EscherWyss
Original: China




Model P60

Brand: Zhejiang-EscherWyss
Original: China




Model P85

Brand: Zhejiang-EscherWyss
Original: China




Model P100

Brand: Zhejiang-EscherWyss
Original: China

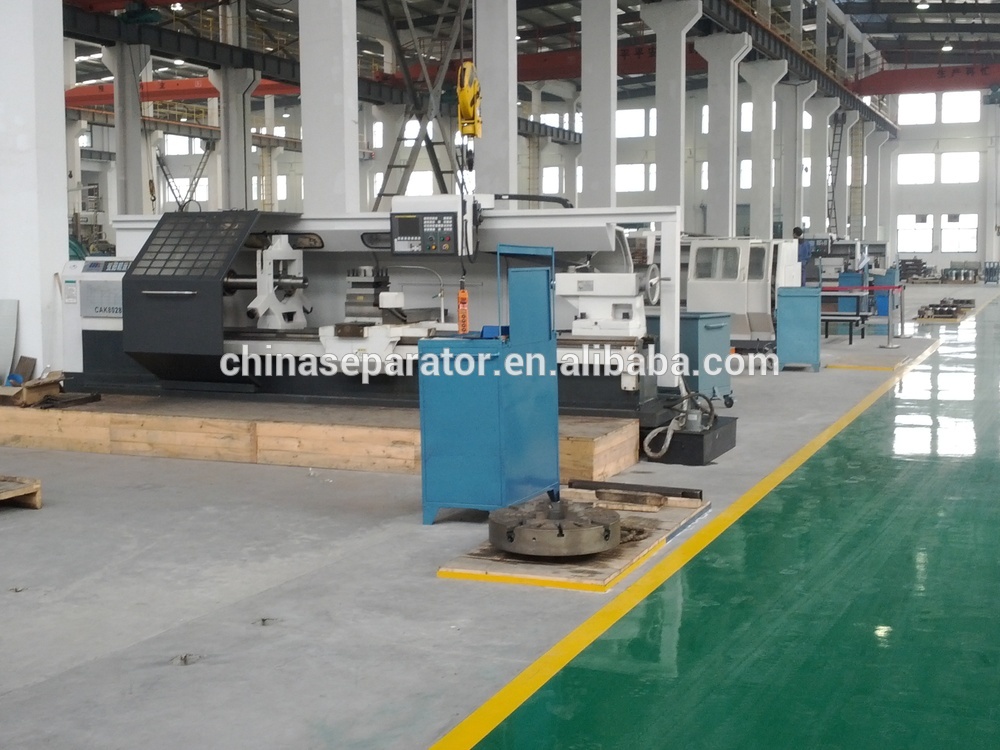

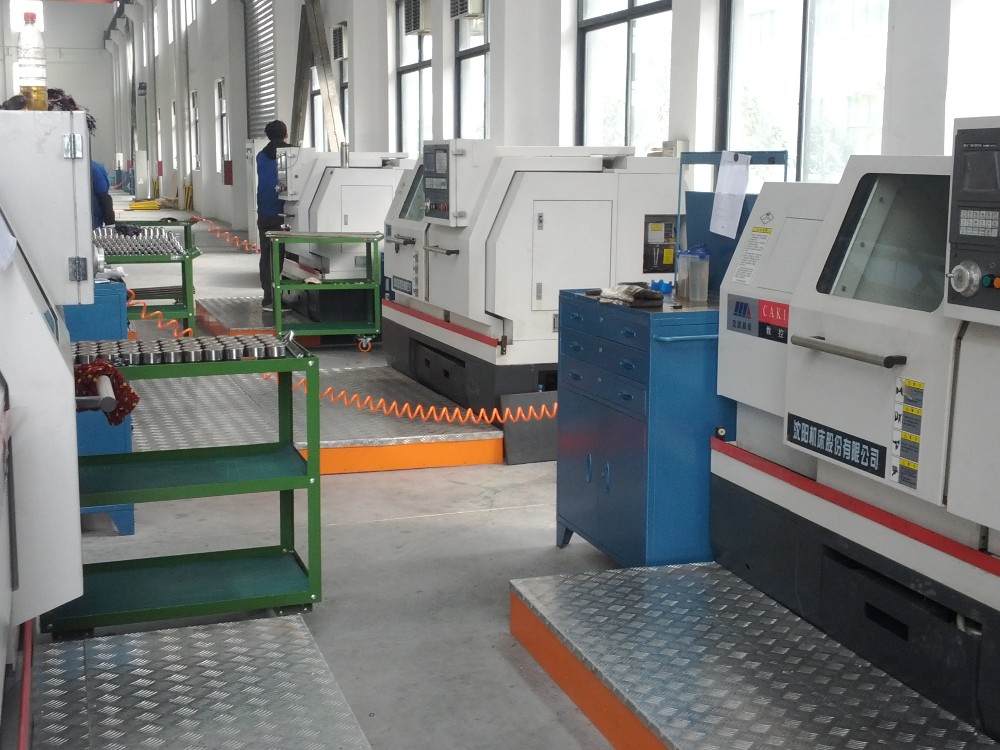

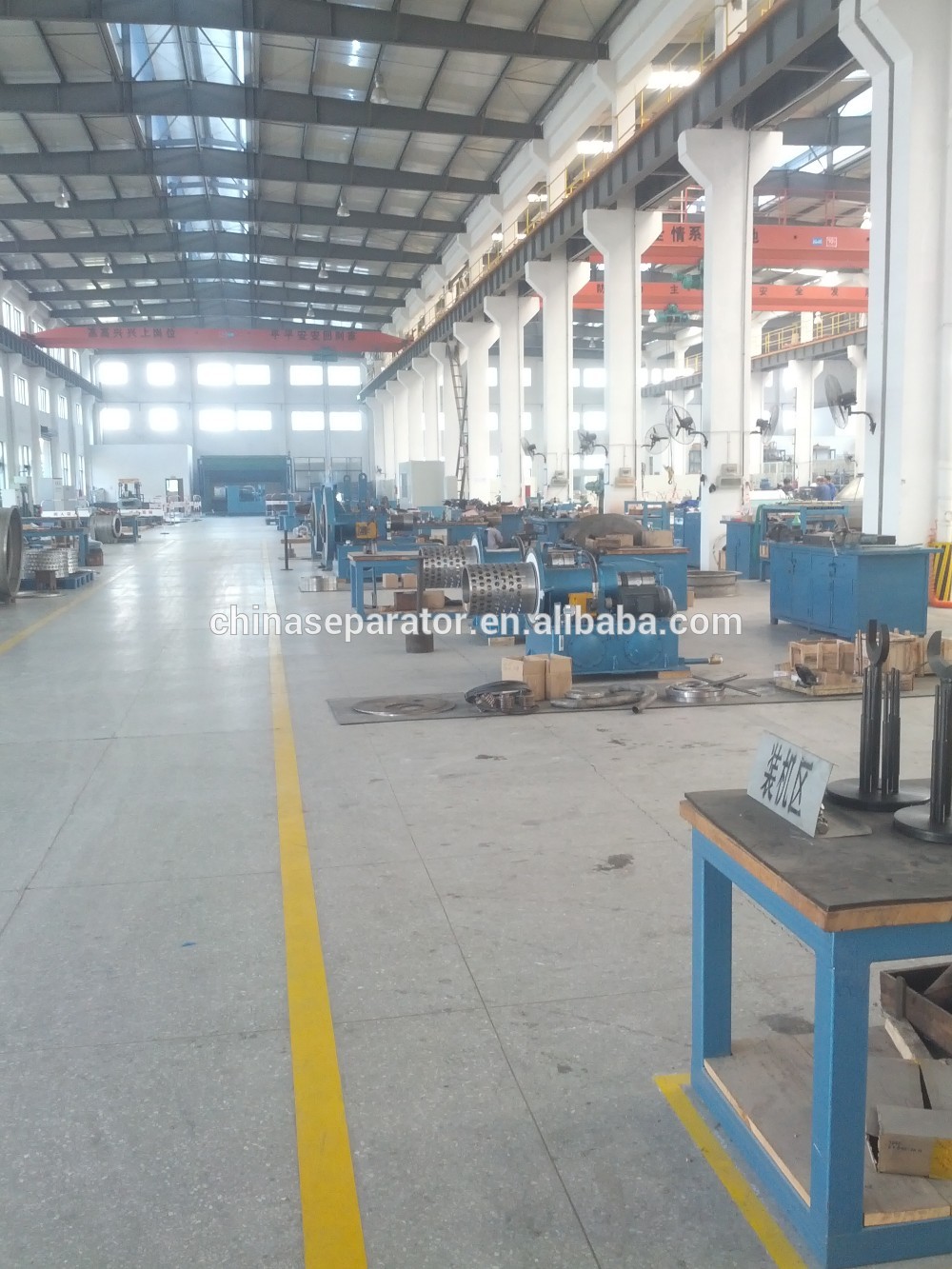

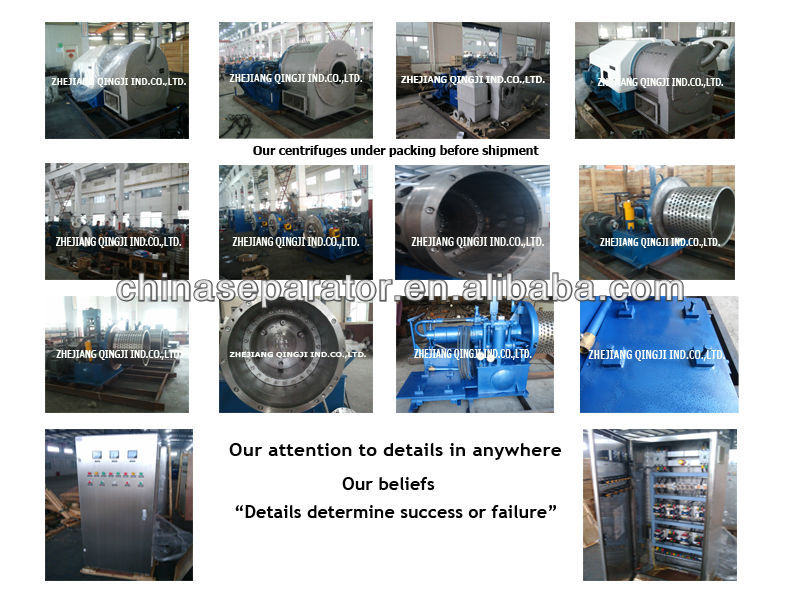

Our Production Line

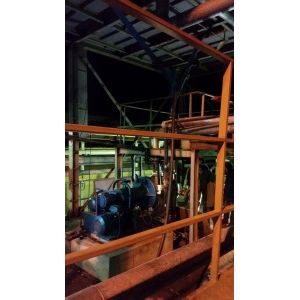

Our Experience
Related Products

Spares&our guarantee

1.INSTALLATION SUPERVISION AND COMMISSIONING:
We provide the service of installation supervision and commissioning to our clients for free

2.GUARANTEE PERIOD
20 months after commissioning, but latest 24 months after date of Bill of Loading, which ever is earlier.

3.Packing: Standard Export Package

4.SPARE PARTS SERVICE: Our inventory and careful stock management ensure continuous availability and short delivery times.
