FAW JINMA farm machinery filter diesel engine air filters for tractor parts dust air filtration solution system
Basic parameter
| product name | 1109010 Machinery inductrial air filter shell |
| air flow | 900 m³/h |
| air resistance | 3.0kpa |
| air intake size | 110mm |
| air outtake size | 100mm |
Product details

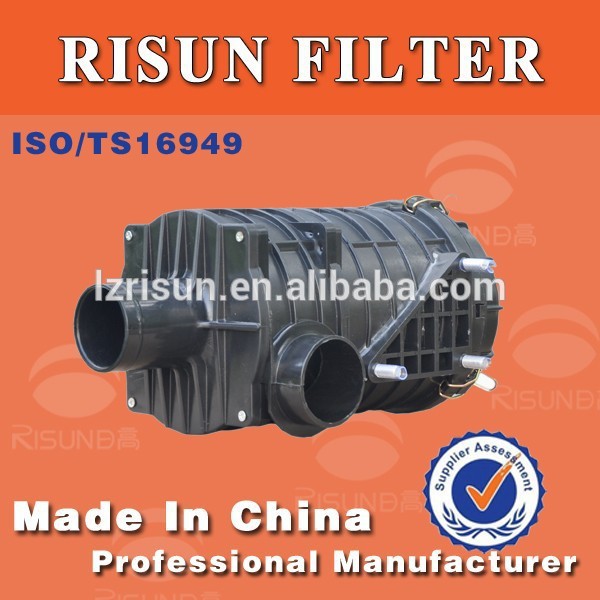

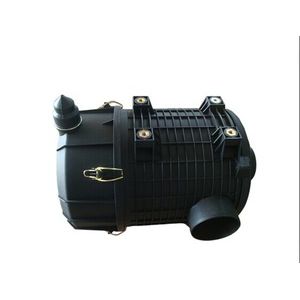

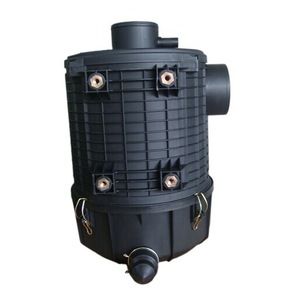

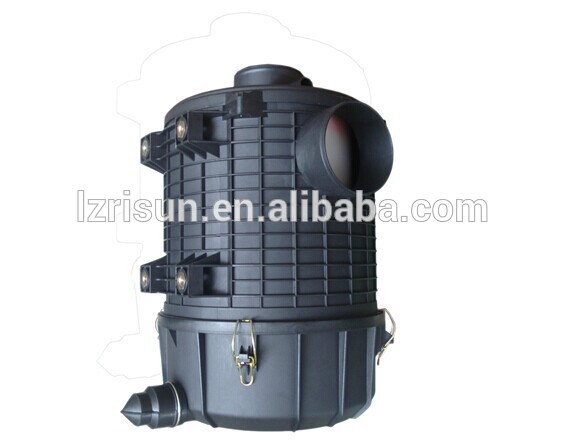

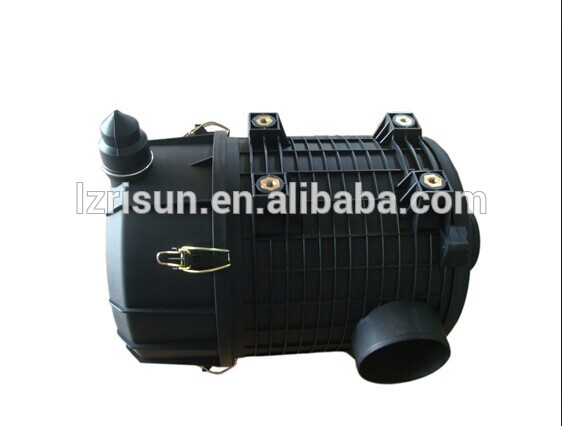

Image of 1109010 Machinery inductrial air filter shell

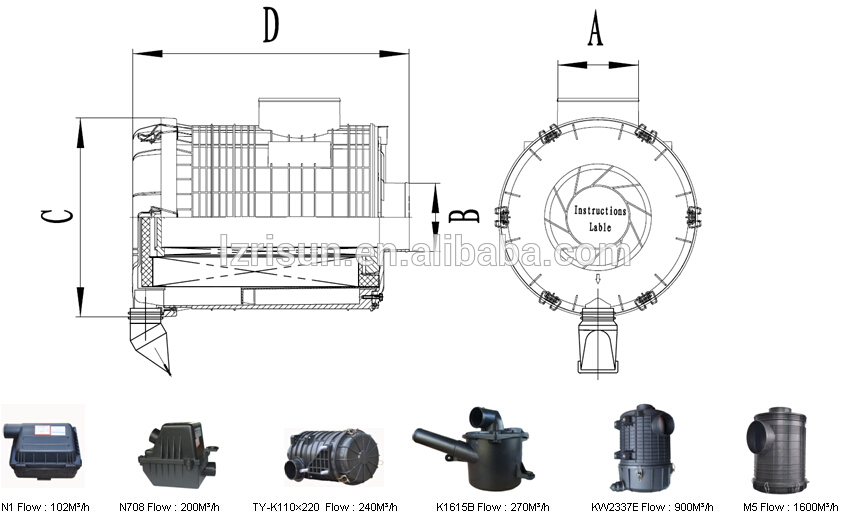

| Risun model | OEM No. | Flow M³/h | A(mm) | B(mm) | C(mm) | D(mm) | Application |
| N1 | P1401-10001-4 | 102 | φ43 | φ49 | 252×252 | 164 | Wuling Zhiguang(SGMW) |
| 376QE1 | P1401-10078 | 102 | φ40 | φ48 | 262X189 | 157 | Wuling Yangguang(SGMW) |
| N708 | 24527407 | 200 | φ51 | φ50 | 267×253 | 200 | Wuling Xingwang Lorry (SGMW) |
| K110×220 | 40K2046 | 240 | φ60 | φ58 | φ 155 | 335 | Liugong Forklift/Loader |
| K128×303 | 40C1332 | 240 | φ64 | φ64 | Φ171 | 412 | Liugong |
| K1615B1 | 24513220 | 270 | φ50 | φ60 | φ 194 | 240 | Wuling Dafa (SGMW) |
| M3-900 | 1109100-900 | 900 | φ 130 | φ 110 | φ 320 | 445 | Dongfeng M3 |
| KW2337E | 1109010-4150 | 900 | 110 | φ 100 | φ 317 | 481 | FAW 3115K2A90G |
| 1109010-L4M6DF | 1109010-L4M6DF-X | 1260 | φ 150 | φ 130 | φ 340 | 403 | FAW 3111P7A90G |
| M3-1300 | 1109100-1300 | 1300 | φ 150 | φ 110 | φ 356 | 465 | Dongfeng M3 |
| H7 | 1109100-1500 | 1500 | φ 210 | φ 178 | φ 363 | 569 | Dongfeng H7 |
| M5 | 1109100-1900 | 1600 | φ 210 | φ 170 | φ 429 | 567 | Dongfeng M5 |
| M7A | / | 1900 | φ 210 | φ 178 | φ 429 | 567 | Dongfeng |
Air filter assy customized produce is available!!
We are first class vendor for domestic and overseas vehicle companies for 40+ years.

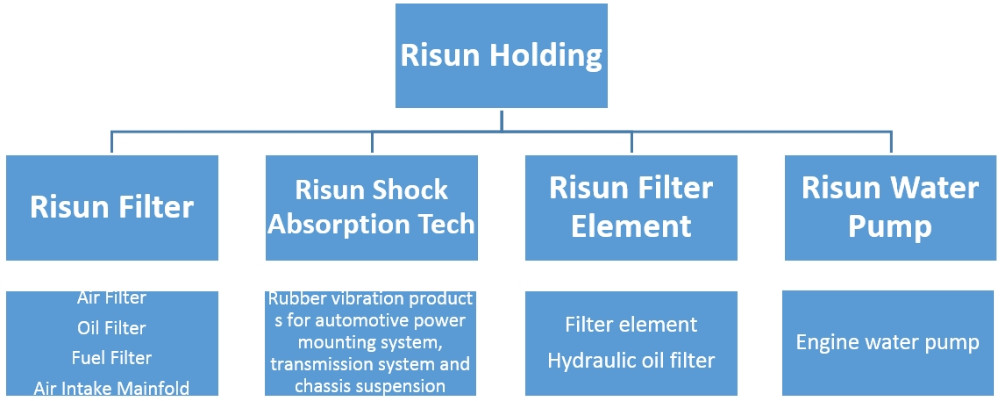

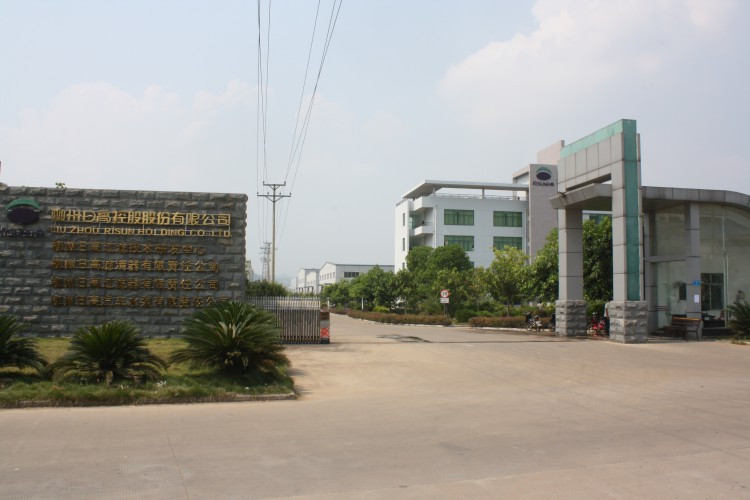

Liuzhou Risun Filter Co., Ltd which originally called Liuzhou Filters Factory is an affiliated company of Liuzhou Risun Holdings Co., Ltd. The company has had experiences in manufacturing machineries and the internal combustion engines for over 40 years. It’s one of the key filter enterprises of China. Through the implementation of technologies such as UG CAD, CAPP and ERP we have further enhanced the company’s management level product development ability testing capability and productivity. In 2003 the company passed ISO/TS 16949:2002 quality system certification.
The company has specialized production lines and perfect testing facilities made in USA Italy and China. Our major products widely apply in automobile and construction machinery industries. Our products are widely used by market as well during automobile repair and maintenance.
1. time – honored and steady partner with international enterprise.
2. variety auto product for selection.
3. experienced R&D team.
4. multiple authority authentications.
5. participation of domestic industry standard-setters.
6. OEM orientation since 1970s.
7. Auto parts one-station service.
1. Lead time:
Sample 3-5 days, mass order around 45 days.
Port: Guangzhou, Shenzhen
2. Payment terms:
Sample: 100% payment in advanced.
Mass order: 30% deposit, balance70% before shipping.
3. OEM support?
We delicate in OEM field for 40+ years.
4. Any overseas exclusive agent?
Russia, Middle East, Africa, America.
5. Contact:
Add: No.1 Panlong road, Luorong town, Liuzhou(545616), Guangxi, China
Tel: 86-772-3592296
Fax: 86-772-6515821
Skype:lz.risun
Monday- Friday: GMT/UTC 00:00-09:00 PST 16:30-1:00
