Introduction
Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.
Specifications and Parameters
| Filter media | polypropylene filter membrane |
| Length | 10",20",30",40" |
| Diameter | 69mm |
| micron rating (µm) | 0.10,2,0.45,0.65,1,2,3,5,10,20,30,60 |
| end cap | doe,222/fin,222/flat,226/fin,226/flat |
| seal material | silicone,EPDM,NBR,viton,teflon |
| sealed type | sweating soldering |
| effective filtration area | 0.4~0.7m2 /10" |
| max. working temperature | 80°C, 0.28Mpa |
| Max positive pressure difference | Δp0.42Mpa at 25°C |
| Max negative pressure difference | Δp0.28Mpa at 25°C |
| sterilizing temperature | 121 °C, 30min |
we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~

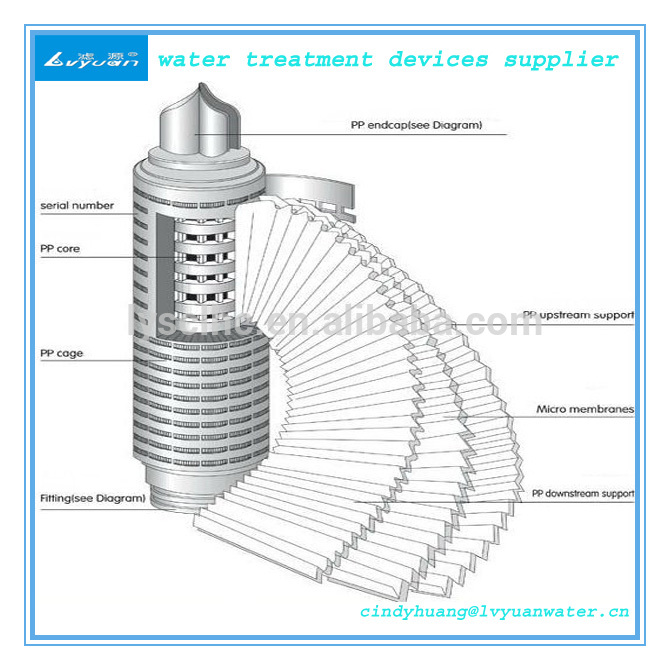

Structure
Application
Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: compressed air,N2,CO2 filtration.
Other industry: Photoresist, magnetic media filtration.

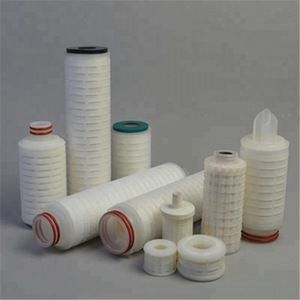

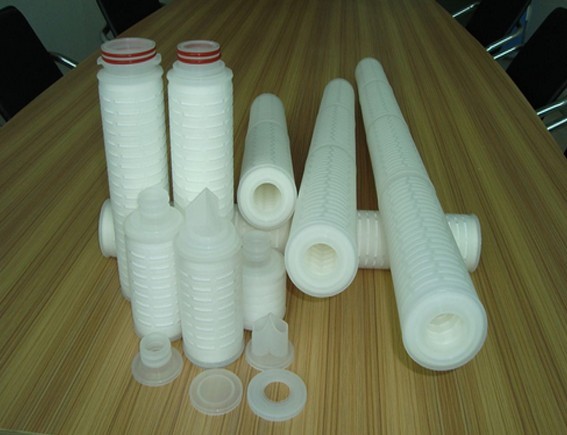

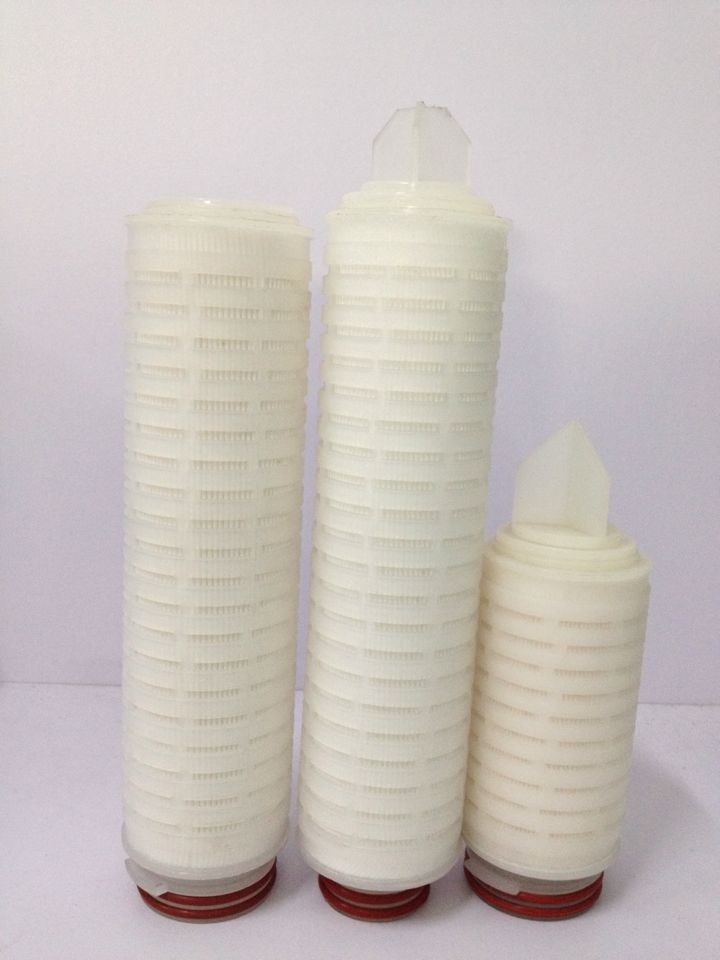

Pictures for polypropylene filter
Package
10 inch: 50PCS/CTN 400*400*685mm
20 inch: 25PCS/CTN 400*400*685mm
30 inch: 25PCS/CTN 835*435*425mm
40 inch: 25PCS/CTN 1100*395*400mm

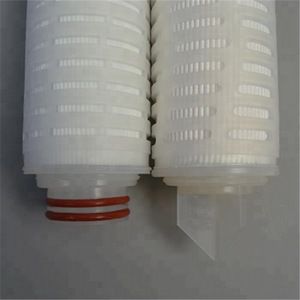

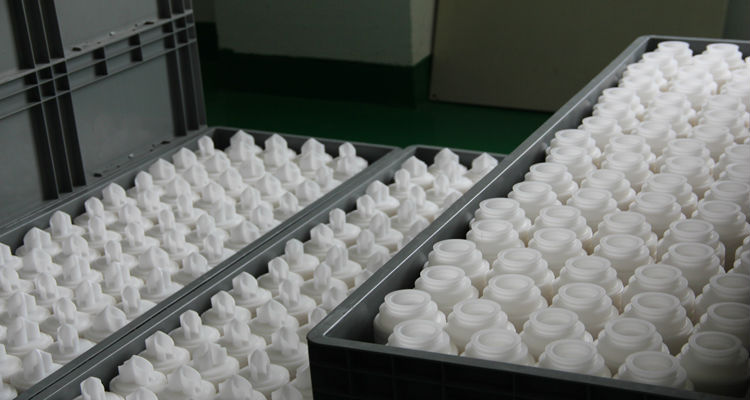

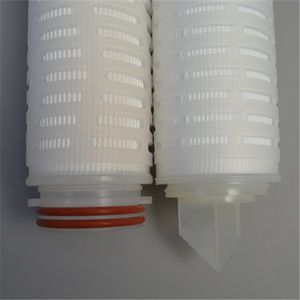

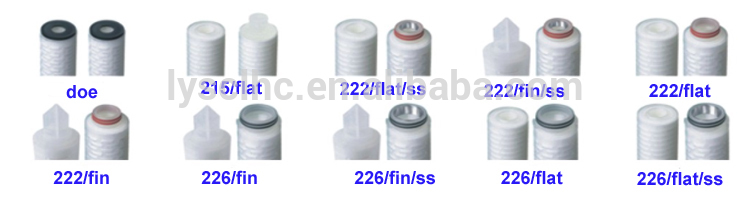

End cap / Interface

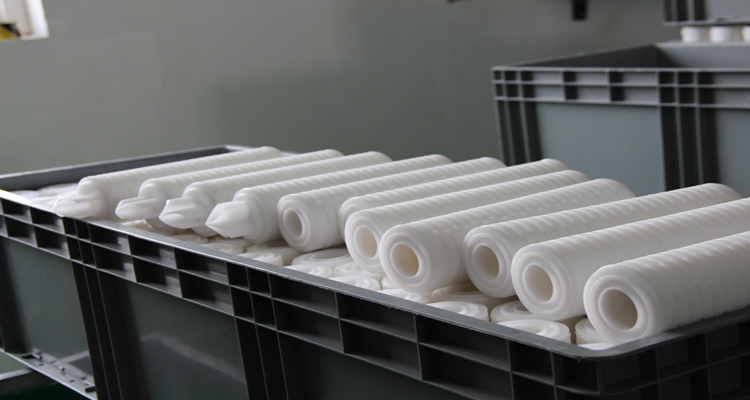

Our factory
Guangzhou Lvyuan is a comprehensive enterprise, which is founded in year 2008 and located in Guangzhou city. we are specialized in manufacturing household water purifier and industrial water treatment machine as well as supply its accessories.
Household water purifiers include under sink RO water purifier, wall mounted RO water purifier, commercial RO water purifier and active mineral direct drinking water purifier, stainless steel central water purifier and water purifier for pre filltration.etc. The accessories include all kinds of filter cartridge, such as PP, UDF, CTO, T33, string wound filter,pleated filter,UF membrane,RO membrane ect.
Water treatment machine include RO water treatment machine, EDI ultrapure water treatment machine, ultrafiltration system,softening system,water reuse system, MBR biological processor, waste treatment system, anion and cation exchange system and bottled & barreled water system, etc. The accessories include all kinds of industrial filter cartridge, RO membrane, stainless steel filter housing,etc.
All our products are manufactured under strict process and got final inspection before delivery. In addition, our household RO water purifier has got CE certification. Under our good quality and best after-sales service, we have enjoyed high reputation and get satisfactions with our clients in our industry. We are looking forwards to establishing business relationship with you in future.
If any of our products draw your interesting, pls contact Ms.Cindy.
