made in china water softener system prices/ion exchange resin water softener system prices

PRIMARY PARAMETERS

Place of Origin

Beijing, China (Mainland)

Brand Name

Amanda water softener system

Model Number

water softener system capacity 1~35m3/h

filter named

water softener systems

resin

food and industrial grade

resin tanks

inner shell

Valve

Automatic Control Softening Valve with multiport Valve

outlet softed water hardness

u22640.03mmol/L

DETAIL DESCRIPTION

Product Description

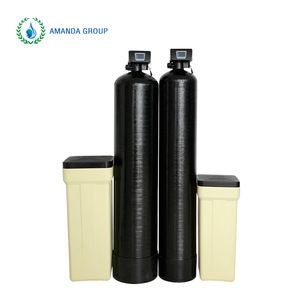

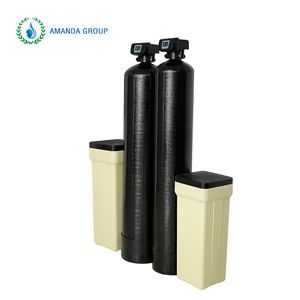

Amanda Automatic Water Softeners Characters

1. Sealing parts is made of high hardness and high

flatness ceramic grinding, low failure rate, long service life

2. Micro-omputerized controller with memory function,

when power on again after outage, the original settings

are intact

3. The time of regeneration cycle, backwash, suck salt,

backwater, washing and other steps can be pre-set

independently, the regeneration process save time and

salt .

4. Regeneration cycle is setted according to water usage,

softed water is more assured, during regeneration, hard

water no pass

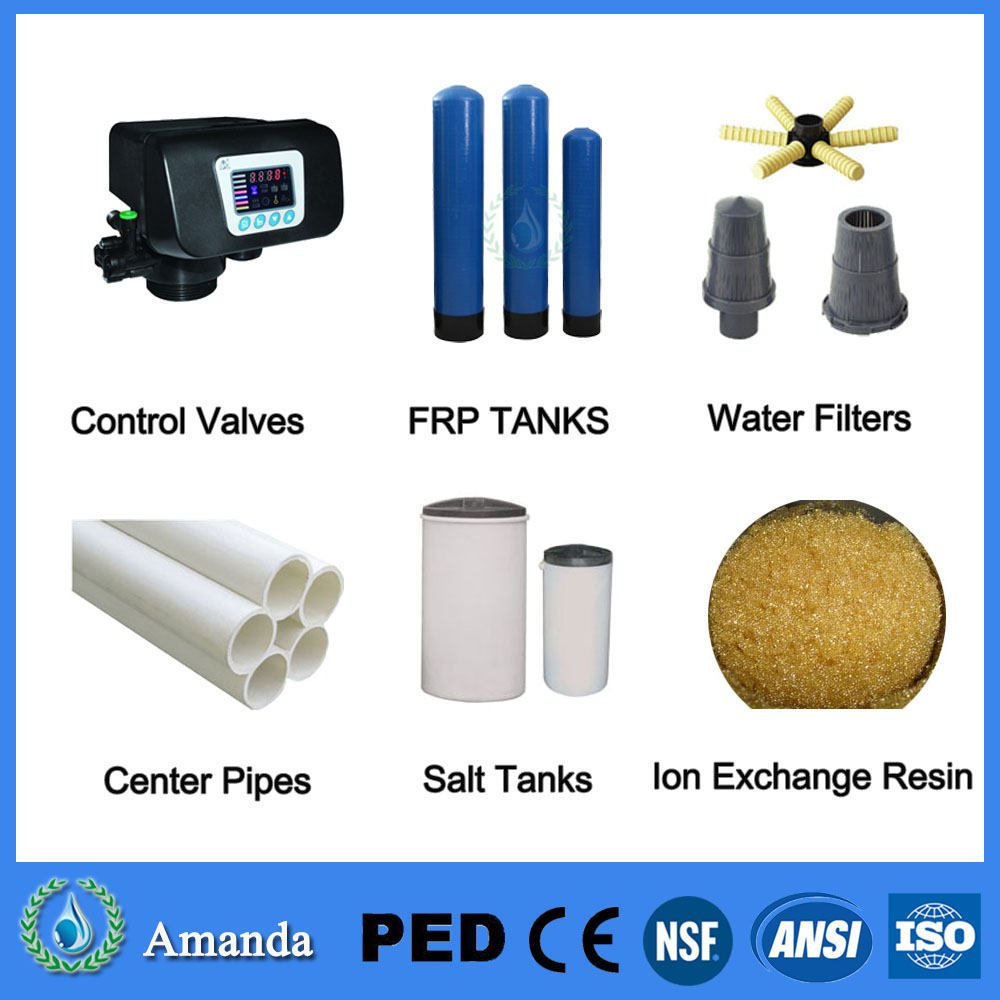

Amanda water softener systems choose superior quality elements:

Technical Specification :

1. Working Pressure: 0.1~0.6 MPa

2. TDS: ≤700mg/L

3. Production Capacity: 1~35m3/h

4. Raw water temperature: 1~40 degree

5. Operating temperature: 1~50 degree

6. Inlet water hardness: ≤12mmol/L

7. Outlet water hardness: ≤0.03mmol/L

8. regenerating resin should use NaCl, couldn't use iodised salt, calcium salt

Water Softeners Technical parameters
	Item No	Production capacity (m3/h)	Resin tank OD×H (mm)	Resin content (L)	Salt tank (L)
TMFB200	1	200×1100	25	60
TMFB250	1	250×1380	50	60
TMFB300A	1~2	300×1400	75	100
TMFB300B	1~2	300×1650	100	100
TMFB350	1~2	350×1650	125	200
TMFB400	2~3	400×1650	150	200
TMFB400H	2~3	400×1800	175	200
TMFB500	3~4	500×1750	250	300
TMFB500H	5~6	500×1950	300	300
TMFB600A	6~8	600×1900	350	300
TMFB600B	6~8	600×1950	375	300
TMFB600C	6~8	600×2200	450	500

	Item No	Production capacity (m3/h)	Resin tank OD×H (mm)	Resin content (L)	Salt tank (L)
TMFB750A	8~10	750×1900	525	500
TMFB750B	8~10	750×1950	550	500
TMFB750C	8~10	750×2100	625	800
TMFB750D	8~10	750×2200	650	800
TMFB900A	9~12	900×2100	850	1000
TMFB900B	9~12	900×2200	900	1000
TMFB900C	14~16	900×2400	1000	1000
TMFB1000A	18~20	1000×2200	1100	1000
TMFB1000B	18~20	1000×2400	1200	1500
TMFB1200	28~35	1200×2600	1600	2000
TMFB1500	40~50	1500×2600	2500	3000

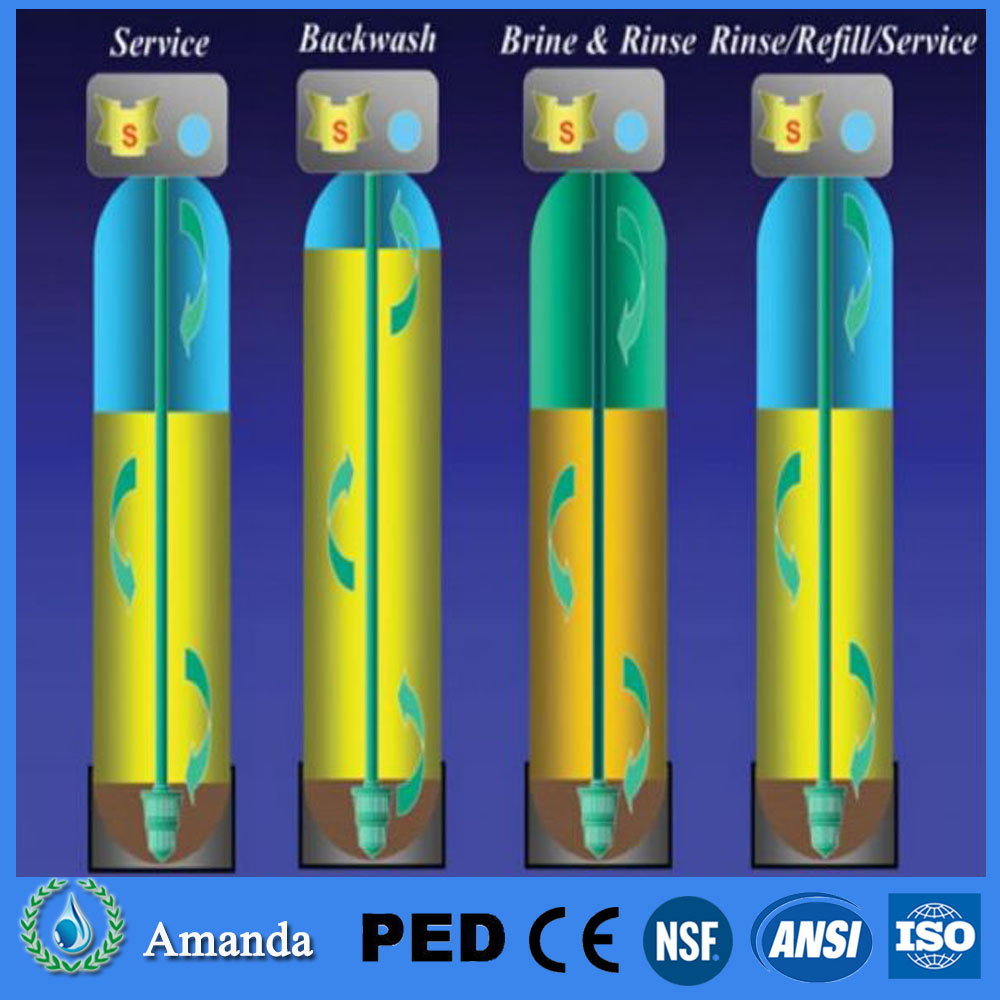

Softeners Workflow

Amanda Softeners five processes :

Work to soft water ----- Backwash ------ Brine / Regeneration ----- Slow Rinse / replacement ----- quick rinse

Backwash: After working device , the upper block in the resin to bring a lot of raw water dirt, removal of these

contaminants , the ion exchange resin to be fully exposed out of the effect of regeneration can be guaranteed.

Backwash process is the wash water from the bottom of the resin into , out from the top ,

so you can put the top block down the dirt away. This process usually takes about 5-15 minutes .

Regeneration : Coming into the resin tank brine process is the use of traditional equipment salt brine pump,

automatic equipment is built by private jet to saline inhalation ( as long as there is a certain pressure to the water )

Slow wash : After the salt water through the resin , with the raw water at the same flow rate of the resin in the salt

slowly rinse all the washing process is called slow , as this washing process there are a large number of

functional groups on the calcium and magnesium ions are sodium ion exchange , based on actual experience,

takes about 30 minutes.

Fast Flush : In order to thoroughly rinse the salt residue , to be used close to the actual work flow, with

the raw water to wash the resin , the process of the final effluent standard soft water .

Generally , the fast rinse process is 5-15 minutes.

Softeners Uses

In the following water treatment industries and fields, we have accumulated thousands of success cases:

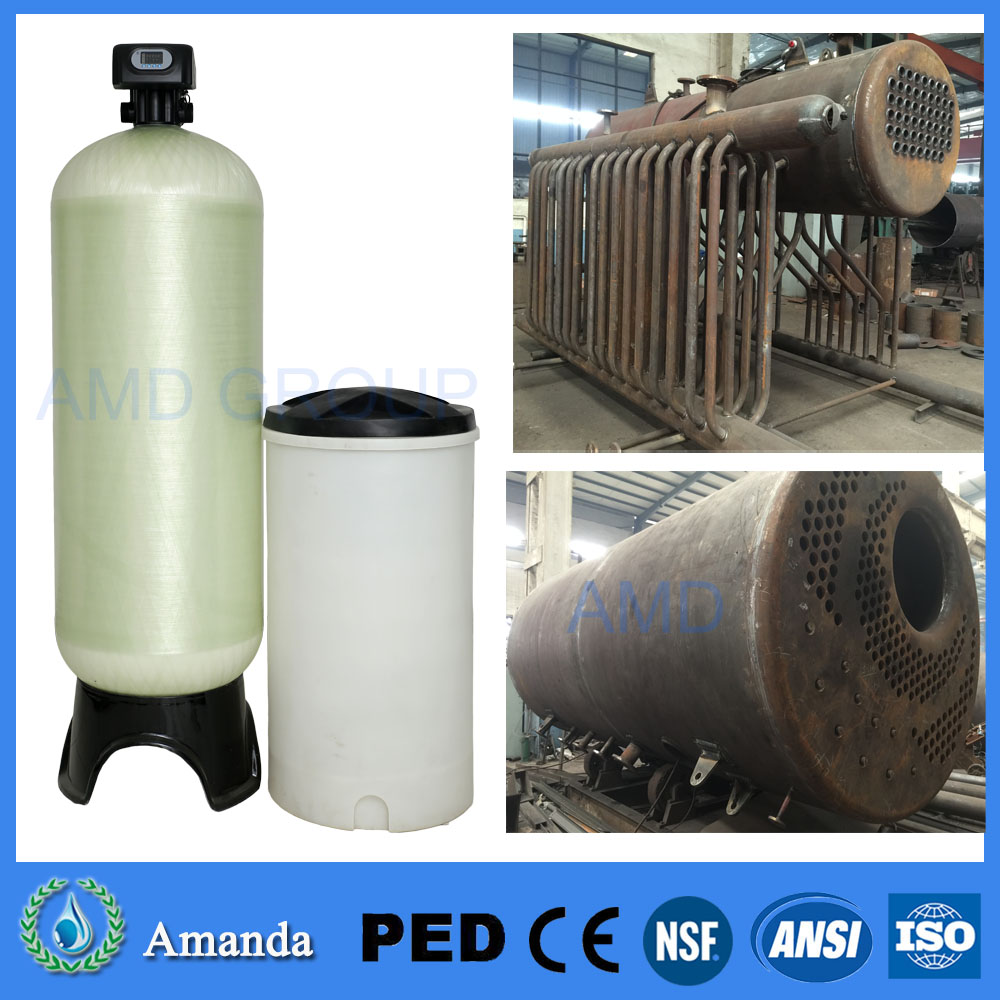

Boiler feed water system:

From 2003year, we are supplying water softener systems for boiler manufacturers, to provide scientific and reasonable programs,

termly technological training for their sales and servicers, for high hardness water used in the steam boiler, we have unique solution programs

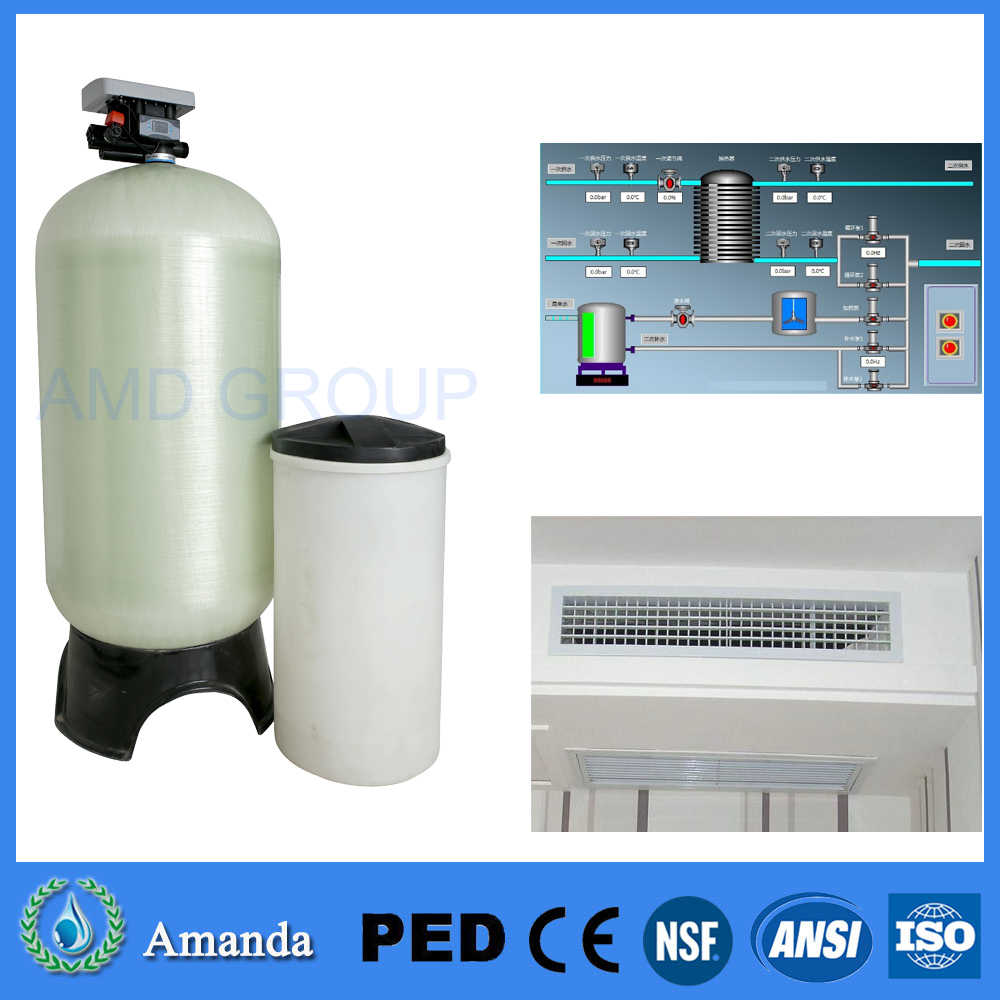

The specific drinking water equipment of central air-conditioner and heat exchange station :

Amanda engineers department combine the actual situation of the system: raw water hardness, daily filling water, maximum peak water consumption, etc, for the customers to choose the most effective water softener systems

The ion exchange resin water softener system of hotels, caterings and washing plant & washing machine:

Widely used in the sanitary hot water, steam box, dishwashers, etc,it's our priority to ensure soft water safety, health, softened water equipments are made of food-grade material, the outlet water is in line with GB5749-2006 "drinking water health standards "

Household water softener system:
Compared with GB5749-2006 "drinking water health standards" , the residential ion exchange resin water softener system set more stringent internal standards,standard Dow SR1L food grade resin, central control valve through the United States NSF / EU CE, ROHS certification, regeneration resin with constantly supply water, countercurrent regeneration technology, save more salt and water

Package and Shipping

Amanda ion exchange resin water softener system package with waterproof plastic bag inside , then with carton box in second package, outside packed by wooden case, importantly , the wooden case could customized marked client's information and logos .
