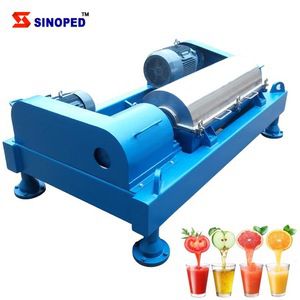

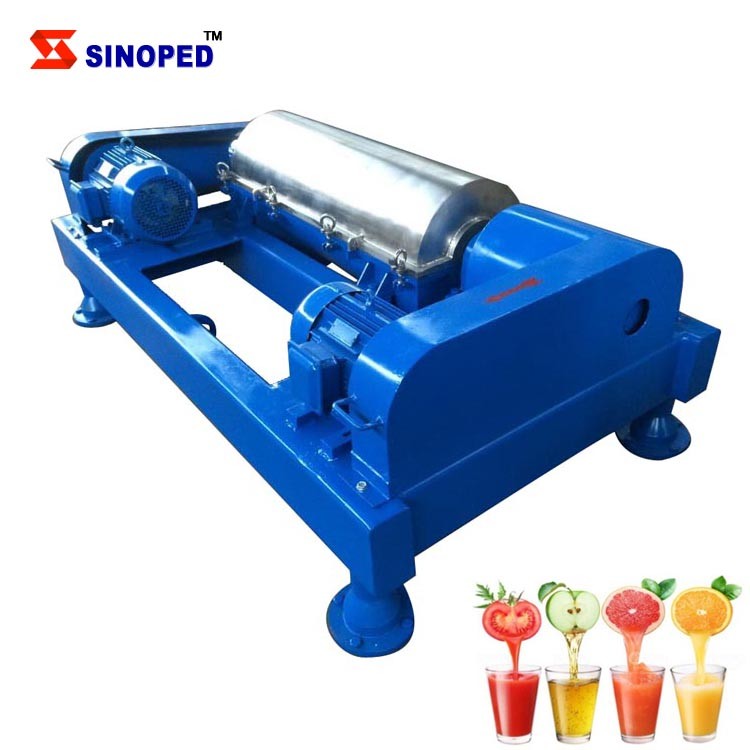

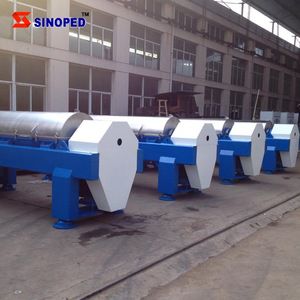

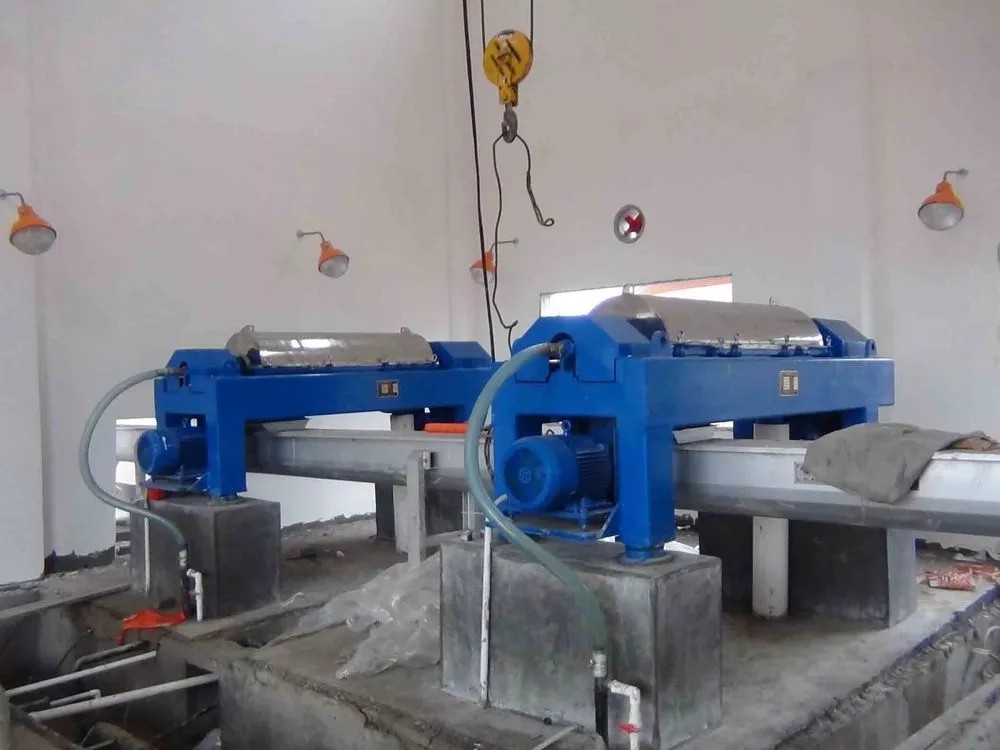

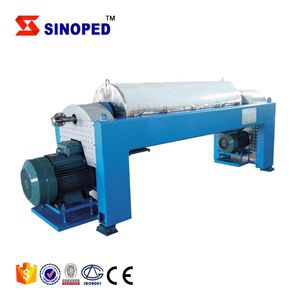

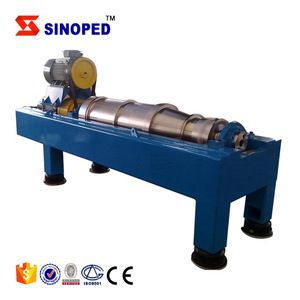

Decanter centrifuge
1. Centrifuge speed: normally, the horizontal screw centrifuge should be over 3000 RPM. The higher the speed, the higher the centrifuge separation factor, the better the separation effect.
2. The material of the centrifuge: different material its wear resistance, corrosion resistance and other physical and chemical index, horizontal screw centrifuge abroad generally minimum material is 316 l, or duplex stainless steel, abrasion element must choose ceramic composite materials.
3. The centrifuge differential control: different differential control precision is different, and the difference of life and maintenance cost, the higher the accuracy of differential, adaptability to materials, the better, therefore, appropriate chooses differential high precision equipment.
4. Length-diameter ratio: the larger the length-diameter ratio of the horizontal screw centrifuge, the greater its processing capacity and the smaller its moisture content.
5. Control system: whether it is automatic programming control or not, at present, domestic and foreign equipment manufacturers have basically realized the complete automation control of the equipment.
6. Installation power: it affects the control of energy consumption, generally high energy consumption ratio of domestic equipment and low energy consumption ratio of foreign countries.
7. Processing and manufacturing process: the horizontal screw centrifuge is a separation device with high precision processing requirements. The products produced by enterprises without precision processing capacity have high maintenance rate and limited processing capacity.
Working Principle:
Relying on the density difference between solid and liquid, and by the centrifugal force, Horizontal spiral centrifuge accelerates the sedimentation rate of the solid particles to achieve solid-liquid separation. The machine consists of drum, spiral pusher, differential mechanism & power, and frame etc.. Drum and spiral pusher rotates at the same direction by high speed, drum and spiral pusher’s speed difference is about 2-30 rpm under the effect of differential mechanism. The raw liquid goes into the drum which is rotating by high speed from the inlet, by the centrifugal force, the suspension whose density is bigger will rapidly accumulated on the drum wall and form the sediment layer, and be pushed out of the drum by the discharging drum. Clarified liquid is constantly discharged out of drum’s big end, so achieve the suspension’s liquid-solid separation. If liquid is emulsion containing light/ heavy phases, by the different gravity, the light and heavy liquid circle can be formed, and divided by the drum’s big end plate. Through the centripetal pump, light liquid will flow out from the light liquid outlet, while the heavy liquid will be discharged from heavy liquid outlet, so the solid-liquid-liquid separation is realized.
| Technical parameters | ||||||
| Model | LW253 | LW320 | LW350 | LW450 | LW520 | |
| Bowl | Rotating speed r/min | 4750 | 4000 | 4000 | 3000 | 2800 |
| Diameter and length/mm | 253*565 | 320*1280 | 350*1487 | 450*1800 | 520*1664 | |
| Max. Separating factor | 3200 | 2870 | 3130 | 2264 | 2280 | |
| Max. differential speed | 5-30Stepless | 5-30Stepless | 5-30Stepless | 5-30Stepless | 10-20 | |
| Secondary Motor Power/Kw | 5.5/1.5 | 18.5/7.5 | 22/7.5 | 30/7.5 | 45 | |
| Max. Water Flow Amount/m³/h | 1 | 10 | 15 | 30 | 45 | |
| Dimension(L×W×H)/mm | 1638×518× 753 | 2940×400× 1000 | 3140×900× 1075 | 4130×1015×1360 | 3580×1080×1535 | |
| Weight /Kg | 900 | 2200 | 2480 | 3200 | 4000 |
There will no further notification if the appearance or parameters of our products are modified. Thanks.
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.

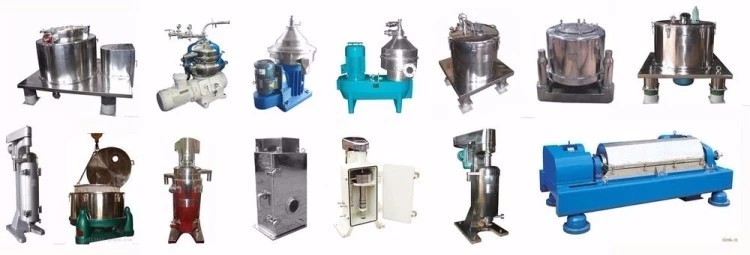

We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
