Highly efficient Trisodium citrate vibrating fluidized bed dryer

Suitable for chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, drying, cooling and other operations.

Technical Feature

  • New
  • Fluid Bed Drying Equipment
  • Jiangsu, China (Mainland)
  • Haomai
  • 380V/50Hz, 415V/50Hz/60Hz
  • 7.5Kw
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$11~118

PRIMARY PARAMETERS

Condition
New
Type
Fluid Bed Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Haomai
Voltage
380V/50Hz, 415V/50Hz/60Hz
Power(W)
7.5Kw
Dimension(L*W*H)
6000*1150*650mm
Weight
4.5T
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Area of fluid bed dryer
2.7
Temperature Range Of Inlet Air
70-140u00b0c
Temperature of outlet Air
40-70u00b0c
Capacity of vapor moisture
80-100
Model
ZDS41-6
Power Kw
1.5*2
Fuel
Gas, Coal, conduct oil
Fabricating Material
SS304, SS316
Control system
PLC+Touch Screen
With cooling section
1-2m

DETAIL DESCRIPTION

Product Description

Product Application

Suitable for chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, drying, cooling and other operations. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, radish, soybean meal, lees, seeds, slag, sugar and so on.

Model
Area of fluidized-bed(m²)
Temperature of air inlet (°C)
Temperature of air outlet (°C)
Capacity to evaporate
moisture (kg/h)
Vibration motor
   Model                 Power (Kw)
ZLG3×0.30
0.9
70-140
40-70
20~35
YED10-6
0.75x2
ZLG4.5×0.30
1.35
70-140
40-70
35~50
YED10-6
0.75x2
ZLG4.5×0.45
2.025
70-140
40-70
50~70
YED16-6
1.1x2
ZLG4.5×0.60
2.7
70-140
40-70
70~90
YED16-6
1.1x2
ZLG6×0.45
2.7
70-140
40-70
80~100
YED20-6
1.5x2
ZLG6×0.60
3.6
70-140
40-70
100~130
YED20-6
1.5x2
ZLG6×0.75
4.5
70-140
40-70
120~140
YED20-6
1.5x2
ZLG6×0.9
5.4
70-140
40-70
140~170
YED20-6
1.5x2
ZLG7.5×0.60
4.5
70-140
40-70
130~150
YED30-6
2.2x2
ZLG7.5×0.75
5.625
70-140
40-70
150~180
YED30-6
2.2x2
ZLG7.5×0.90
6.75
70-140
40-70
160~210
YED30-6
2.2x2
ZLG7.5×1.2
9
70-140
40-70
200~260
YED40-6
3.0x2

Main Features

1, The vibration source drived by vibration motor, smooth operation, easy maintenance, low noise, long life.
2, Fluidized symmetry, no dead space and blowing phenomenon, you can get a uniform drying, cooling products.
3, Adjustable good, wide face to adapt. Material layer thickness and in the machine moving speed and full amplitude changes, can achieve stepless adjustment.
4, The damage to the surface of the material is small, can be used for fragile material drying; When dry irregular particles it does not affect the work effect.
5, The use of fully enclosed structure, effectively prevent the material and air cross-contamination, operating environment is very clean.
6, Mechanical efficiency and high thermal efficiency, energy-saving effect is better than the average drying device, it can save 30 to 60% energy.
Certifications
Detailed Images

Machine Parts

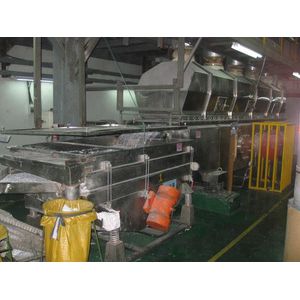

Name: The lower part

Brand: Haomai

Original: Jiangsu, China

Sturdy construction with horizontal support rods, strong support rods, diagonal support rods.

Main Features

Name: Peak shape hole perforation plate
Brand: Haomai
Original: Jiangsu, China
Peak shape hole perforation vibrating plate

Machine Parts

Name: vibrating plate
Brand: Haomai
Original: Jiangsu, China
Porforated vibrating plate covered with Meshes.

Main Features

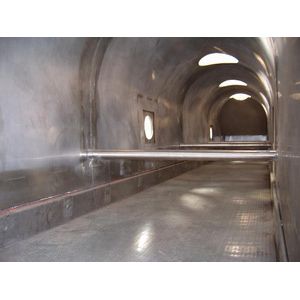

Name: inner surface covered with FRP
Brand: Haomai
Original: Jiangsu
The fluid bed upper and lower part of chamber could covered with FRP for drying Strong acid, strong alkali, strong corrosive material...
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
11.8 (L) * 2.13 (W) * 2.18 (H)
Weight
7T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
11.8(L) * 2.13 (W) * 2.18 (H)
Weight
7-9 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
